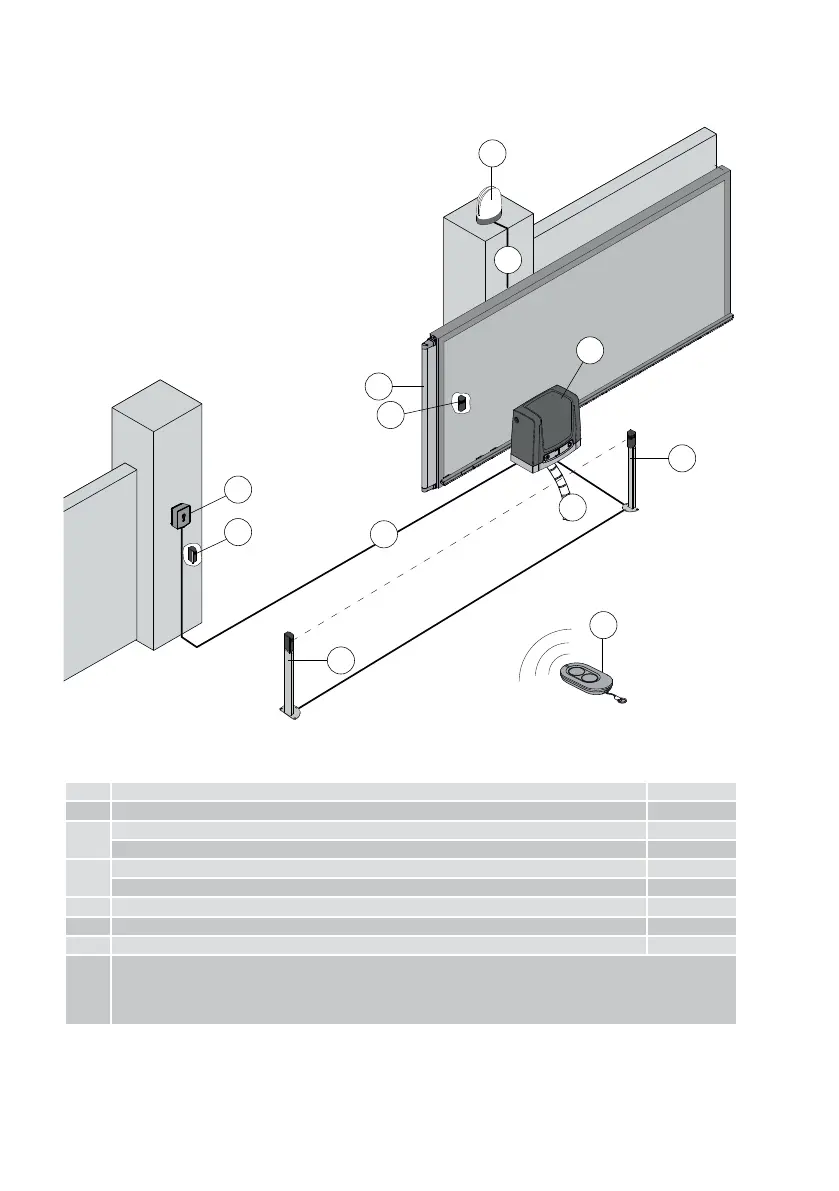

2. Standard installation
Rif. Description Cable
1 Remote control /
2
Flashing light 2 x 1 mm²
Antenna (integrated into the flashing light) coaxial 58 Ω
3
Key selector switch 4 x 0,5mm²
Digital combination wireless keypad /
4 Photocells 4 x 0,5 mm²
5 Actuator NEOS with control panel 3G x 1,5 mm²
6 Safety edge 2 x 0,5 mm²
A
Connect the power supply to a type-approved omnipolar switch, with a contact opening distance of at
least 3mm (not supplied).
The connection to the mains must follow an independent path, separate from the connections to the
control and safety devices.
3
1
2
4
A
C
B
4
6
4
B
5
4
