6
IP1854EN - 2013-03-01

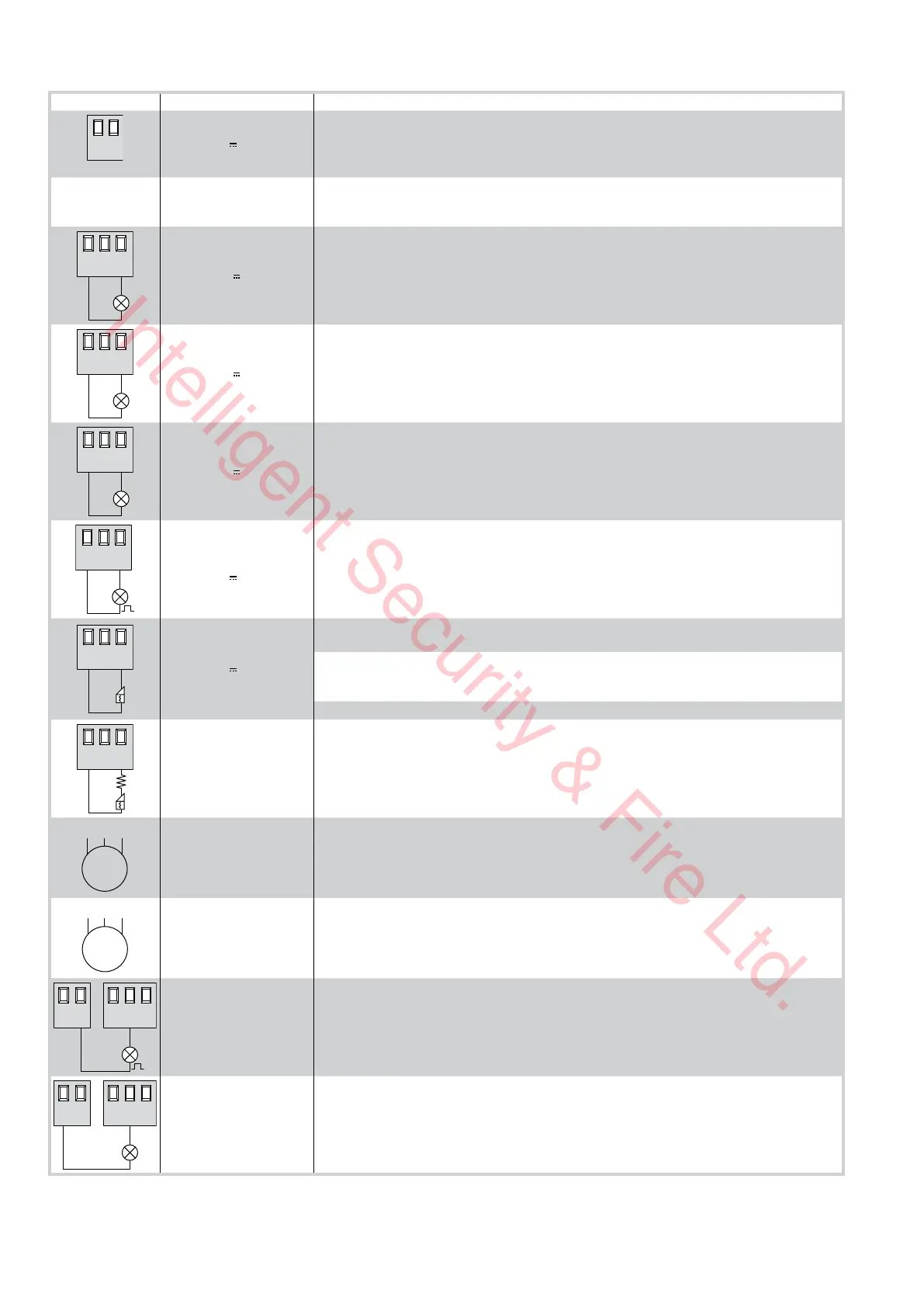

5. Output and accessories
Output Value - Accessories Description
4901 23
+-
24 V 0,5 A
Accessories power supply.
Power supply output for external accessories, including automation status lamp.
NOTE: the maximum absorption of 0.5 A corresponds to the sum of all terminals 1.
AUX
SOFA1-SOFA2
GOPAV
The control panel has two spaces for coupling board, type radio receivers, magnetic loops etc.
The coupling board working mode is selected by DIP1.
WARNING: the plug-in cards must be inserted and removed with the power supply disconnected.
11 ...
1
24 V 3 W
Automation open lamp.
Only with limit switch 0-11 (NC) connected and in one motor mode (jumper OM=OFF) will the lamp
extinguish when automation is closed.
12 ...
1
24 V 3 W
Automation closed lamp.
Only with limit switch 0-12 (NC) connected and in one motor mode (jumper OM=OFF) will the lamp
extinguish when automation is open.
13 ...
1
24 V 3 W
Automation open lamp.
A lamp lights up that extinguishes only when automation is closed.
14 ...
0
LAMPH
24 V 50 W
Flashing light.
Activated during opening and closing operations.
15 ...
0
24 V 1,2 A
24 V electric block.
Activated upon every opening command.
24 V electric motor brake.
With JR6=OFF, OM=OFF and DIP5=ON, the output is active for the entire duration of the opening
or closing motion.
24 V electric lock. With EO=OFF the output is on and the automation is closed.
15 ...
0
12 V~ 15 W
12 V electric lock.
Connect the supplied 8.2 Ω / 5 W resistance in series. Activated upon every opening command
M1
UVW
230 V~ 2,5 A
120 V (LOGICMJ)
Motor 1 (M1).
Terminal W must be connected to the common motor phase connection. The condenser must be
connected between the U and V phases.
Note: if the direction of rotation of the motor is incorrect for the desired direction of movement,
swap the U and V phases.
M2
XYZ
230 V~ 2,5 A
120 V (LOGICMJ)
Motor 2 (M2).
Terminal Z must be connected to the common motor phase connection. The condenser must be
connected between the X and Y phases.
Note: if the direction of rotation of the motor is incorrect for the desired direction of movement,
swap the X and Y phases.
NL
W... ...
LAMP
230 V~ 100 W
120 V~ (LOGICMJ)
Flashing light.
Activated during opening and closing operations.
NL
X... ...
230 V~ 100 W
120 V~ (LOGICMJ)
Courtesy light.
In one motor mode only (jumper OM=OFF and no motor connected to terminals X-Z-Y), a courtesy
light may be connected, which activates for 180 s each time a total or partial opening command
or closing command is received.
