DITEC RO2H User Manual

GB
7

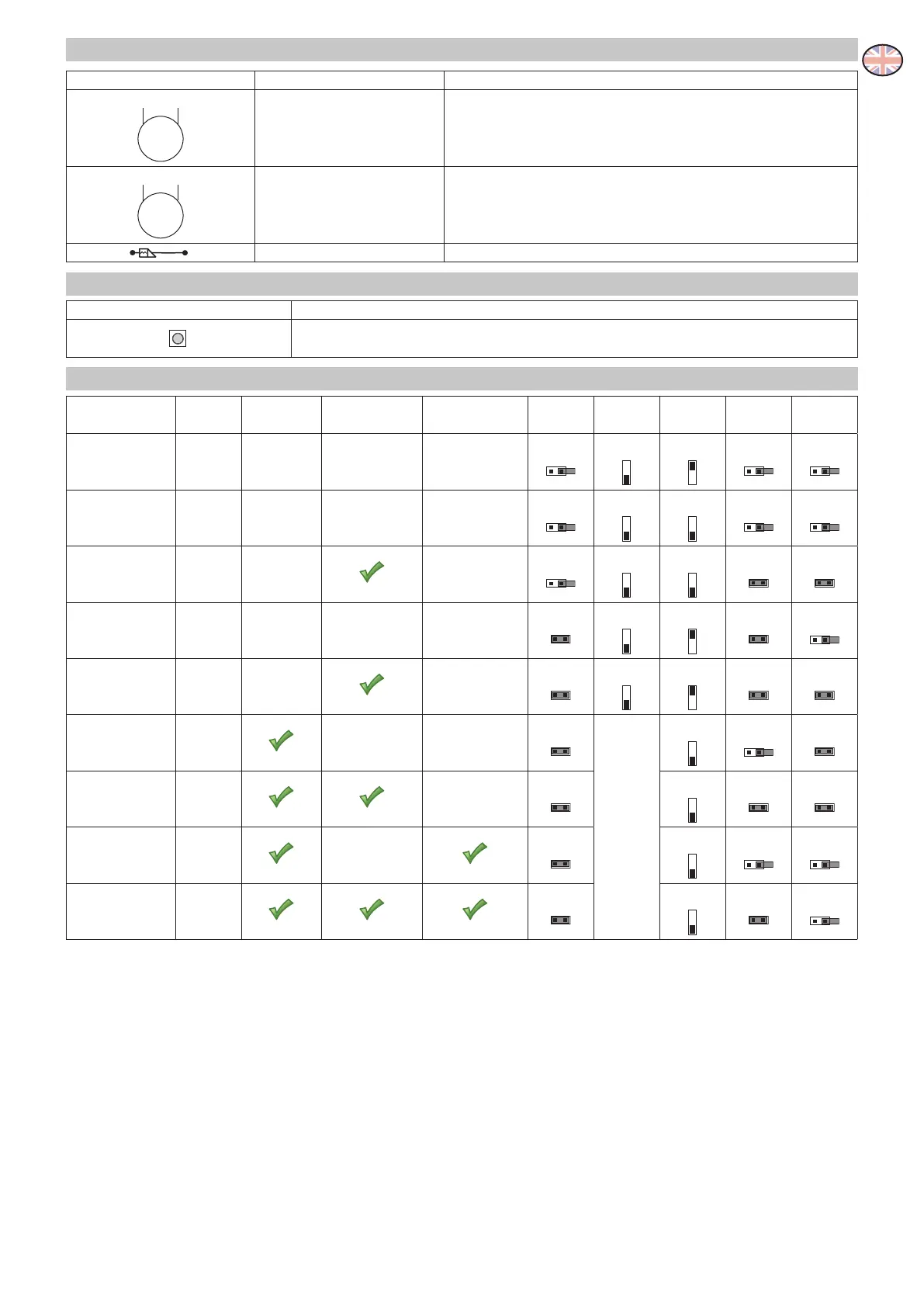

RO2H - IP1918
1.2 Output and accessories
Output Value Description
M1
33 31
12 V= / 1,4 A
Motor 1 (M1).
Connect with 0.5 mm² / max. 3 m power supply cables.
M2
36 34
12 V= / 1,4 A
Motor 2 (M2).
Connect with 0.5 mm² / max. 3 m power supply cables.
-LK +LK 12 V= / 4 A 12 V electric block. (Only RADIUSLOK)
1.3 Adjustments
Button Description
PRG Radio programming button.
1.4 Settings
Application Wings Overlapping Step-by-step
[*]
Closure one
wing at a time
OM DIP1 DIP2 S1 S2
OLLYE 1
OFF
OFF ON
OFF OFF
RADIUS 1
OFF
OFF OFF
OFF OFF
RADIUS 1
OFF
OFF OFF
ON ON
RADIUS 2
ON
OFF ON
ON OFF
RADIUS 2
ON
OFF ON
ON ON
RADIUS 2
ON
See paragraph 1.5
OFF
OFF ON
RADIUS 2
ON
OFF
ON ON
RADIUS 2
ON
OFF
OFF OFF
RADIUS 2
ON
OFF
ON OFF
[*]Thestep-by-stepoperationmodies:
- the opening command (0-3 and radio CH1) in the open-stop-open sequence.
- the closing command (0-4 and radio CH2) in the close-stop-close sequence.
