4 Operation
November 2009 19
Section 4 Operating Instructions
4.1 Introduction
This section contains a functional description of each switch, control, indicator and
connector located on the top panel of the UHF/AM transceiver FSG 7016, together
with the transmit key and TEST key on the left side, and operating instructions.
4.2 Operator's Switches, Controls and Indicators
A view of the transceiver FSG 7016 is given on the last page of this Manual. Please
fold out the back flap when reading the operating instructions. Each number of a
control, switch, etc. corresponds to the number of the control, switch, etc. given
below.
:

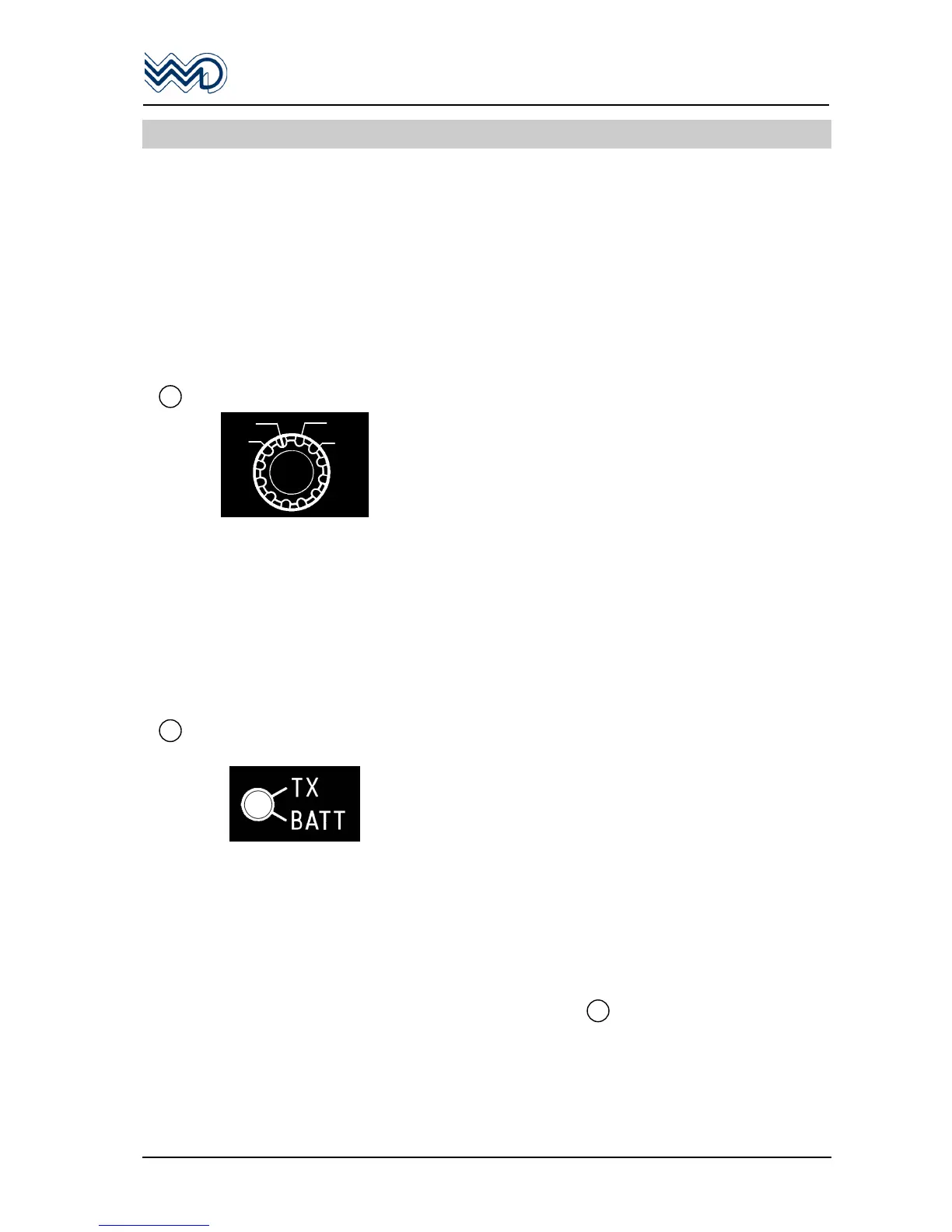

A four-position rotary switch which controls the
application of the 12 Vdc battery power, the Squelch,
and the voice activated transmission function (VOX).
OFF : Radio is turned OFF, 12 Vdc supply of
connected accessory is switched OFF.
ON : Radio is switched ON, Squelch is ON,
12 Vdc supply of connected accessory is
switched ON. No RX noise is audible.
SQ OFF : Radio is switched ON, Squelch is OFF,
12 Vdc supply of connected accessory is
switched ON. RX noise is audible.
1
MODE SWITCH
SQ OFF
VOX
ON
OFF
VOX : Radio is switched ON, Squelch is ON,
12 Vdc supply of connected accessory is
switched ON. Voice activated transmission
circuit (VOX) is active.
2
TX BATT LED
Indicator
:
• A red LED which is ON when the built-in or
accessory Push-To-Talk (PTT) key is depressed,
and the transceiver is operated in the transmit
mode. When the PTT key is released, the TX red
LED goes OFF, and the transceiver is operated in
the receive mode.
• A red LED which is ON when the radio is operated
in VOX Mode, the operator is talking into an
external microphone, the mike sensitivity is adjusted
correctly, and the transceiver is operating in the
transmit mode. When the operator stops talking, the
TX red LED goes OFF, and the transceiver is
operated in the receive mode.
• A red LED which is flashing in a certain sequence
when side TEST key
9
is depressed (refer to
paragraph 2.4).
• A red LED which is ON when either PTT key is
pressed or voice activated transmission takes
place; and starts flashing in the battery status
sequence during that period, when the side TEST
key is pressed simultaneously.
