Dittel 7016 - Section 3, Windows Programming Using Programming Software V2.0; Introduction; Hard- and Software Requirements; Installation Procedure

FSG 7016
3 Programming
November 2009 15
Section 3 Programming using Software V2.0 (A/N F10173)
3.1 Introduction
IMPORTANT!
• Each radio FSG 7016 leaves the factory with frequencies and RF
output power programmed for testing purposes. Therefore it is
absolutely necessary to program your radio first before using.
3.2 Hard- and Software Requirements
To use our FSG7016 Programming Centre Software the following hardware is
required:
• a standard PC with Intel or AMD Processor running WINDOWS 98, NT, 2000 or
XP,
• an available serial port (RS-232),
• a CD-ROM drive,
• Interface cable to PC computer (RS-232), Article No. F10166
• FSG7016 Programming Centre Software, CD-ROM, Article No. F10173
3.3 Installation Procedure
• Create a directory, e.g. C:\programs\fsg7016.
• Unzip the file FSG7016.zip from CD-ROM into this directory (using e.g. WinZip).
• Create a link (contains the associated WD icon) or the desktop.
• Connect DITTEL interface cable F10166 to your computer’s COM port to be
used, and to FSG 7016 10-pole accessory socket.
• Make sure the battery pack of the radio is charged (refer to paragraph 2.4,
Battery Test).
• Switch ON the FSG 7016 radio.
• Double click on "FSG7016.exe", or on the desktop icon to start the program.

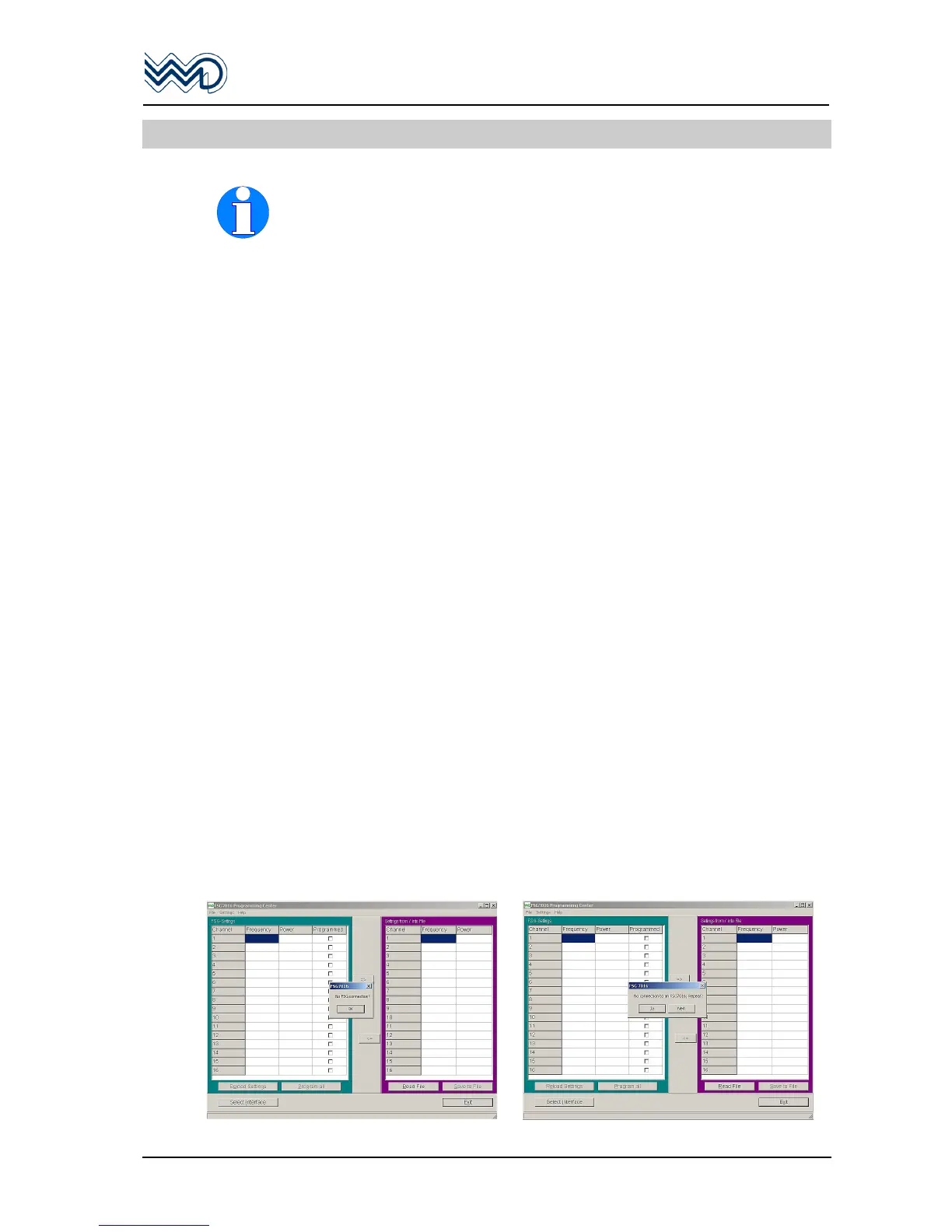

Note:
• The program is ex factory pre-set to use COM 1.
• Should COM 2 or COM 3 or COM 4 to be used, this COM 1 pre-setting may be
changed after the initial “No FSG connection” warning window appears:
• Click “OK” to confirm, this will bring-up the next warning window: “No connection
to an FSG 7016; Repeat?”
• To confirm click “Nein/No”. This closes this window.
• Select the new COM port through the menu steps “Settings” and
“Communication”, then select the correct COM port, confirm with “OK”.
