MAJOR COMPONENT DESCRIPTION
26

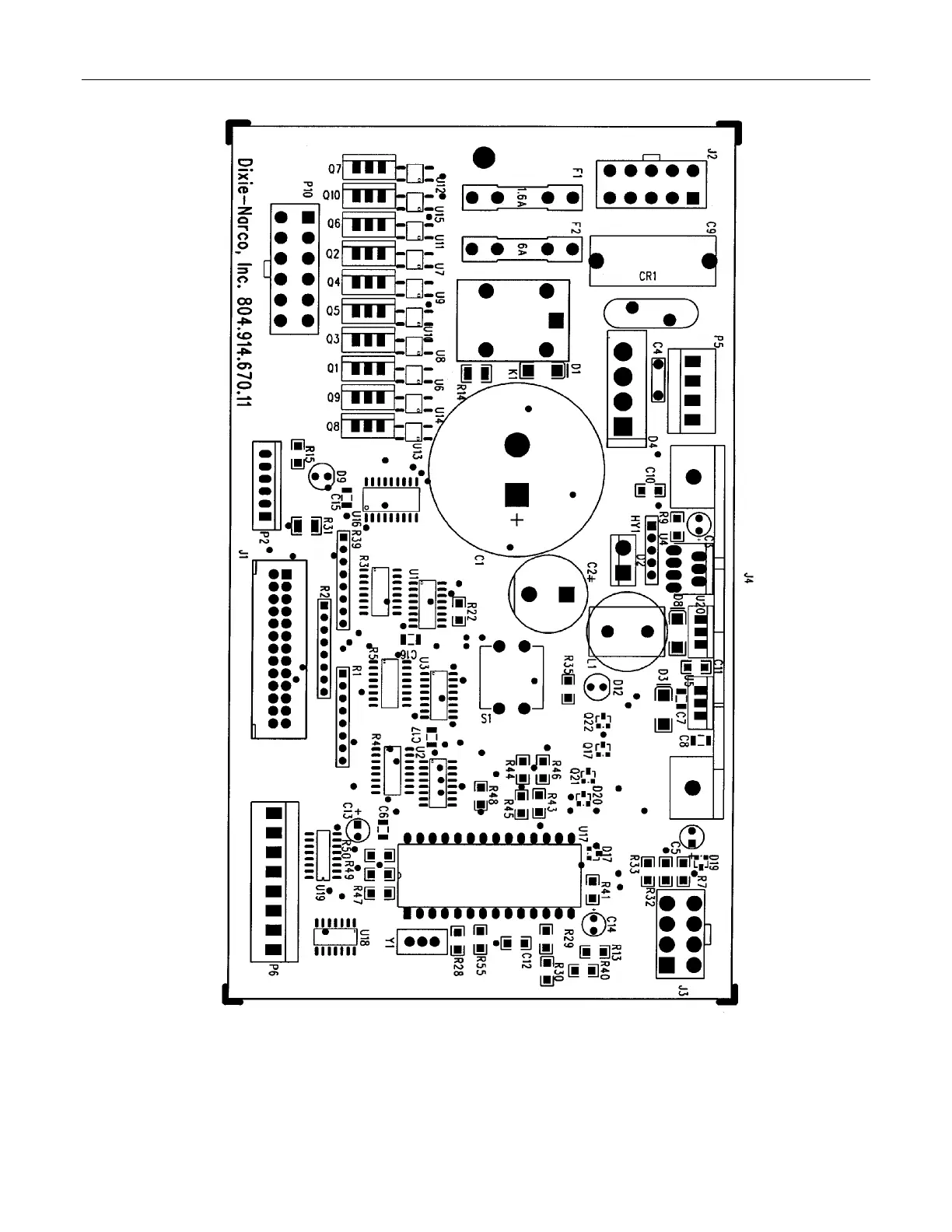

HT2 MACHINE CONTROLLER
J2 Board Power to Transformer
P10 Motor Extension Harness (connection)
J3 Board to Board Interface (Machine Controller to Universal Controller)
J1 Cabinet Extension Harness
P2 & P6 Temp Sensor and Relay Extension
To Next Page
