Dixie Narco P Series - SBC CONTROL BOARD DETAILS

MAJOR COMPONENT DESCRIPTION P-SERIES
Page 33 of 78

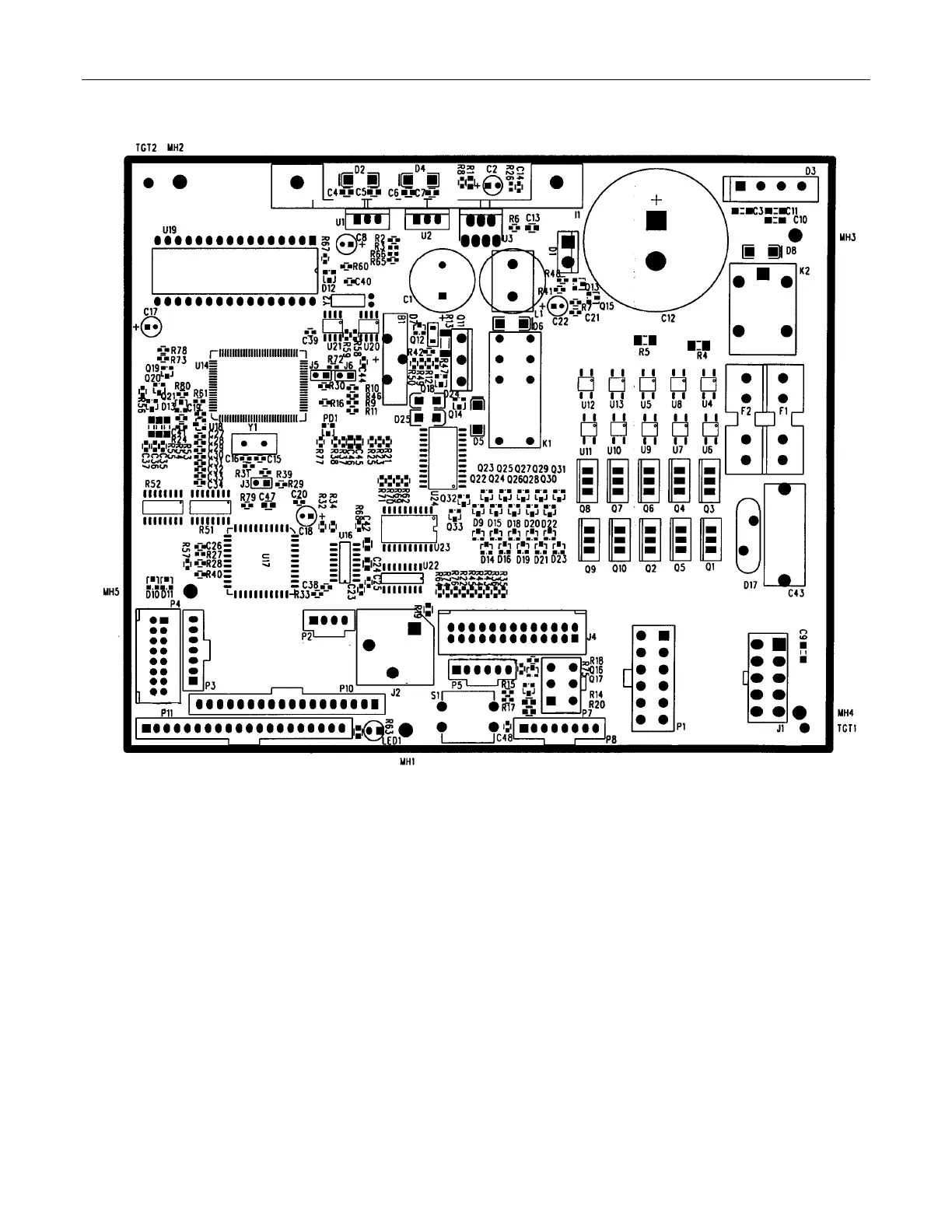

SBC CONTROL BOARD
P1 Motor
P2 Secondary DEX
P3 Display
P4 Select Switches
P5 Temp Sensor
P7 MDB
P8 Energy Management
P10 Sold Out LED’s
P11 Ready to Vend
J1 AC Power
J2 DEX
J4 Cam / Sold Out
B1 Battery
S1 Service Switch
