Dixie Narco P Series - CABINET & VEND MECHANISM COMPONENTS

PARTS LIST P-SERIES
Page 64 of 78

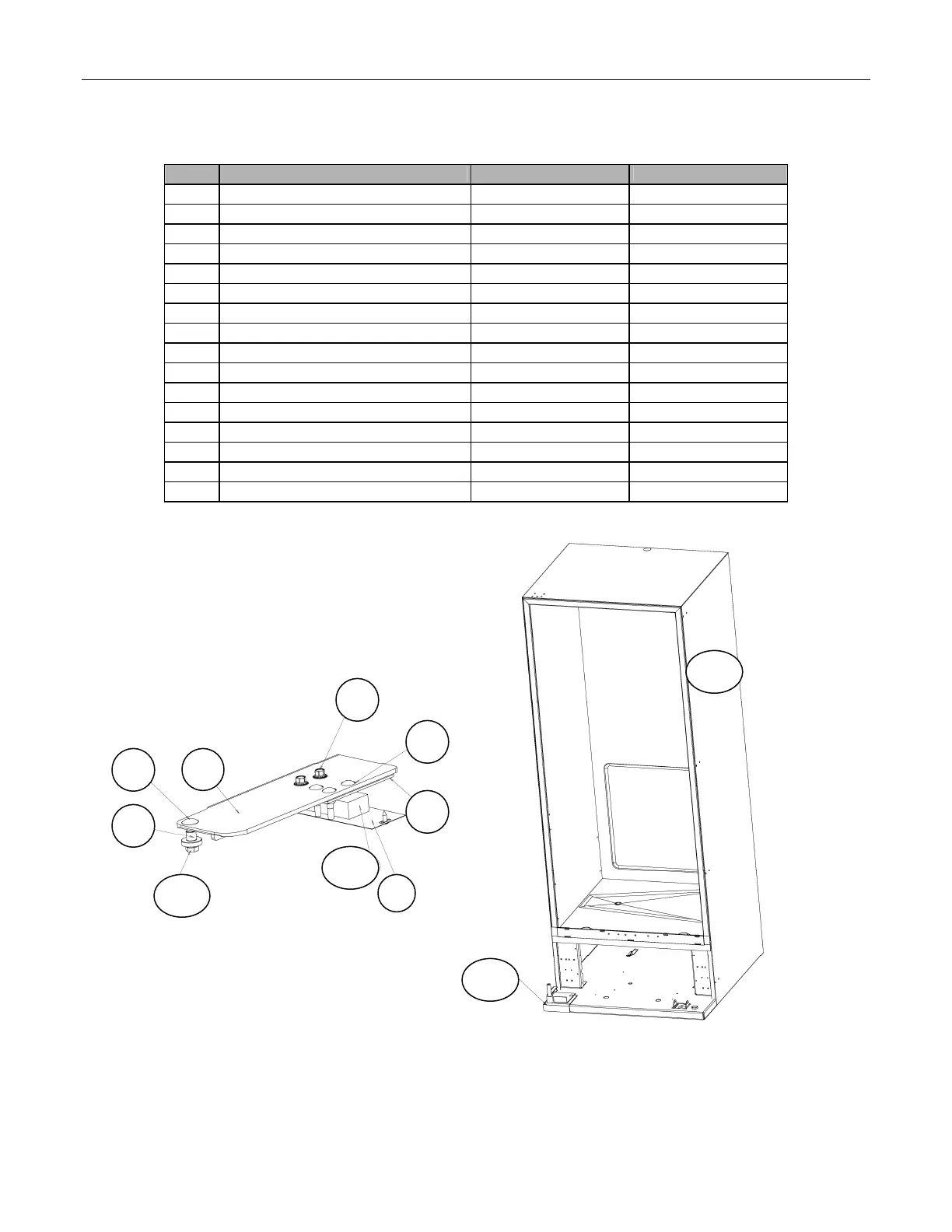

CABINET AND VEND MECHANISM
(Section 1)
ITEM PART DESCRIPTION
DN552P DN756P
1 Cover, Hinge Pocket
631,051,07x.x3 169,000,13x.x3
2 Weld assembly Top Hinge (Main Door)
631,051,12x.x3 Same
3 Kit, Door Hinge
639,050,70x.x3 Same
4 Hinge, Spacer
169,000,15x.x3 Same
5 Bearing, Hinge – Pin less
805,300,42x.x1 Same
6 Bolt, Carriage ¼ - 20 x 1 ¼ (3)
900,201,23x.x1 Same
7 Bolt, Carriage 5/16 – 18 x 1 ¼ (1)
900,201,85x.x1 Same
8 Screw, Phil Pan 8 – 18 x ½ (1)
900,301,50x.x1 Same
9 Screw, Hex Tap 14-20 x 1 (2)
900,301,73x.x1 Same
10 Base, Door Stop Plate
631,051,08x.x3 Same
11 Hex Nut ¼ - 20
900,800,67x.x1 Same
12 Nut, Hex Jam 5/16 - 18
900,801,02x.x1 Same
13 Block, Foam
903,300,77x.x1 Same
14 Hinge, Bottom (Main Door)
631,152,40x.x3 Same
15 Stack Supports (Not Shown)
639,070,26x.x3 Same
16 Foam Cabinet Assembly
640,060,20x.x3 639,060,20x.x3
1
2
4
5
6
7
9
12
13
14
16
Part numbers & descriptions are subject to change with out notice.
NA = Not applicable
