Dixie Narco P Series - Cabinet and Vend Mechanism

PARTS LIST P-SERIES
Page 65 of 78

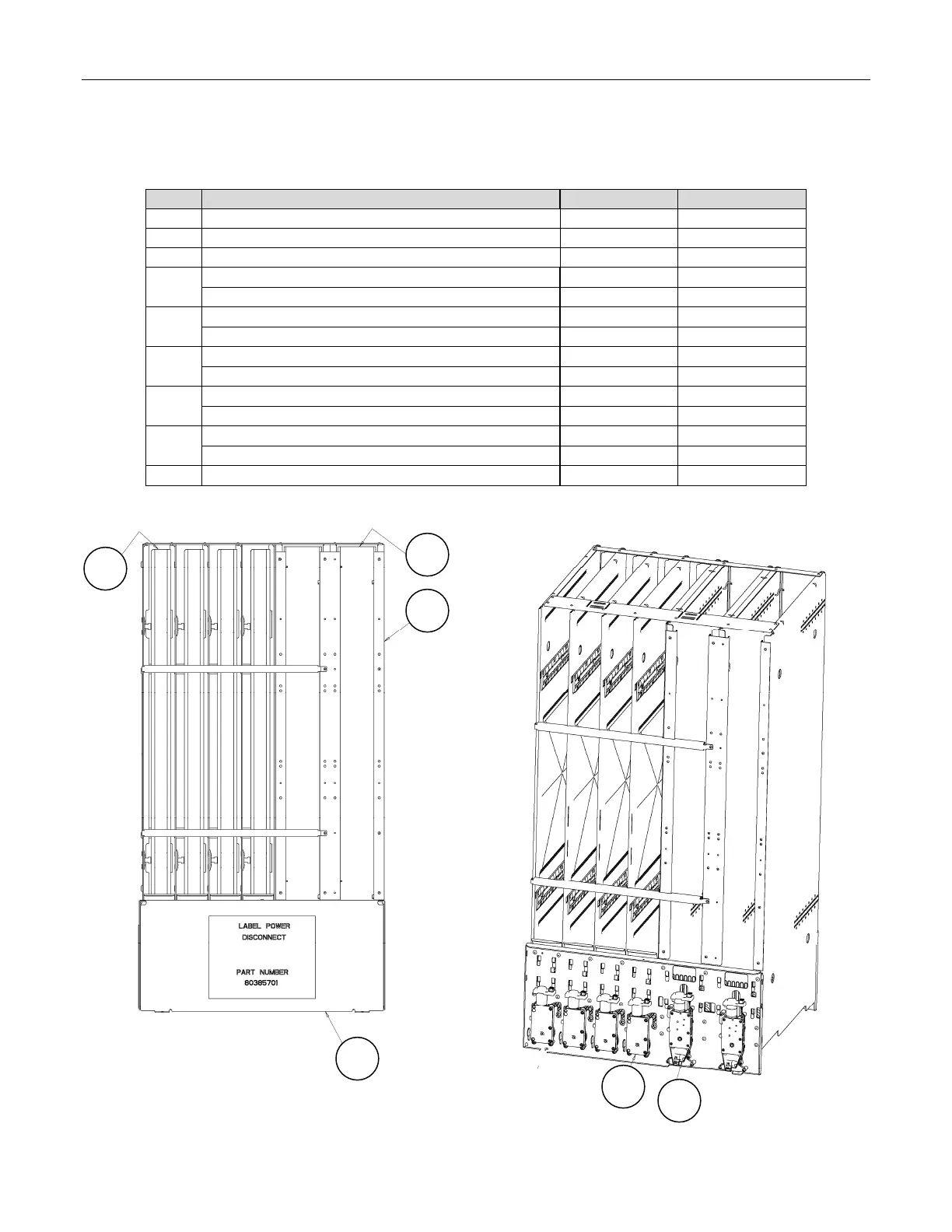

CABINET AND VEND MECHANISM
(Section 2)
ITEM DESCRIPTION
DN552P DN756P
1 Assembly Rear Spacer Narrow 639,075,00x.x3 Same
2 Vend Motor - Narrow Column 804,501,23x.x1 Same
3 Vend Motor - Wide Column 640,070,40x.x3 Same
4 Vend Motor Cover 640,070,06x.x3 639,171,80x.x3
5 Assembly Rear Spacer Wide 639,071,70x.x3 Same
6
Stack Assembly 6 Column 640,070,90x.x3 NA
Stack Assembly 8 Column NA 639,071,30x.x3
7 Screw, Phil Pan 8-32x1 (12) 800,303,86x.x1 Same
8 Loading Rack (run 7644 & higher) 639,071,90x.x3 Same
Loading Rack (1 thru 93–6990 & 1 thru 53-7631) NA
Loading Rack (runs 6922 & 6925) 640,070,50x.x3 NA
9A Bracket, Right – Loading Rack (run 7644 & higher)
9B Bracket, Left – Loading Rack (run 7644 & higher)
10 Latch, Loading Rack (run 7644 & higher)
