Dixie Narco P Series - Page 58

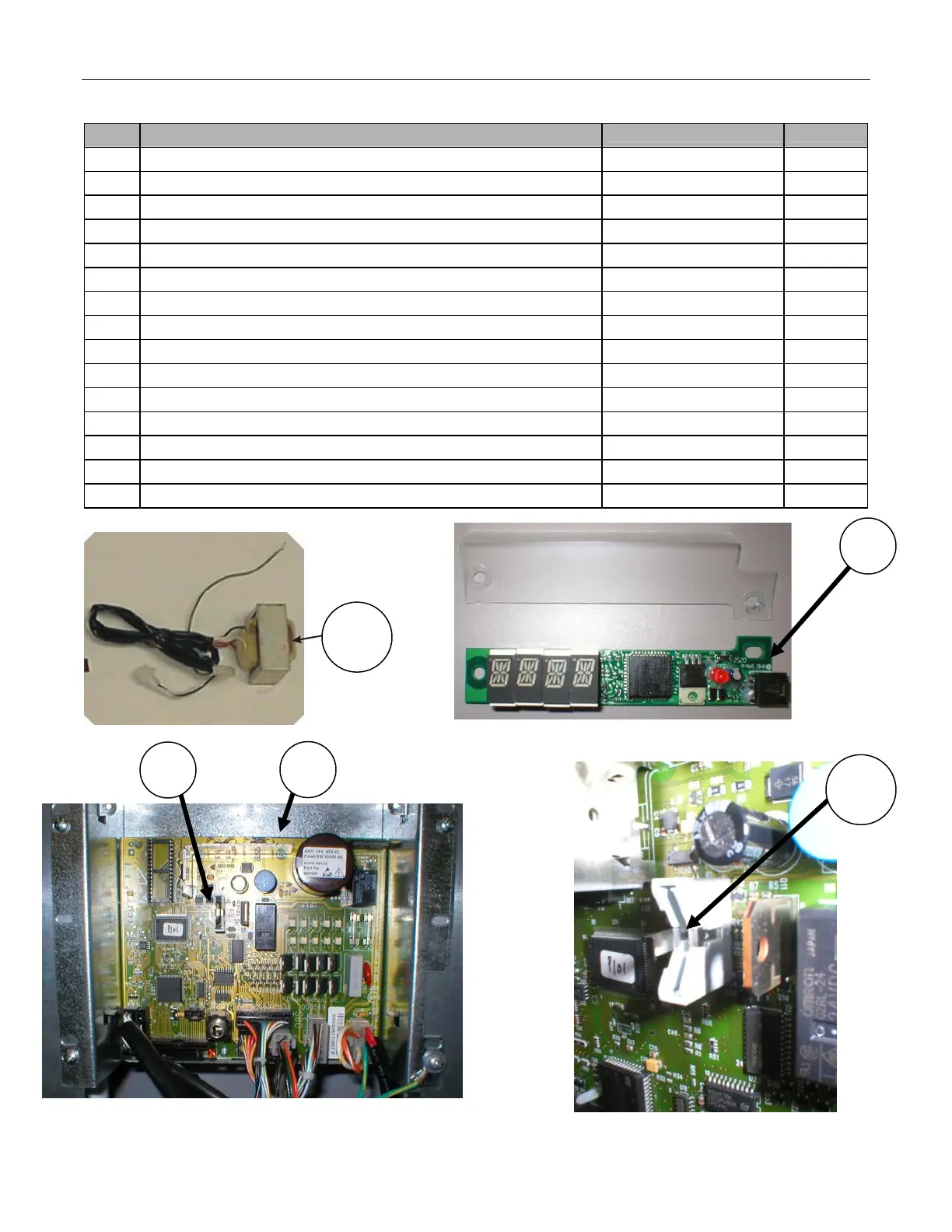

PARTS LIST P-SERIES
Page 58 of 78
ELECTRONIC COMPONENTS
ITEM PART DESCRIPTION
DN552P DN756P
1 Control Board Assembly SBC
640,010,10x.x3 Same
2 Display Board 14 Segment
804,910,96x.x1 Same
3 Transformer - Domestic
804,923,31x.x1 Same
Transformer - Export
804,923,32x.x1 Same
4 Fuse 1.6 Amp (F1) SBC
804,868,03x.x1 Same
5 Fuse, 6 Amp Fast Acting (F2) SBC
804,910,93x.x1 Same
6 Controller Cover - Not Shown
801,306,16x.x1 Same
7 Label, Fuse - Not Shown
803,857,06x.x1 Same
8 SBC Eprom Control Board
804,920,87x.x1 Same
9 Rain Curtain, Control Board - Not Shown
801,904,23x.x1 Same
10 Battery, 3V Lithium (CR2032) - Not Shown
804,920,45x.x1 Same
11 Fuse 1.6 Amp 5X20mm AC Distribution Box (Domestic)
804,800,71x.x1 Same
Fuse 1 Amp 5X20mm AC Distribution Box (Export)
804,914,23x.x1 Same
12 Vend Sensor Assembly
804,921,92x.x1 Same
13 Standoff
801,904,21x.x1 Same
10
3
1
10
2
Part numbers & descriptions are subject to change with out notice.
