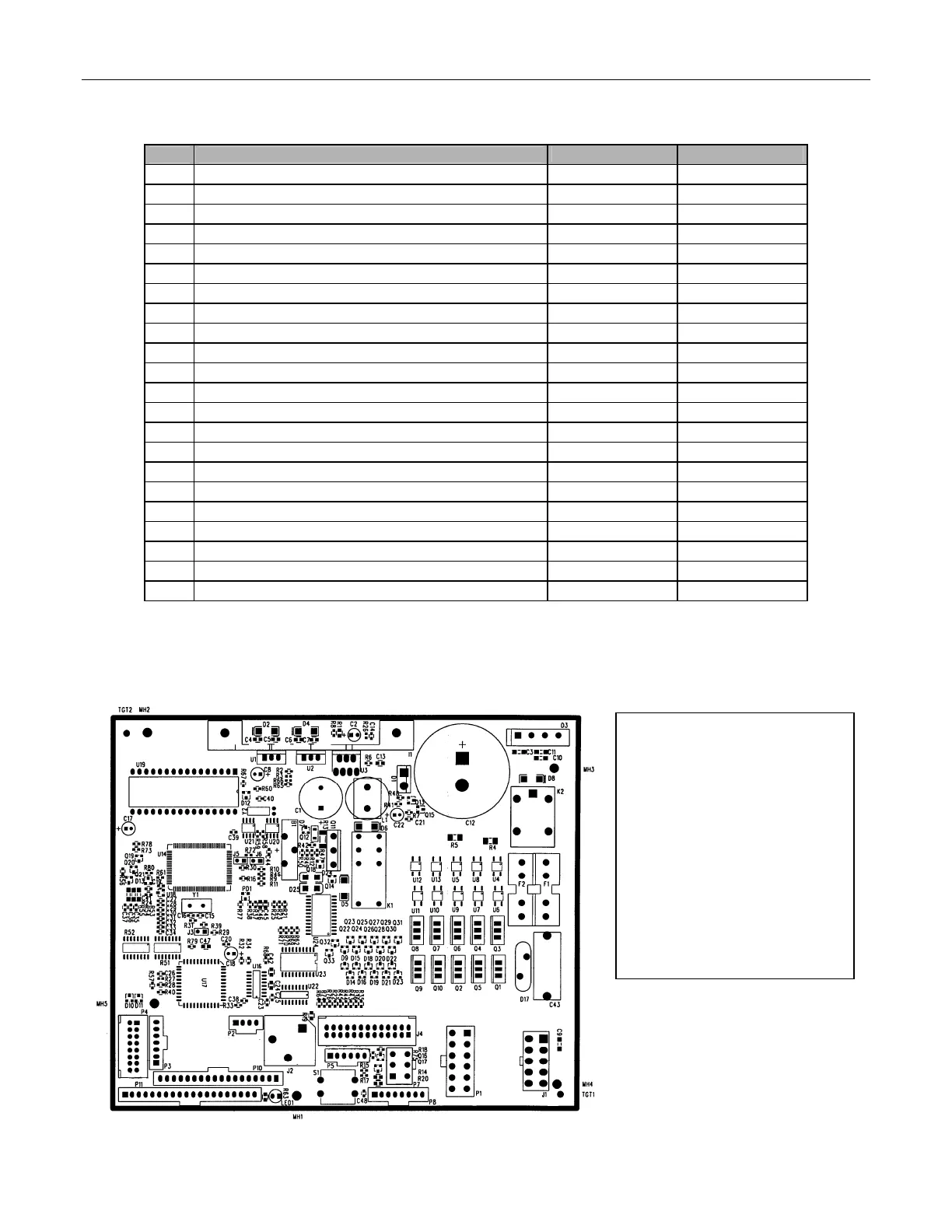

PARTS LIST P-SERIES
Page 61 of 78
HARNESSING
Single Board (SBC)
ITEM PART DESCRIPTION
DN552P DN756P
1 Motor Harness (6 Motor Stack)
804,920,99x.x1 NA
Motor Harness (8 Motor Stack)
NA 000595
2 Board Power Harness (includes transformer) J1
804,922,14x.x1 Same
3 Harness, P Series 44” Door
000110 Same
4 Harness, MDB 25”
804,920,83x.x1 Same
5A Harness, Membrane – 7 Select
804,921,13x.x1 Same
5B Harness, Membrane – 8 Select
NA 804,912,86x.x1
6 66” DEX Harness
804,907,83x.x1 Same
7 Display Harness (P3 to display board)
804,919,57x.x1 Same
8 Secondary DEX Harness
804,913,97x.x1 Same
9 MDB (P7)
804,919,58x.x1 Same
10 Harness, Relay Power Distribution
804,920,96x.x1 Same
11 Harness, Power Distribution (In)
804,920,98x.x1 804,921,03x.x1
12 Harness, Power Distribution (Out)
804,920,97x.x1 Same
13 Harness, AC Distribution
804,921,15x.x1 Same
14 Harness, AC Dist Extended
000113 Same
15 Harness, Door Switch Extended
804,921,01x.x1 Same
16 Power cord, Detachable
804,917,28x.x1 Same
Power cord, Schuko Export
804,923,48x.x1 Same
17 Evaporator Fan Harness - 3
804,921,73x.x1 Same
18 Harness, Transformer Fuse Holder
804,921,54x.x1 Same
Part numbers & descriptions are subject to change with out notice.
NA = Not applicable
P1 – Motor
P2 - Secondary DEX
P3 – Display
P4 - Select Switches
P5 - Temp Sensor
P7 – MDB
P8 - Energy Management
P10 – Sold Out LED’s
P11 – Ready to Vend
J1 – AC Power
J2 – DEX
J4 – Cam/Sold Out
B1 – Battery
S1 – Service Switch
