Dixie Narco P Series - Page 70

PARTS LIST P-SERIES
Page 70 of 78

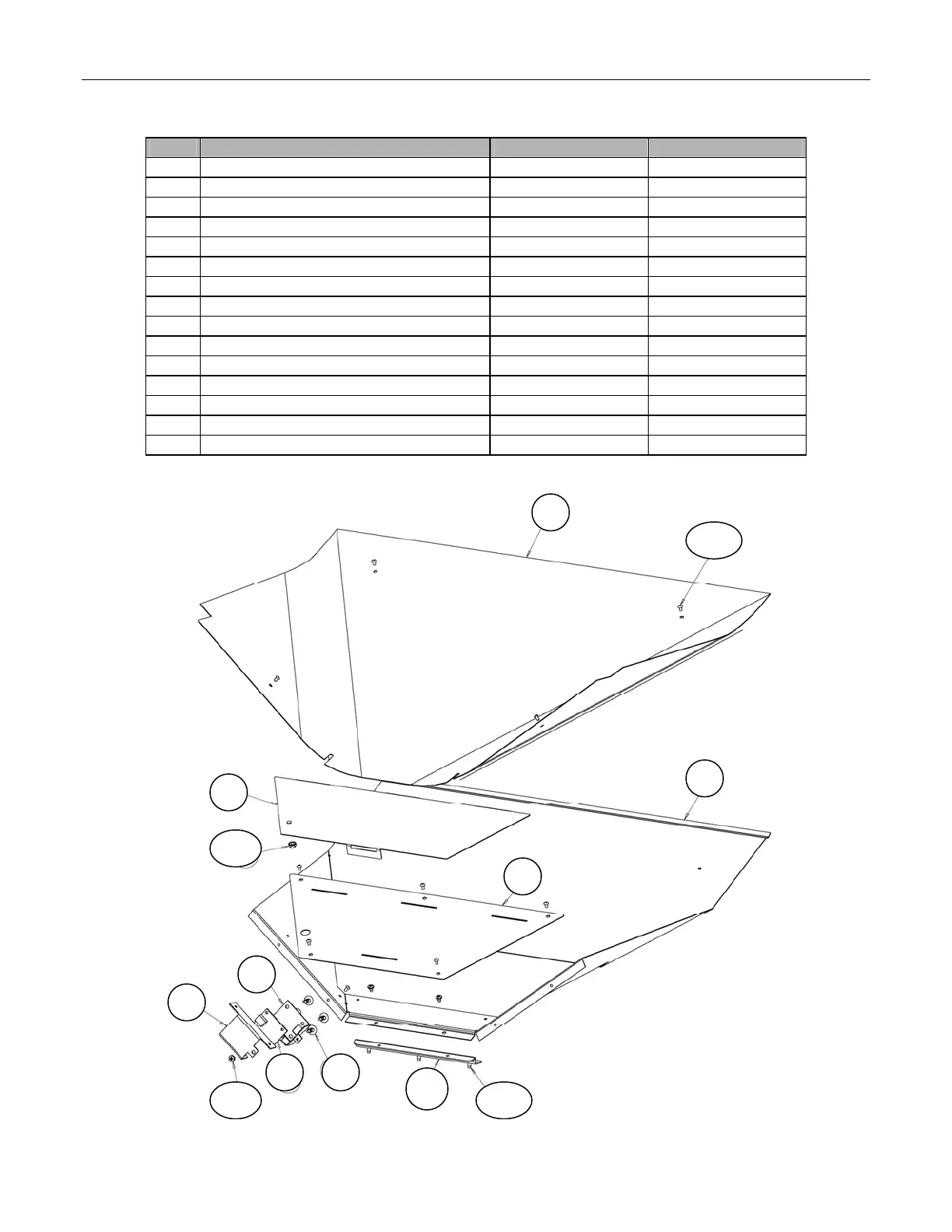

CHUTE ASSEMBLY
ITEM PART DESCRIPTION
DN552P DN756P
Chute Assembly
640,070,30x.x3 639,071,10x.x3
1 Chute
640,070,09x.x3 639,070,51x.x3
2 Liner, Chute
640,070,13x.x3 639,070,56x.x3
3 Sensor Plate Assembly
639,070,34x.x3
4 Sensor Support Plate
639,070,33x.x3
5 Bracket, Chute (prior to 7644)
000658 NA
6 Housing Vend Sensor Board
639,070,41x.x3 Same
7 Board, Vend Sensor
804,921,92x.x1 Same
8 Cover, Sensor Housing
639,070,39x.x3 Same
9 Standoff
801,904,55x.x1 Same
10 Screw, 8-32 x 3/8 Phil Pan Type 1
900,301,56x.x1 NA
11 Screw, 8-32 Phil Pan, Swageform
900,301,97x.x1 Same
12 Hex Nut #8-32
900,800,50x.x1 NA
13 Rivet 1/8 Steel Zinc Plate
901,100,61x.x1 Same
14 Jumper, Vend Sensor Board
804,922,33x.x1 Same
Note: On DN552P Venders prior to 7644, replace entire chute assembly if any individual part fails.
1
2
13
3
4
12
6
8
9
7
11
10
5
Part numbers & descriptions are subject to change with out notice.
NA = Not applicable
