dji Matrice 100 User Manual

8
©
2015 DJI. All Rights Reserved.
DJI MATRICE 100 User Manual
Curved Fastener: Fix on the inner arm slot.
0° Fastener: Fix on the outer arm slot so that the propeller rotation plane is perfectly horizontal.
3° Fastener: Fix on the outer arm slot so that the propeller rotation plane is at a 3° incline. It is
recommended to use the 3° fasteners for a better ight experience.

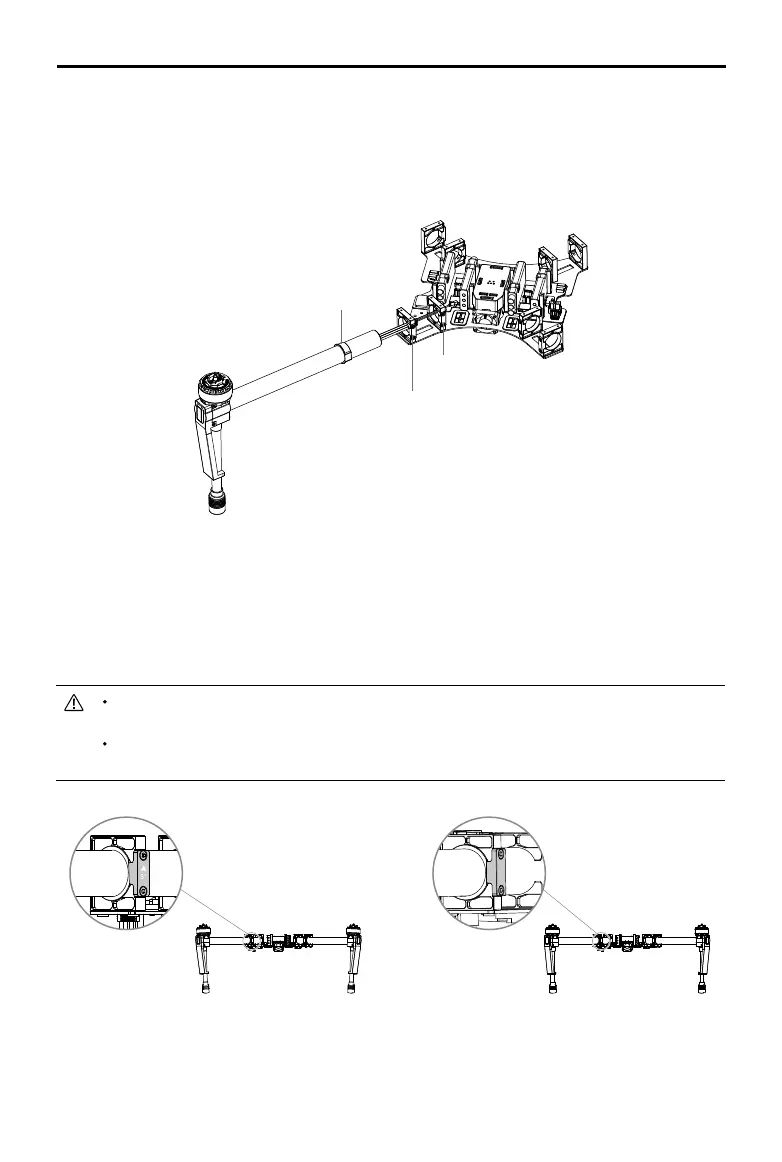

1) Loosen the four M2.5x5 screws on the curved fastener and the 3° fastener on each of the frame arms.
2) Insert each frame arm into the outer and inner arm slots successively until the clamp ring reaches
the outer arm slot.
3) Rotate the frame arm so that the clamp ring fits perfectly into the side of the 3° fastener. Then
tighten the four screws to x the curved fastener and the 3° fastener in place. Ensure the arrow on
the 3° fastener is pointing upwards.
If you choose to use the 0° fasteners, remove the 3° fasteners from the arm slots rst. Ensure
that all propeller rotation planes are perfectly horizontal after mounting the 0° fasteners.
Do NOT mix up the 0° fasteners and the 3° fasteners. Ensure that the four fasteners on the
outer arm slots are the same.
Clamp Ring
Inner Arm Slot
Outer Arm Slot
The 3° Fastener (with marking) The 0° Fastener

dji Matrice 100 Specifications

General

Product color	Black
Frequency band	2.4 - 2.483 GHz
Number of rotors	4 rotors
Channels quantity	3 channels
Maximum weight capacity	3.4 kg
Maximum operating distance	5000 m
Moving control functions	Backward, Downward, Forward, Turn left, Turn right, Upward
Battery voltage	22.2 V
Battery capacity	4500 mAh

Weight and Dimensions

Weight	2355 g
