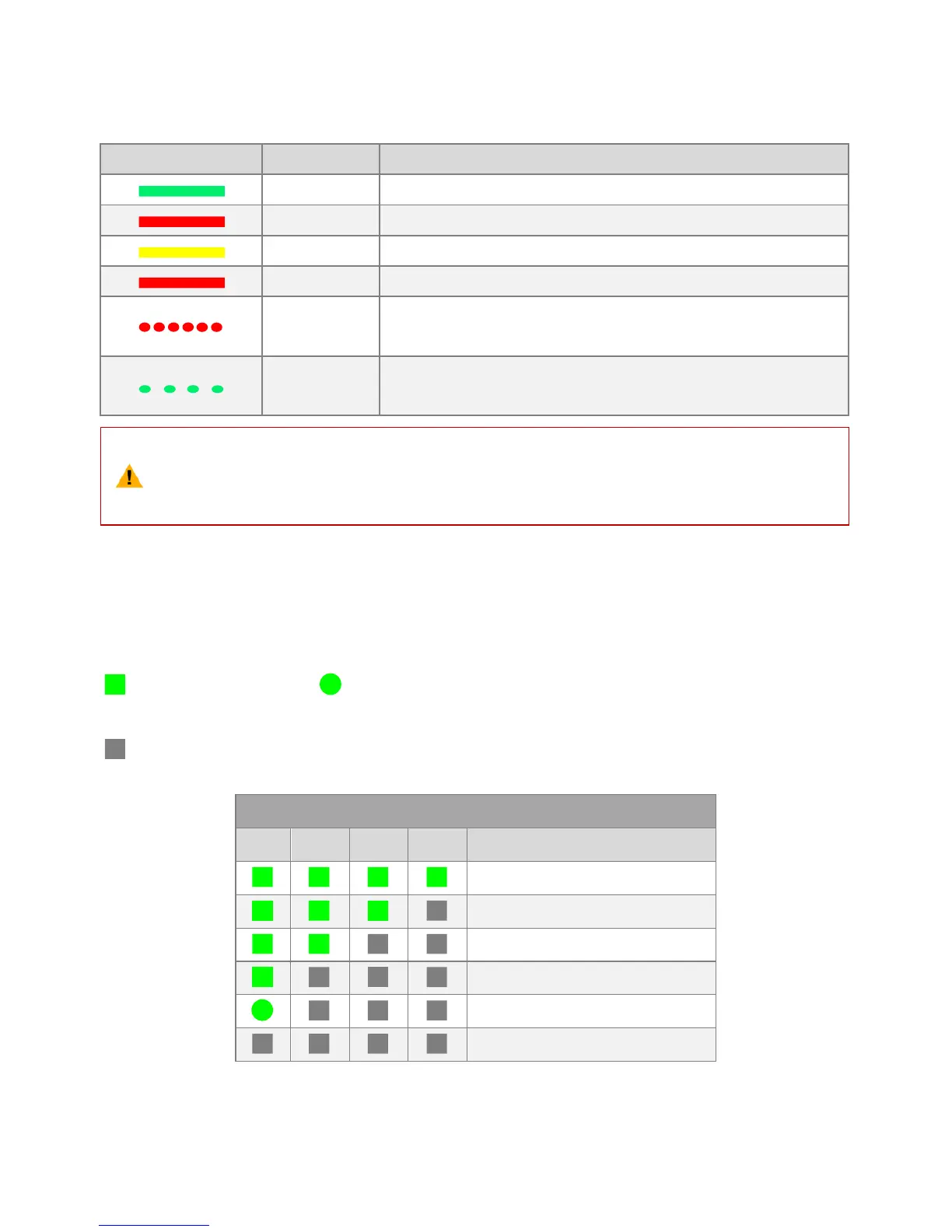

3.2 Remote Control LED Indicator Status
3.2.1 Remote Control Power LED Indicator Status
Power LED Indicator
Sound
Remote Control Status
None
Functioning normally.
None
Charging( remote control is powered off)
None
Remote control joysticks calibration error, need to be re-calibrate.
BB---BB---BB
Low voltage (from 3.5V-3.53V), recharge the remote control.
B-B-B……
Critical low voltage (from 3.45V-3.5V). Recharge the remote control
immediately.
B--B--B……
Alert will sound after 15 minutes of inactivity. It will stop once you
start using the remote control.
The remote control will power off automatically when battery voltage drops below 3.45V. Land and
recharge the battery as soon as possible when the low voltage alert occurs to avoid loss of control
during flight.
3.2.2 Remote Control Battery Level Indicator Status
The battery level indicators will show the current battery level during both the discharging process. The following is
a description of the indicators.
: The LED is solid on : The LED will blink regularly
: The LED is light off
Discharging process
LED1
LED2
LED3
LED4
Current battery level
75%~100%
50%~75%
25%~50%
12.5%~25%
0%~12.5%
<0%

dji PHANTOM 2 Specifications

General

Frequency band	2.4 GHz
Maximum operating distance	1000 m
Battery capacity	5200 mAh

Weight and Dimensions

Weight	1000 g
