©2013-2014 DJI. All Rights Reserved.7 |

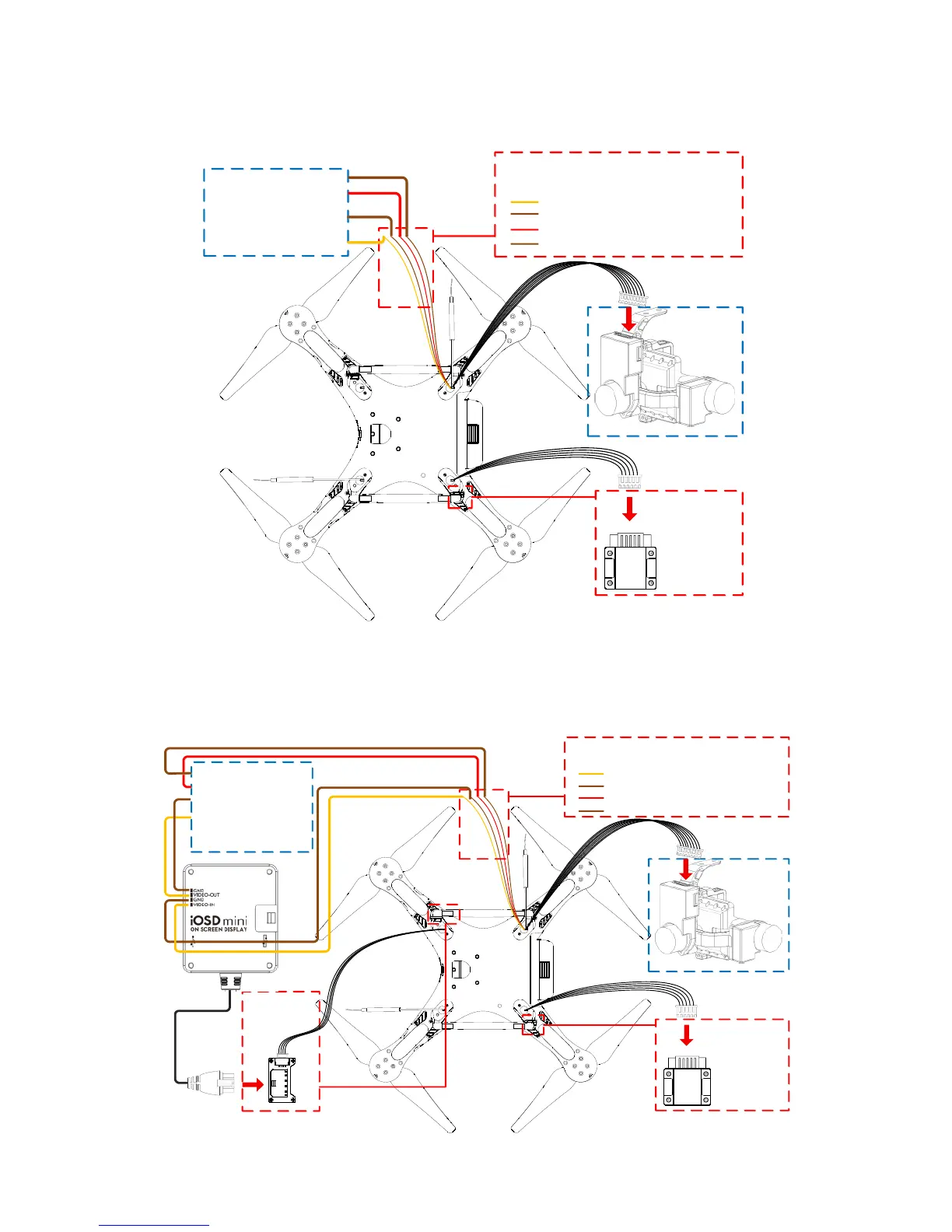

Connections with Other DJI Products
1 Connecting the H3-2D and H3-3D gimbal and wireless video transmission module, the figure below uses
H3-2D as an example.
ZENMUSE
H3-2D
Compass
VIDEO
VIDEO GND
Batt+
Batt-
Wireless
video
transmission
module
Transmitter
Description of the Video Cable
(sequence by color)
VIDEO GND
VBat+
VIDEO
GND
Figure 1-6
2 Connecting the H3-2D and H3-3D gimbal, iOSD mini and wireless video transmission module, the figure
below uses H3-2D as an example.
ZENMUSE
H3-2D
Compass
CAN-Bus
Connector
VIDEO GND
VBat+
GND
VIDEO GND
VIDEO
Batt+
Batt-
VIDEO
DJI
Description of the Video Cable
(sequence by color)
Wireless
video
transmission
module
Transmitter
Figure 1-7
