dji PHANTOM 2 User Manual

©2013-2014 DJI. All Rights Reserved.8 |

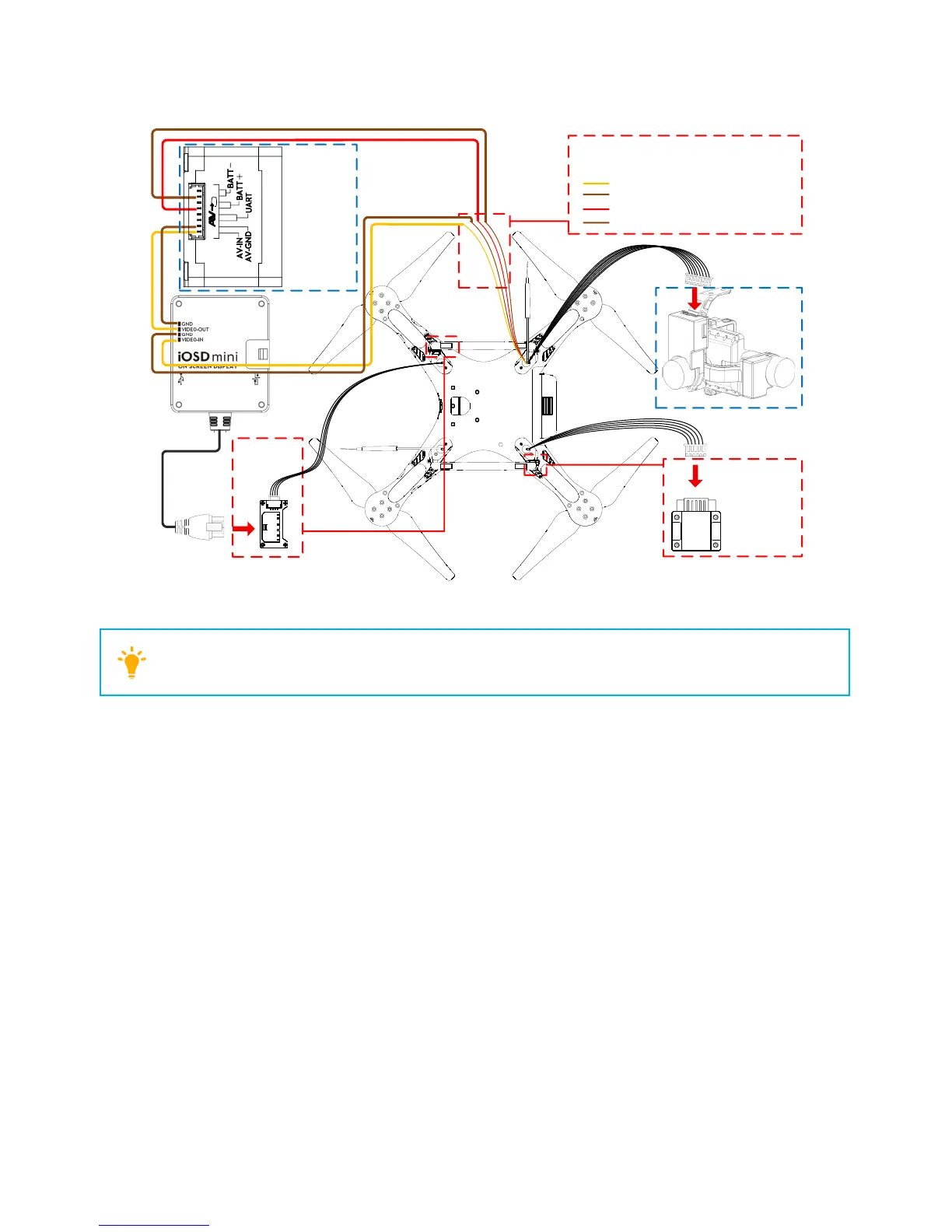

（3） Connecting the H3-2D and H3-3D gimbal, iOSD mini and DJI specified wireless video transmission module
AVL58, the figure below uses H3-2D as an example.
ZENMUSE
H3-2D
Compass
DJI
DJI specified
wireless
video
transmission
module
AVL58
Transmitter
CAN-Bus
connector
VIDEO GND
VBat+
GND
VIDEO
Description of the Video Cable
(sequence by color)
Figure 1-8
We recommend connecting the VBat+ port of the video cable to the two BATT+ ports of the AVL58
simultaneously. The same is true of the GND port of the video cable and two BATT- ports.
（4） Connecting the H3-2D and H3-3D gimbal, iOSD Mark II and wireless video transmission module, the figure
below uses H3-2D as an example.

dji PHANTOM 2 Specifications

General

Frequency band	2.4 GHz
Maximum operating distance	1000 m
Battery capacity	5200 mAh

Weight and Dimensions

Weight	1000 g
