ZENMUSE
H3-2D
VBat+
GND
VIDEO
DJI
VIDEO GND
Wireless video transmission
module Transmitter specified by
DJI(AVL58)
OR
Other wireless video transmission
module Transmitter
CAN-Bus
Connector
Compass
Description of the Video Cable
(sequence by color)
Figure 1-9

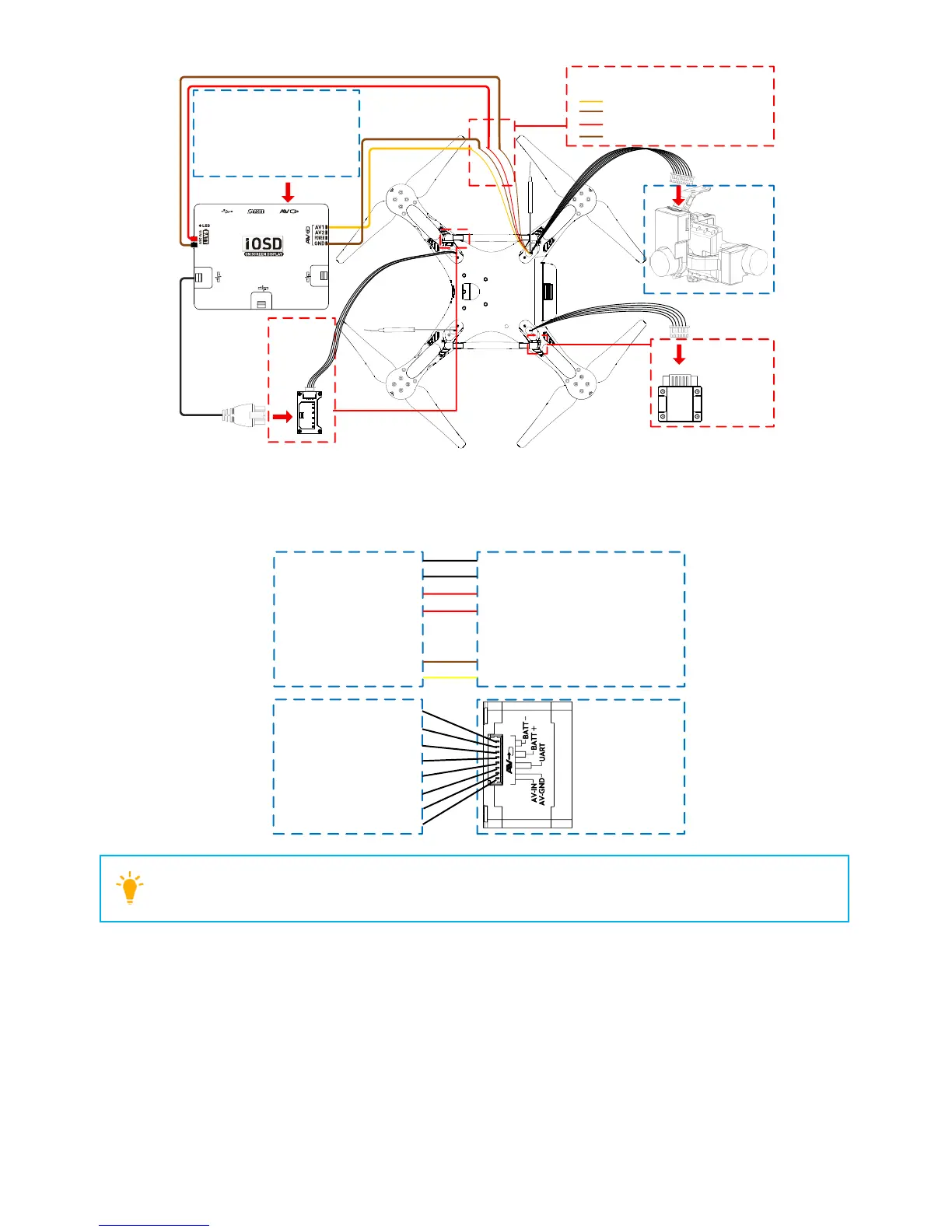

The diagram below illustrates the conneciton between the iOSD Mark II and the wireless video transmission module.
iOSD Mark II
Other wireless video
transmission module
Transmitter
VIDEO GND
VIDEO
Batt-BATT-
BATT-
BATT+
BATT+
UART
UART
AV-OUT
AV-GND
Batt-
Batt+
Batt+
Wireless video
transmission
module
AVL58 Transmitter
specified by DJI
iOSD Mark II
AV-OUT
AV-GND
BATT-
BATT-
BATT+
BATT+
UART
UART
Use the 8-Pin cable in the iOSD Mark II package when connecting to the DJI specified wireless video
transmission module AVL58.
（5） Using the iPad Ground Station

dji PHANTOM 2 Specifications

General

Frequency band	2.4 GHz
Maximum operating distance	1000 m
Battery capacity	5200 mAh

Weight and Dimensions

Weight	1000 g
