Important Notes of Using with Other DJI Products

（1） The video cable can provide power for the wireless video transmission module with a battery voltage

(11.1V~12.6V) and a maximum current 2A.

（2） Make sure the working current of the wireless video transmission module you connect can work with an

operational voltage between 11.1V~12.6V and the total working current of the iOSD and wireless video

transmission module is under 2A, as an overcurrent will damage the central board’s components. If the

total current exceeds 2A, please be sure to provide power supplied from a separate power source for the

wireless video transmission module.

（3） PHANTOM 2 uses a 2.4GHz RC system. To avoid communication interference, it’s not recommended to

use other 2.4GHz devices (including 2.4G Wi-Fi or 2.4G wireless video transmission module) except the

2.4G Bluetooth and 2.4G Datalink.

（4） Be sure to keep the wireless video transmission module and other communicating devices away from the

compass during installation and connection to avoid interference.

（5） To improve the compatibility with ZENMUSE gimbals, the latest factory deliveries of PHANTOM 2 has

updated to the Version 2 shown below. H3-2D/H3-3D gimbal can be directly installed for the Version 2

while for Version 1, a H3-3D adapter kit (coming soon) is required to install the H3-3D gimbal.

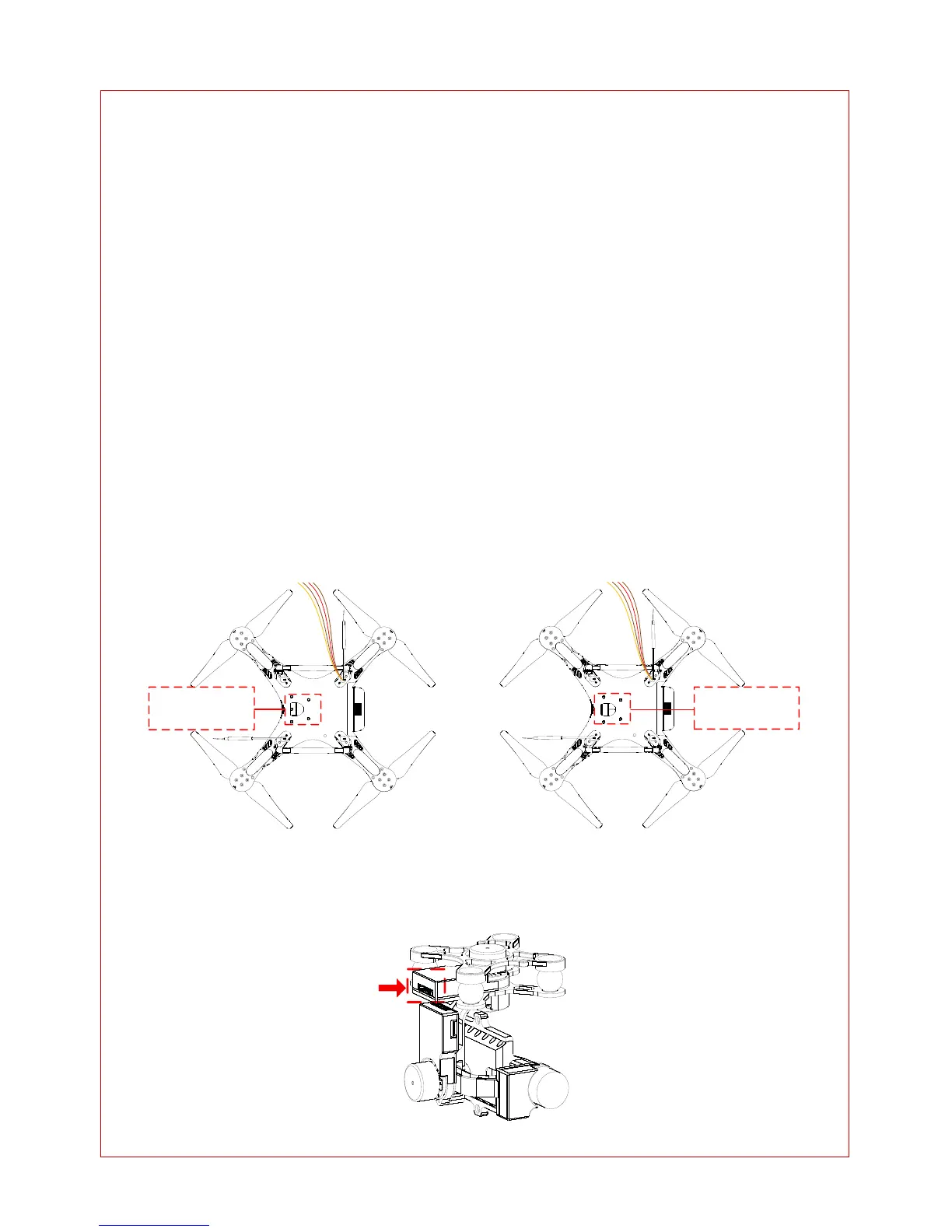

Version 1

Gimbal Mounting

Position

Version 2

Gimbal Mounting

Position

Figure 1-4

（6） When using the H3-3D gimbal, please connect the 8-Pin cable of PHANTOM 2 to the G8 port of H3-3D

shown below.

Figure 1-5
