Figure 10
Figure 11

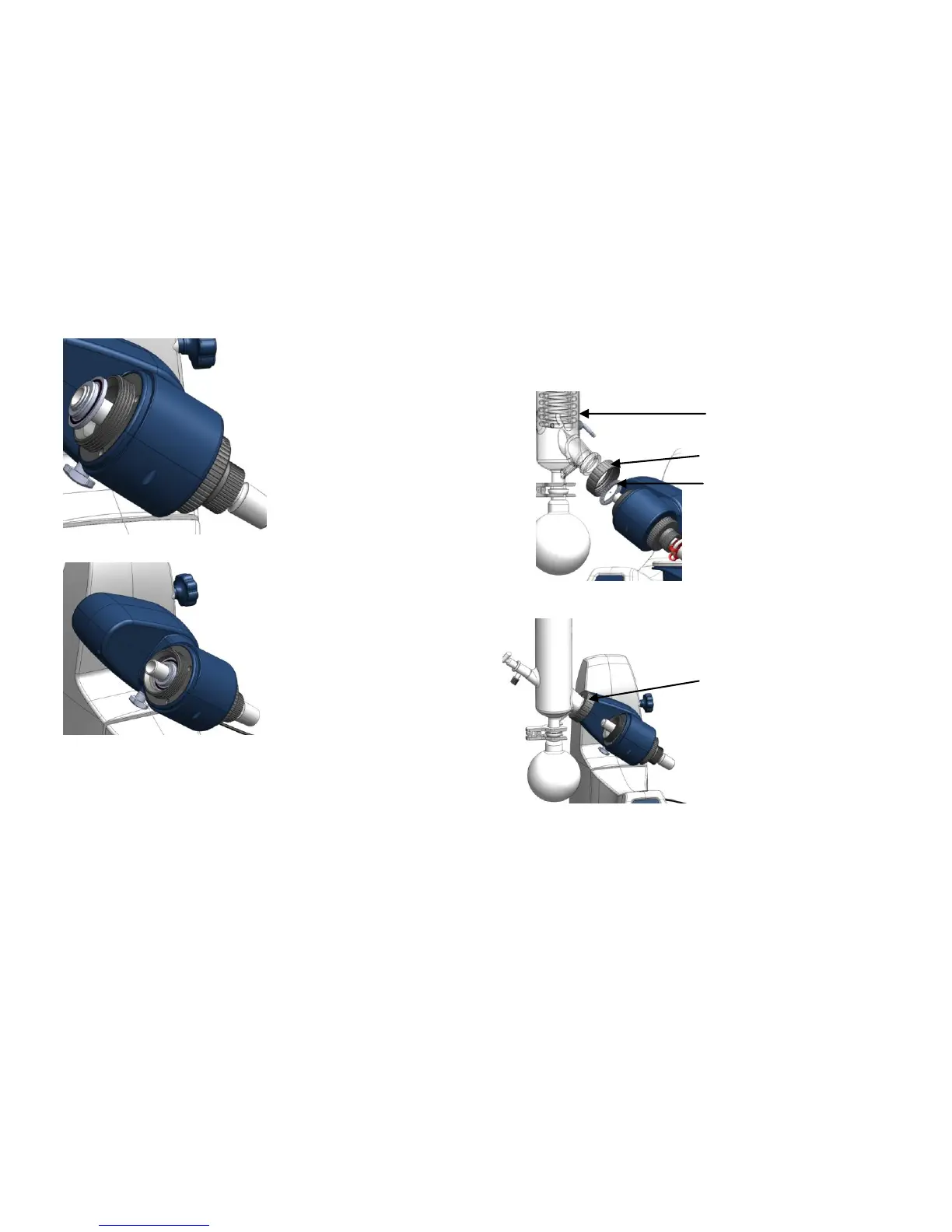

• Installing condenser (g) (Figure 12 and Figure 13).
- Load the cap nut (h) and locking spring (i) to
condenser in turn.
- Tighten the cap nut hand-screwed (h). Start the
device at 200 rpm for 2 min. Then tighten the cap
nut firmly.
Figure 12
Figure 13
• Installing the vertical glassware condenser locking
device (Figure 14). Use the transportation screw on the
back of the appliance (a)
g
h
h
i
