Dometic RMS8 Series User Manual

23

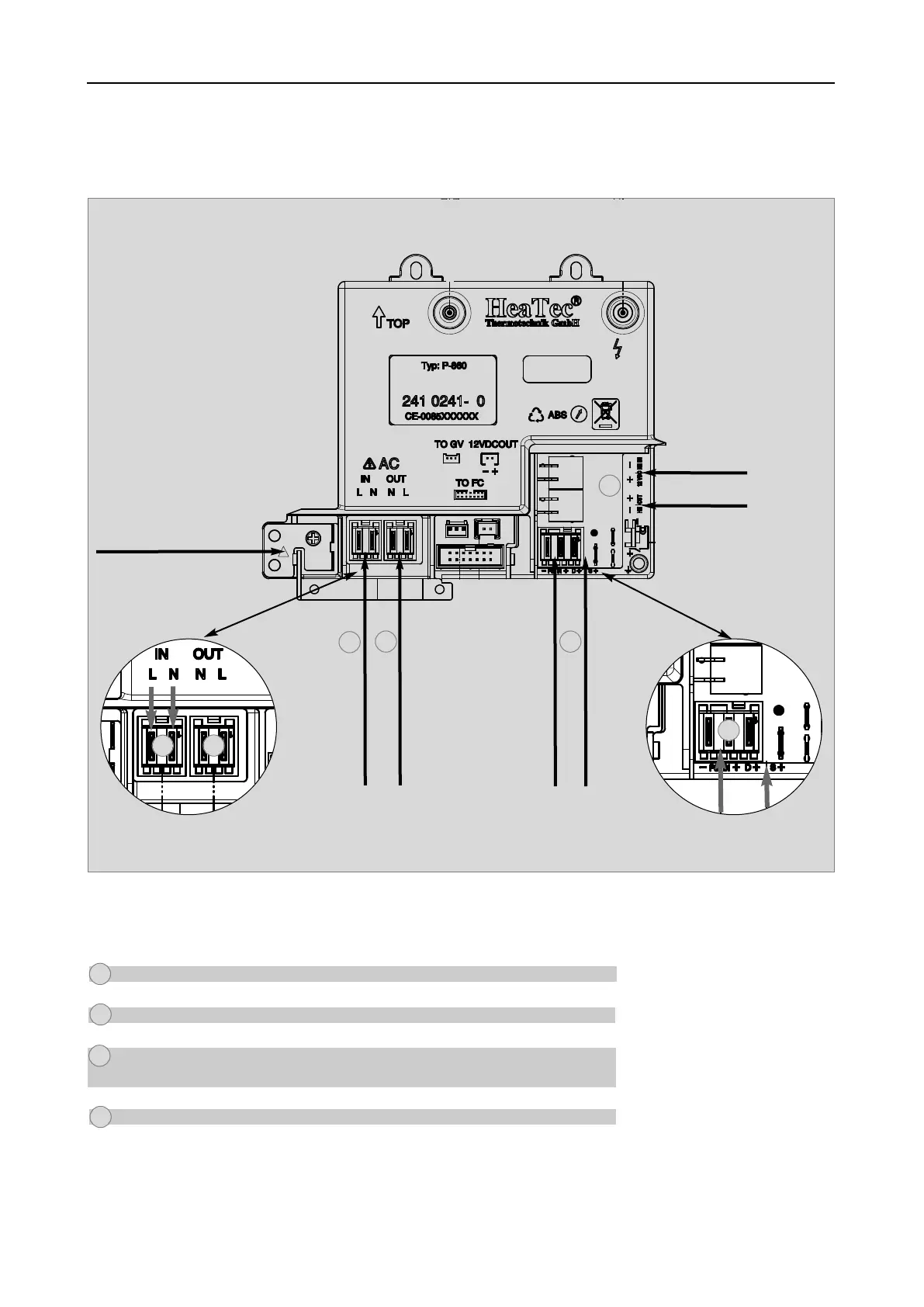

Fig. 43
Contacts at the electronics:
Earth
Mains connection (230 V AC)
INput heating element
(12 V DC)
Electronics connection (12 V)
D+ signal connection S+ signal connection
Heating element mains connection (230 V AC)
2
3
4
1
Plug-in contacts (manufacturer: Stocko
®
)
MF 9562-002-80E
MF 9562-002-8 OC
3-pin with D+ contact: MF 9562-003-8 30 960-000-00
2-pin : MF 9562-002-8 ON + spade connector 6.3 x 0.8
MKH 5132-1-0-200
2
1
3
4
Installation
2
1
3
-
+
D+/S+
OUTput heating
element (12 V DC)
289 0318-00_EN_RMx8xxx-Installation_N1-1.qxp 06.07.2012 13:11 Seite 23
