4.3 ø80-125 concentric horizontal duct for removal of combustion products and air intake (type
C
13
)
The removal of combustion products and air intake can be made using concentric Ø80 mm ducts
for the removal of combustion products and Ø125 mm ducts for the air intake, using the 1m Ø80-
125 horizontal duct kit, code CGAS000189.
The maximum length from the boiler for horizontal ducts, including the kit terminal, is 10 metres.
Each 90° elbow, or two 45° elbows, will reduce the available length by 1 metre.
It is recommended that the pipe be fitted in a slightly upwardly-inclined direction, at around 2º - 3º,
to prevent any water or condensation from dripping out.

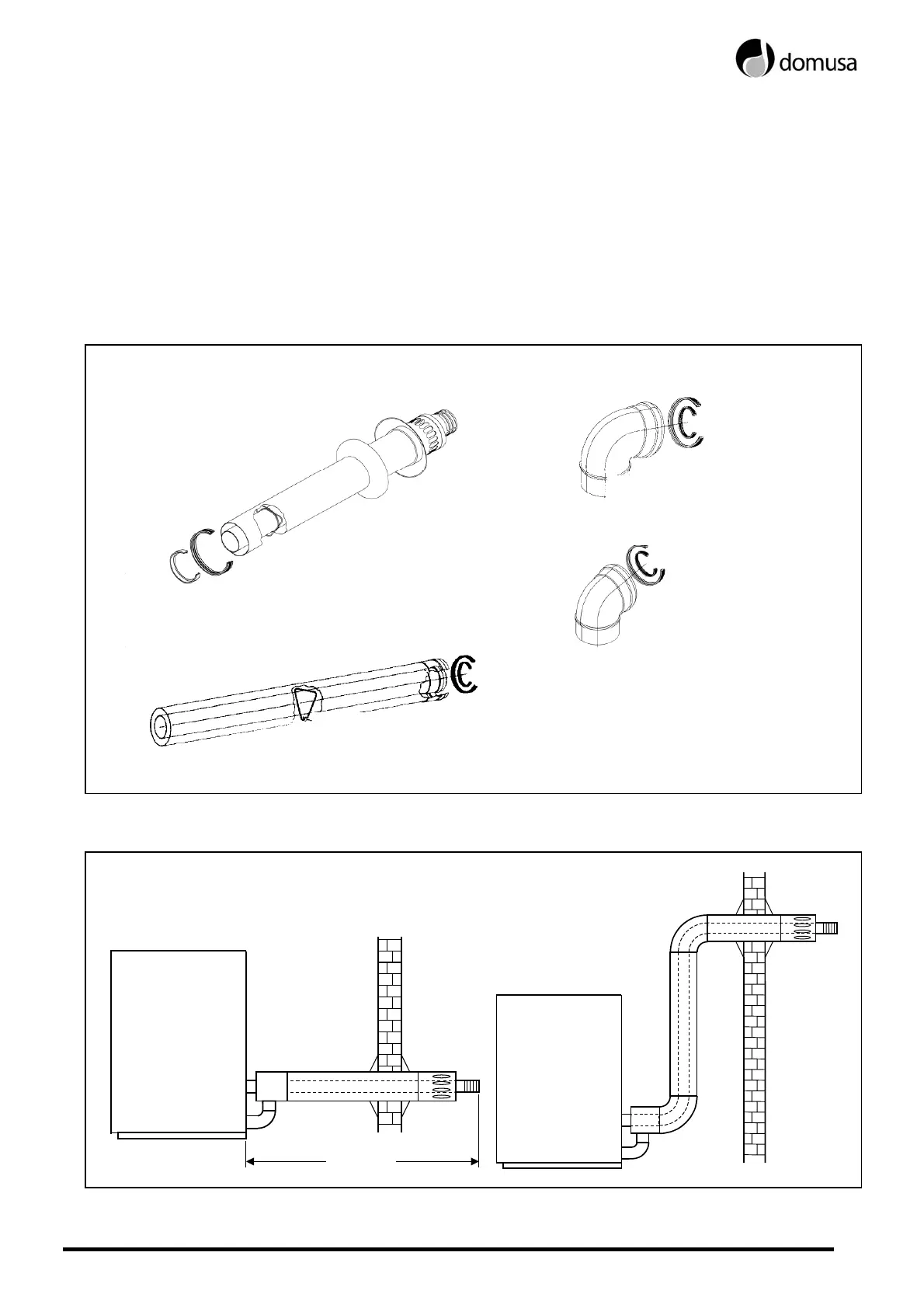

Kit salida horizontal 1m
80/125
Cod. CGAS000189
Curva 90º coaxial
∅
80/125
Cod. CGAS000182
Curva 45º coaxial
∅
80/125
Cod. CGAS000183
Tubo 1m coaxial
∅
80/125
Cod. CGAS000184
Examples of installation:
L
≤
10 mts.
1m ø 80/125 horizontal duct kit
Code CGAS000189
ø 80/125 90º coaxial curve
Code CGAS000182
ø 80/125 45º coaxial curve
Code CGAS000183
1m ø 80/125 coaxial duct
Code CGAS000184
