1601-065-P-12-19
14
9411
C
NC
NO
Single Channel
with Aux Relay
NOT A WALKWAY
NOT A WALKWAY
9410

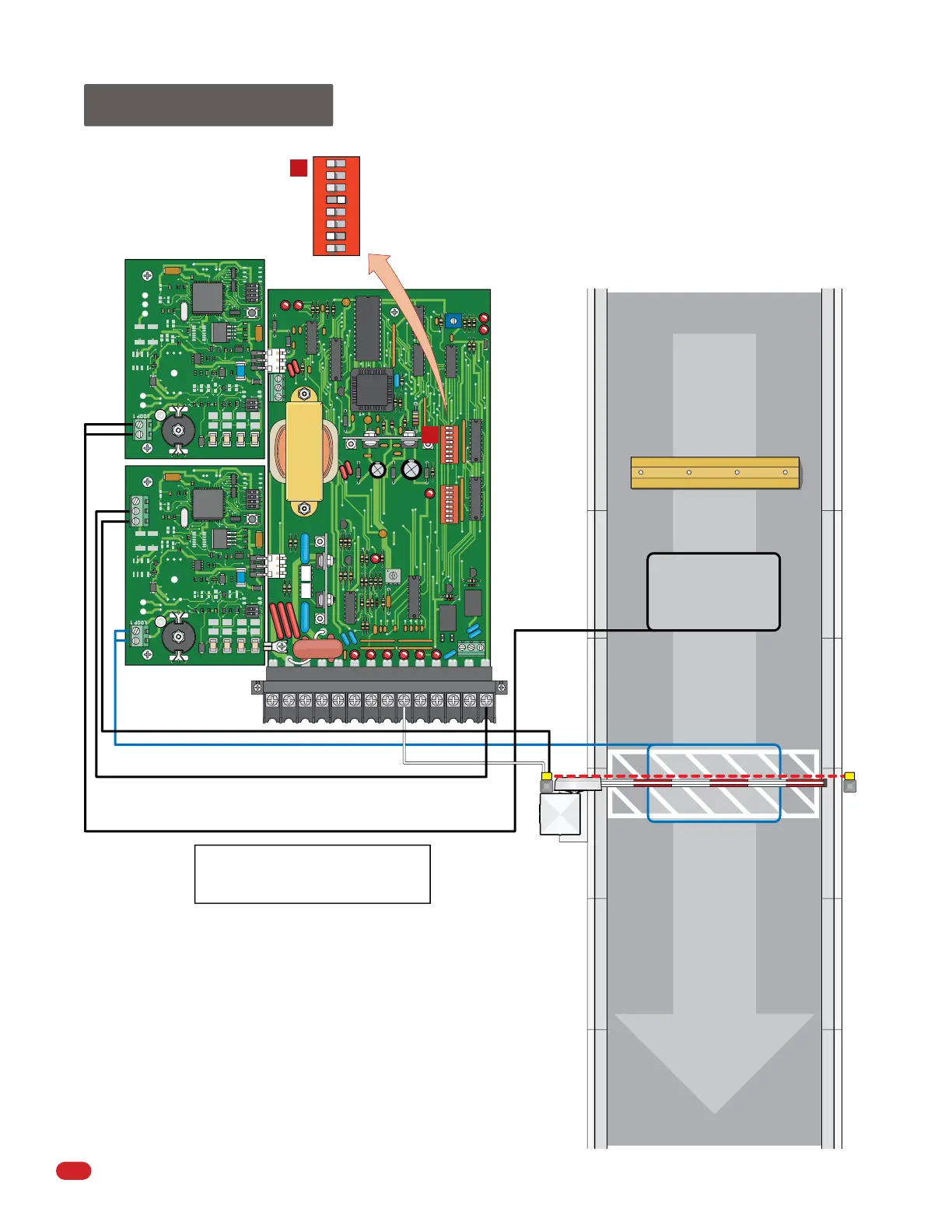

3.2 Exit Lane Only
Speed Bump
Single Channel
REVERSE
SENSITIVITY
TIME
DELAY
POWER
1
ON
2 3 4 5 6 7 8 1
ON
2 3 4 5 6 7 8
NC NO
UP
LOOP
DOWN
LOOP
123456789 10 11 12 13 14
1601
Down Loop
Automatic
Exit Loop
(Free Exit)
SW 1
SW 1, switch 4 is ON.
SW 1, switch 7 is OFF (Timer). The arm will rotate
down after the vehicle clears the down loop.
See Timer note below.
SW 1
SW 2
A
A
Pedestrian Photo Sensor Note: Photo sensor must be installed to
protect pedestrians from the lowering arm. When connected as shown,
the photo sensor will only cause an arm reversal when a vehicle is not
present on the down loop. When a vehicle is present on the down loop,
the photo sensor has no affect on the barrier arm operation. A down loop
MUST be installed directly under the arm for the pedestrian photo sensor
to function.
Timer Note: The timer can be used with a down loop. When timer is ON
with a down loop, it will start countdown when the arm has fully raised.
Activation of the down loop will cancel timer countdown. Useful when the
automatic exit loop has been activated but vehicle does not move
forward to activate the down loop. The arm will remain UP. Timer will
time out and lower the arm without the down loop being activated.
Helps increase distance
and time between vehicles.
1
ON
2 3 4 5 6 7 8
Com
Reverse
Com
NC
Pedestrian Photo Sensor
Type of wiring to be used on ALL external devices:
A) Type CL2, CL2P, CL2R, or CL2X.
B) Other cable with equivalent or better electrical,
mechanical, and flammability ratings.
To Next Page
