8.1 Maintenance
SECTION 8 - MAINTENANCE AND TROUBLESHOOTING
When servicing the gate operator, always check any external reversing devices (loops, photo eyes, etc.) for proper operation. If
external reversing devices cannot be made operable, do not place this operator in service until the malfunction can be identified
and corrected.
Always check the inherent reversing system when performing any maintenance. If the inherent reversing system cannot be
made operable, remove this operator from service until the cause of the malfunction is identified and corrected. Keeping
this operator in service when the inherent reversing system is malfunctioning creates a hazard for persons which can result
in serious injury or death should they become entrapped.
If replacing arm, make sure warning decal is on both sides of arm.
When servicing this gate operator, always turn power OFF!! If equipped with batteries, make sure battery power switch is OFF.
If gearbox requires oil, use only Mobil SHC-629 Synthetic Gear Oil. Do not completely fill gearbox with oil. Gearbox is full
when oil completely covers inspection window.
Inspection and service of this gate operator by a qualified technician should be performed anytime a malfunction is observed or
suspected. High cycle usage may require more frequent service checks.

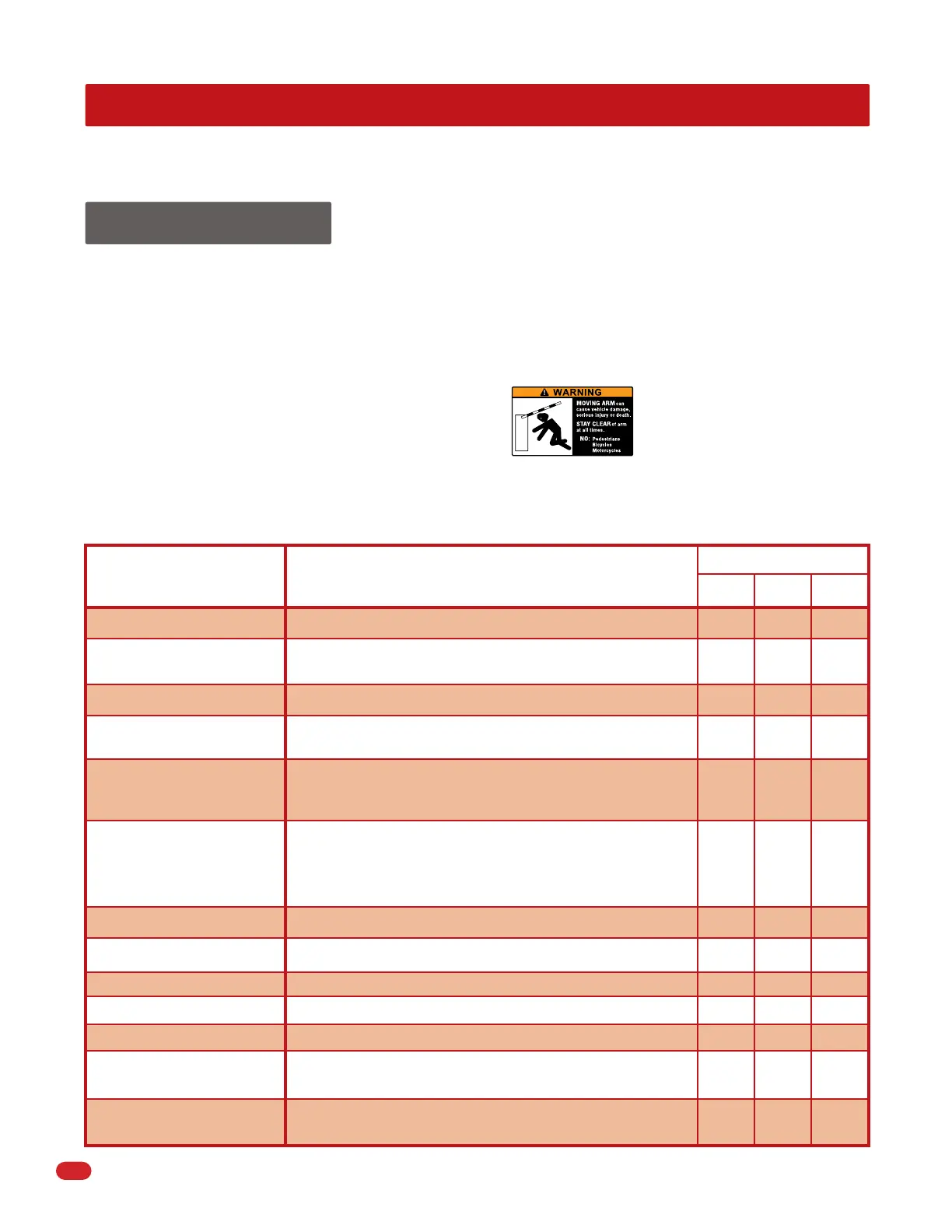

Operator
Component
Maintenance
Monthly Interval
6112
Arm(s)
Batteries
(On select models)
Convenience Open System
(Not on all models)
Drive Belt(s)
✓✓
✓ ✓
✓
✓
✓
✓
✓ ✓
✓
✓ ✓ ✓
✓ ✓
✓
✓ ✓
✓ ✓
✓ ✓
Fire Dept.
Gearbox
Linkages
Loop(s)
Pulleys
ERD Reversing System
External Reverse
Device(s)
Complete System
If operator is equipped with optional convenience open system,
check the batteries for any leakage or loose connections.
Batteries should be replaced every two years.
Check for alignment, tightness and wear.
Check for alignment, tightness and wear. Make sure warning
decals are on operator and arm and easily visible.
Check all external ground loops for proper operation.
Check set screw for tightness.
Perform a complete system check. Include all reversing devices,
loops, access system devices, Fire Dept. access devices, etc.
Check emergency vehicle access device for proper operation.
If operator is equipped with optional DC open system, check to
be sure the system opens the arm upon loss of AC power.
Operator should resume normal operation when AC power has
been restored.
Check internal linkages for wear. Inspect bushing for wear.
Check oil level and fill if necessary. Do not overfill.
Check that the arm reverses on contact with an object in closing
cycle. Adjust the reversing sensor if necessary.
Check electric reversing edges and photo-cells for proper
operation.
Warning Signs
Check that warning signs are on BOTH sides of the gate area.
