Doosan 7/71 - Page 45

OPTIONS
43
7/71, 12/56

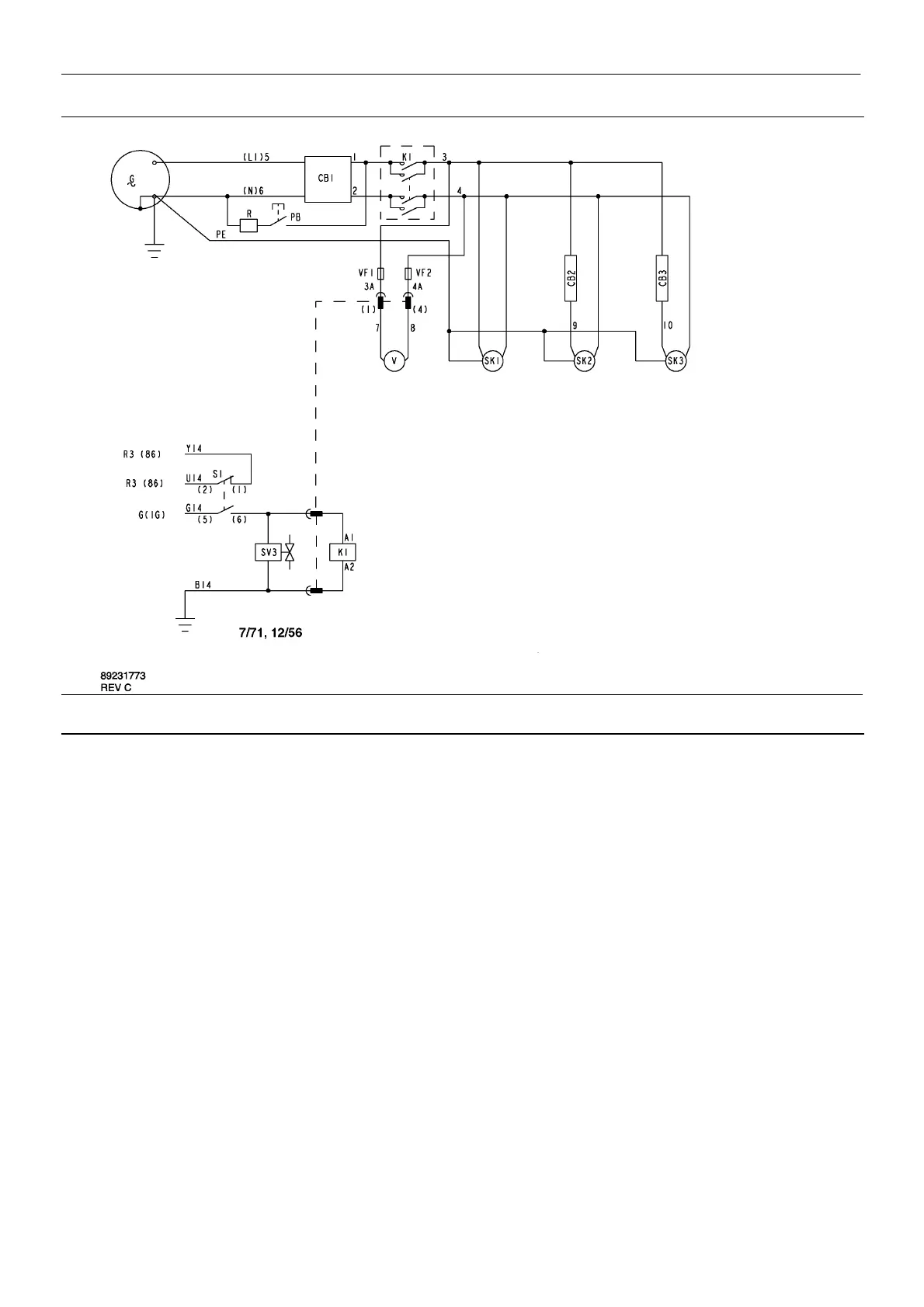

A.C. Electrical Power Schematic Diagram. 230V 1 − phase.
KEY
CB1 Circuit breaker
32A
CB2 Circuit breaker
16A
CB3 Circuit breaker
16A
G Alternator
K1 Contactor
PB Pushbutton
R Resistor
S1 Switch, start
SK1 Socket outlet 32A
SK2 Socket outlet 16A
SK3 Socket outlet 16A
SV3 Valve, solenoid
V Voltmeter
VF1 Fuse
Voltmeter
VF2 Fuse
Voltmeter
