Operating & Maintenance Manual Operating Instructions
46

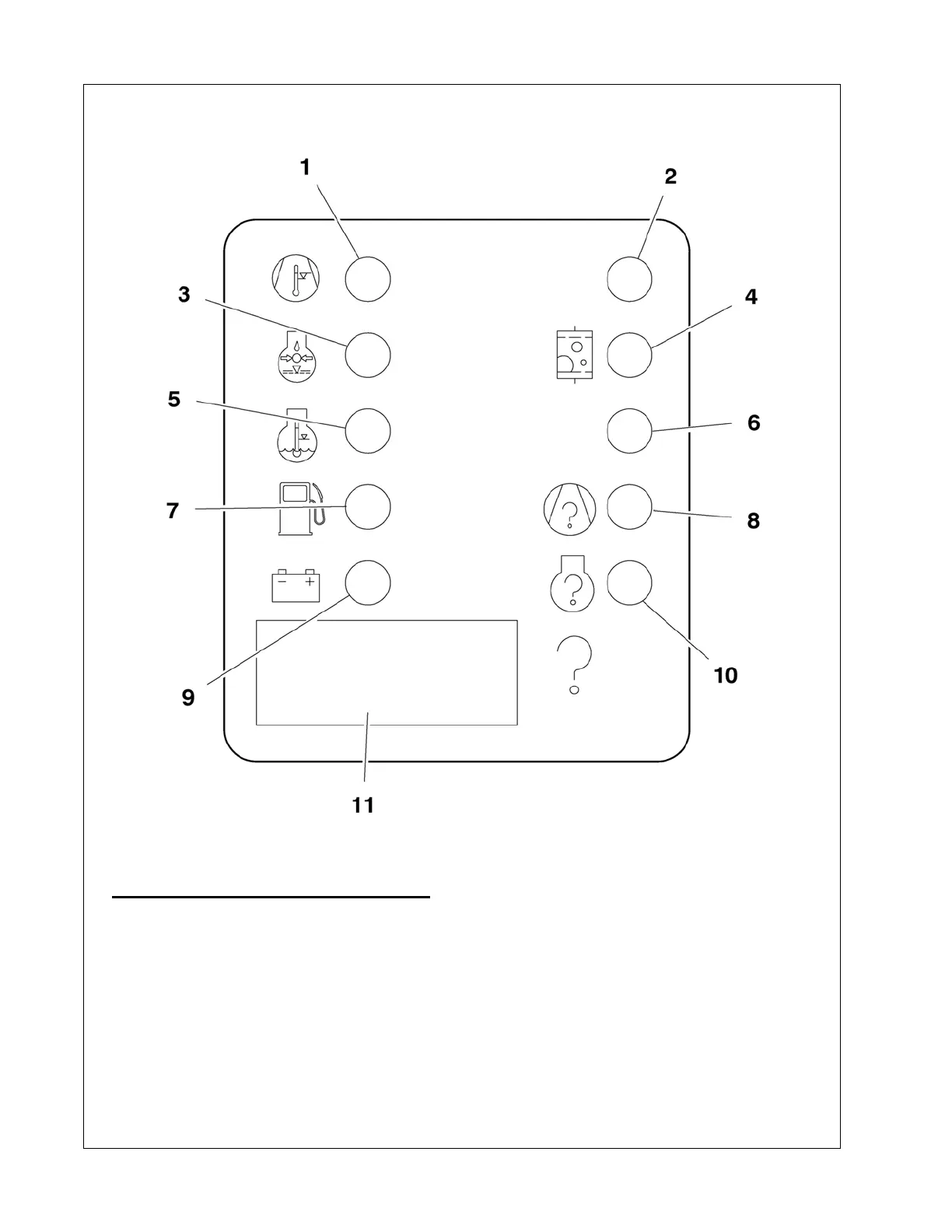

WEDGE DIAGNOSTIC DISPLAY PANEL.
The Wedge diagnostic display panel is arranged as shown above. A description of each
diagnostic indicator is as follows:
1. High Compressor Temp: Fault indicator lamp. Indicates shutdown due to high
compressor temperature.
2. Spare
3. Low Engine Oil Pressure: Fault indicator lamp. Indicates shutdown due to low
engine oil pressure.
