8 Internal program switches – single door
Operator can be set to one of four door control modes using
two internal program switches on end of operator.
Off
Door will open automatically when night bank
trigger is activated and closes upon expiration
of adjustable hold-open time.
Automatic
Door opens automatically when an activator is
actuated or triggered and closes on expiration
of adjustable hold-open time.
Permanent
Open
Door opens automatically and remains open
until function is deactivated.
Exit only
Door opens automatically after internal
activator or night bank activator has been
activated. Door closes on expiration of
adjusted hold-open time.

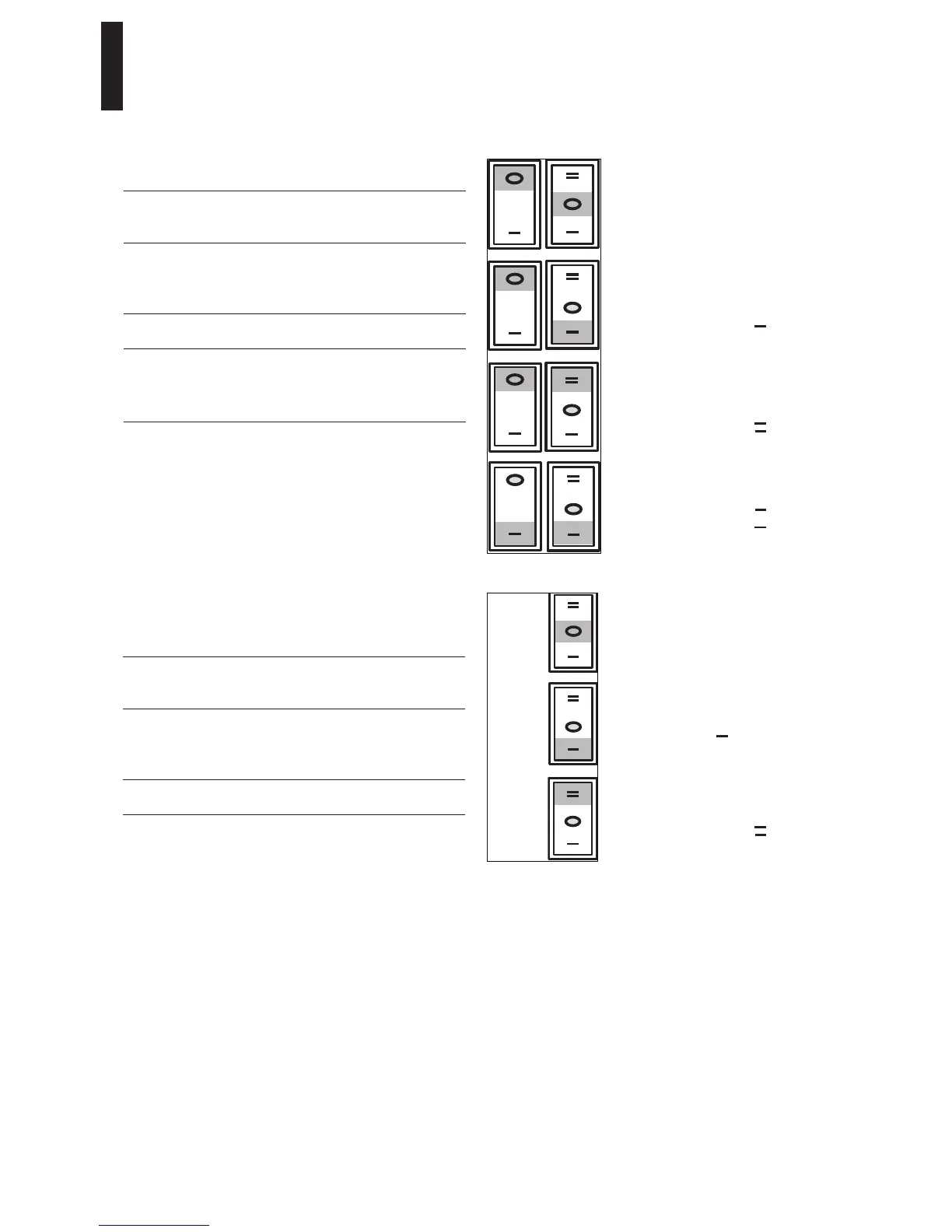

OFF
Set both switches to "O"
Automatic
Set 2-pole switch to "O"
Set 3 pole switch to " "
Permanent open
Set 2-pole switch to "O"
Set 3 pole switch to " "
Exit only
Set 2-pole switch to " "
Set 3 pole switch to " "
9 Internal program switch – double doors
Operator can be set to one of three door control modes using
internal program switch on end of inactive operator.
Off
Door will open automatically when night bank
trigger is activated and closes upon expiration
of adjustable hold-open time.
Automatic
Door opens automatically when an activator is
actuated or triggered and closes on expiration
of adjustable hold-open time.
Permanent
Open
Door opens automatically and remains open
until function is deactivated.
OFF
Set switch to "O"
Automatic
Set switch to " "
Permanent open
Set 3 pole switch to " "
