Dorma ED100 - Door Reveal Depth and Width Measurement; Measuring Reveal Depth; Measuring Door Width

DORMA AUTOMATICES, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Subject to change without notice
DL3463-050 08/2016 Lake Bluff, IL 60044 Fax: 847-249-3999
ED100 / ED250 SERVICE MANUAL
—
16
1.1 Measure and record reveal depth.
Reference
paragraph
Parameter Description Measurement Parameter value
Q 2
rd
Reveal depth
Q-3
Tb
Door width
1.2 Convert measurement into parameter rd value and enter
above.
Reveal in
inches
Reveal
in mm
rd
value
ED100 / ED250
-1-3/16 -30 -3
-3/4 -20 -2
-3/8 -10 -1
0
0
0
3/8
10
1
3/4 20 2
1-1/8 30 3
1-9/16 40 4
1-15/16
50
5
2-3/8 60 6
2-3/4 70 7
3-1/8 80 8
3-1/2 90 9
3-15/16
100
10
4-5/16 110 11
4-3/4 120 12
5-1/8 130 13
5-1/2 140 14
5-7/8
150
15
6-5/16 160 16
6-11/16 170 17
7 180 18
7-1/2
190
19
7-7/8 200 20
8-1/4 210 21
8-5/8 220 22
9 230 23
Reveal in
inches
Reveal
in mm
rd
value
9-7/16 240 24
9-13/16 250 25
10 -1/4 260 26
10-5/8 270 27
11 280 28
11-7/16
290
29
11-13/16 300 30
ED250
12-3/16 310 31
12-5/8
320
32
13 330 33
13-3/8 340 34
13-3/4 350 35
14-3/16 360 36
14-9/16
370
37
15 380 38
15-3/8 390 39
15-3/4 400 40
16-1/8 410 41
16-9/16
420
42
16-15/16 430 43
17-5/16 440 44
17-3/4 450 45
18-1/8
460
46
18-1/2 470 47
18 -7/8 480 48
19 -1/4 490 49
19 -11/16 500 50
[
]

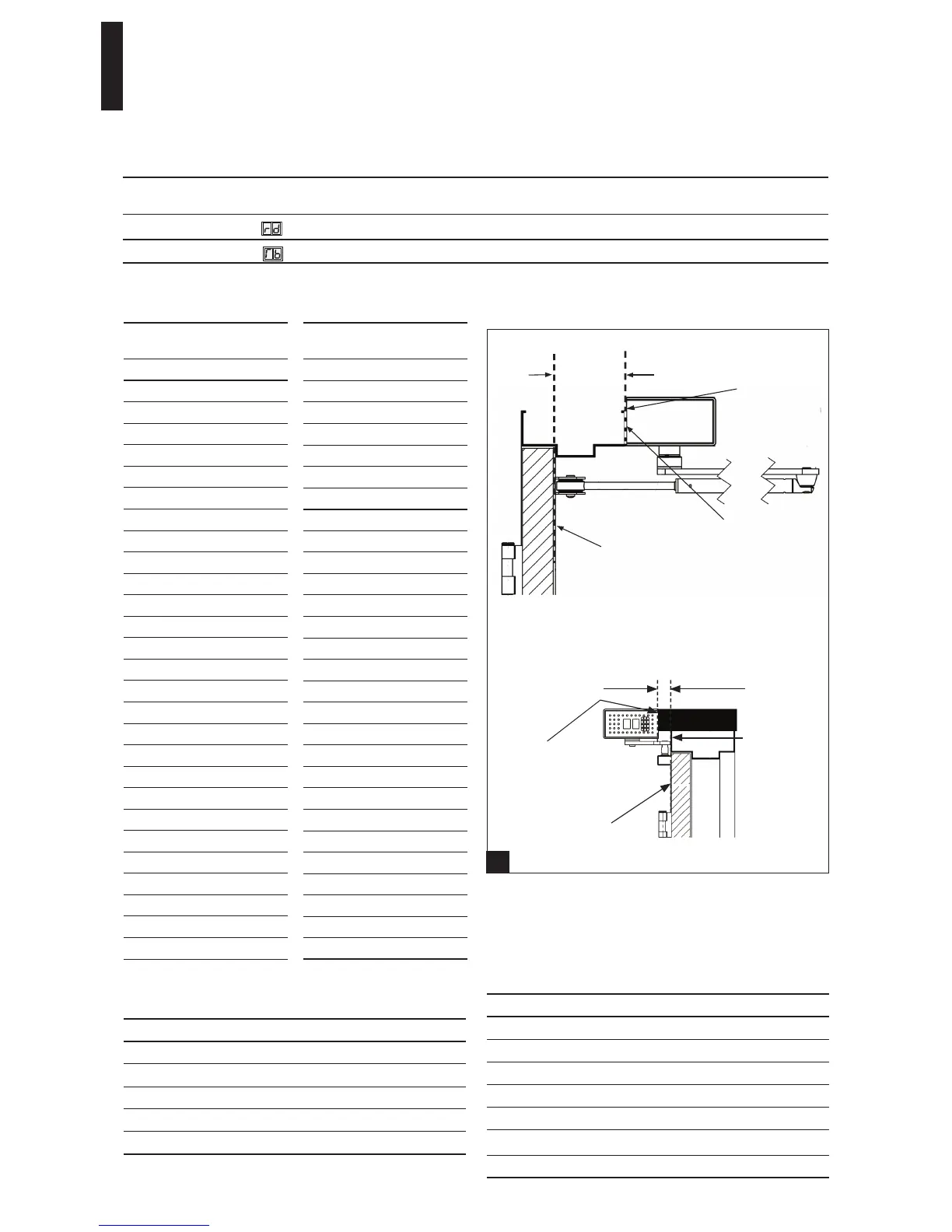

Positive
reveal
depth
Frame face
Door
frame
Door face
Face of operator
mounting surface
Negative
reveal
depth
Face of operator
mounting surface
Door face
[
Pull arm – with track
Frame face
Door frame
]
1
11. Measure and record reveal depth and door width
Push arm
Door width in inches and [mm]
Tb Value
Width
ED 100 / ED 250
28 to 31 15/16" [711 to 811]
7
28"
32 to 35 15/16" [813 to 912]
8
32"
36 to 39 15/16" [914 to 1014]
9
36"
40 to 43 15/16" [1016 to 1116]
10*
40"
Door width in inches and [mm]
Tb Value
Width
ED 250 only
44 to 47 15/16" [1118 to 1218]
11
44"
48 to 51 15/16 [1219 to 1319]
12
48"
52 to 55 15/16" [1321 to 1421]
13
52"
56 to 59 15/16" [1422 to 1522]
14
56"
60 to 62 15/16" [1524 to 1599]
15
60"
63" {1600]
16
64"
1.3 Measure and record door width and enter above. Convert
measurement into parameter Tb value.
