20
ED50/ED100/ED250 09-2021DL4617-003
dormakaba ED50/ED100/ED250 OHC Header
Setup and Troubleshooting Instructions
Chapter 9

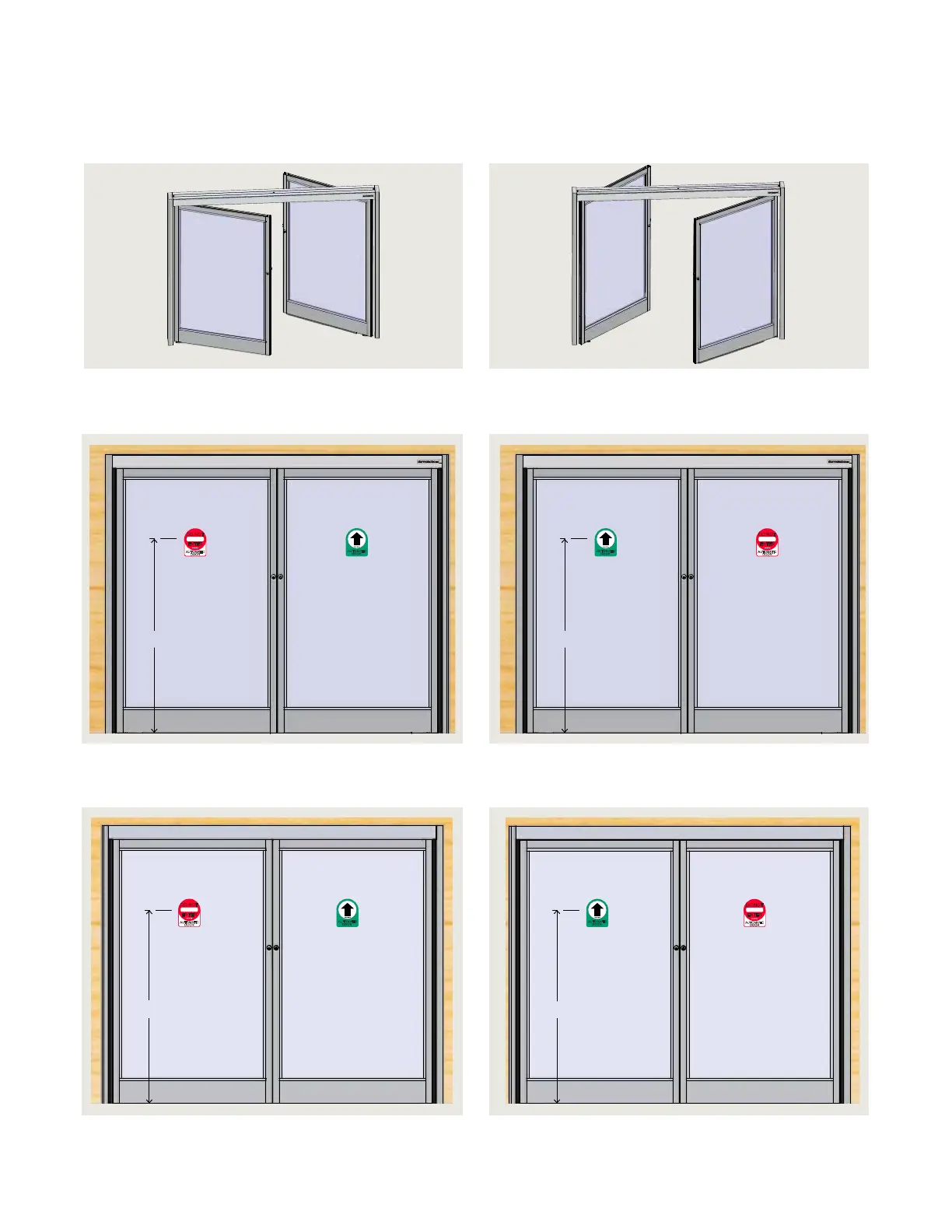

. Door signage, full energy double egress swing doors
(ANSI/BHMA A.)
Fig. 9.7.2 RH double egress
Swing side
Approach side
Fig. 9.7.3 RH double egress, exterior side
Approach side
Swing side
Fig. 9.7.6 LH double egress, exterior side
Fig. 9.7.5 LH double egress
Fig. 9.7.1 OHC RH double egress Fig. 9.7.4 OHC LH double egress
Swing side
Approach side
50” ± 12”
DD0739-010
AUTOMATIC
DOOR
DO NOT
ENTER
AUTOMATIC
DOOR
50” ± 12”
DD0739-010
AUTOMATIC
DOOR
DO NOT
ENTER
AUTOMATIC
DOOR
Approach side
Swing side
50” ± 12”
DD0739-010
AUTOMATIC
DOOR
DO NOT
ENTER
AUTOMATIC
DOOR
50” ± 12”
DD0739-010
AUTOMATIC
DOOR
DO NOT
ENTER
AUTOMATIC
DOOR
Approach side
Swing side
Approach side
Swing side
