Dormakaba ED50 - Page 23

23
ED50/ED100/ED250 09-2021DL4617-003
dormakaba ED50/ED100/ED250 OHC Header
Setup and Troubleshooting Instructions
Chapter 11
Driving parameter
Description

So
Opening speed, automatic mode

Sc
Closing speed, automatic mode

dd
Hold open time, automatic mode

dn
Hold open time, night/bank

do
Hold open time, manual opening of door

Sb
Wall masking on door swing (hinge) side

ST
Safety sensor test

SA
Activation by safety sensor on approach
(opposite hinge) side

SP
Suppression of safety sensor on swing
hinge) side during initial movement

Ud
Locking mechanism delayed opening time

Pu
Door preload prior to unlocking

TS
PR (Power reserve) module test

Fo
Static force on door closing edge in
opening direction (wind load control)

Fc
Static force on door closing edge in
closing direction (wind load control)

EP
Motor driven latching action, automatic
mode

EA
Door opening angle at which motor
driven latching action is activated

FH
Locking force

PG
Push and Go

PS
Mode (program) switch type

S1
DCW EPS, electronic program switch
behavior following a power reset

S2
Internal program switch;
switch function on delay

du
Door unlocking during business hours

Sr
Status relay function, terminal block X

bE
Input /a and X, G V locking
device output configuration

CC
Cycle counter, number displayed * 

EC
Delete error log
Driving parameter
Description

CS
Reset service interval display (yellow LED)

SL
Factory setting level (Fact Setup button)

OA
Opening angle, set during learning cycle

hd
Door closer mode, automatic or manual

hA
Power assist function activation angle

hF
Power assist function force adjustment

hS
Power assist function support for
manual mode in door closed position

F1
Upgrade card, fire protection

F2
ED: not used.
F= (default):
Low energy: ANSI/BHMA A.
F=: Full energy: ANSI/BHMA A.

F3
Not used

F4
Not used

F5
Not used

F7
Upgrade card, barrier free toilet

F8
Upgrade card, DCW I/O module

C1
Configuration of COM  interface

bc
Back check angle when door opened
manually

Td
Door thickness (mm)

d1
Deactivation of drive, emergency
pushbutton at X,  and a, trigger type

d2
Night/bank function, trigger type

FC
Hold open system release by manually
closing door, trigger type

Ad
Active door with astragal, caster angle;
angle door must reach before passive
door starts to open

HS
Hinge clearance
NOTICE
Parameter details – Reference Appendix A.

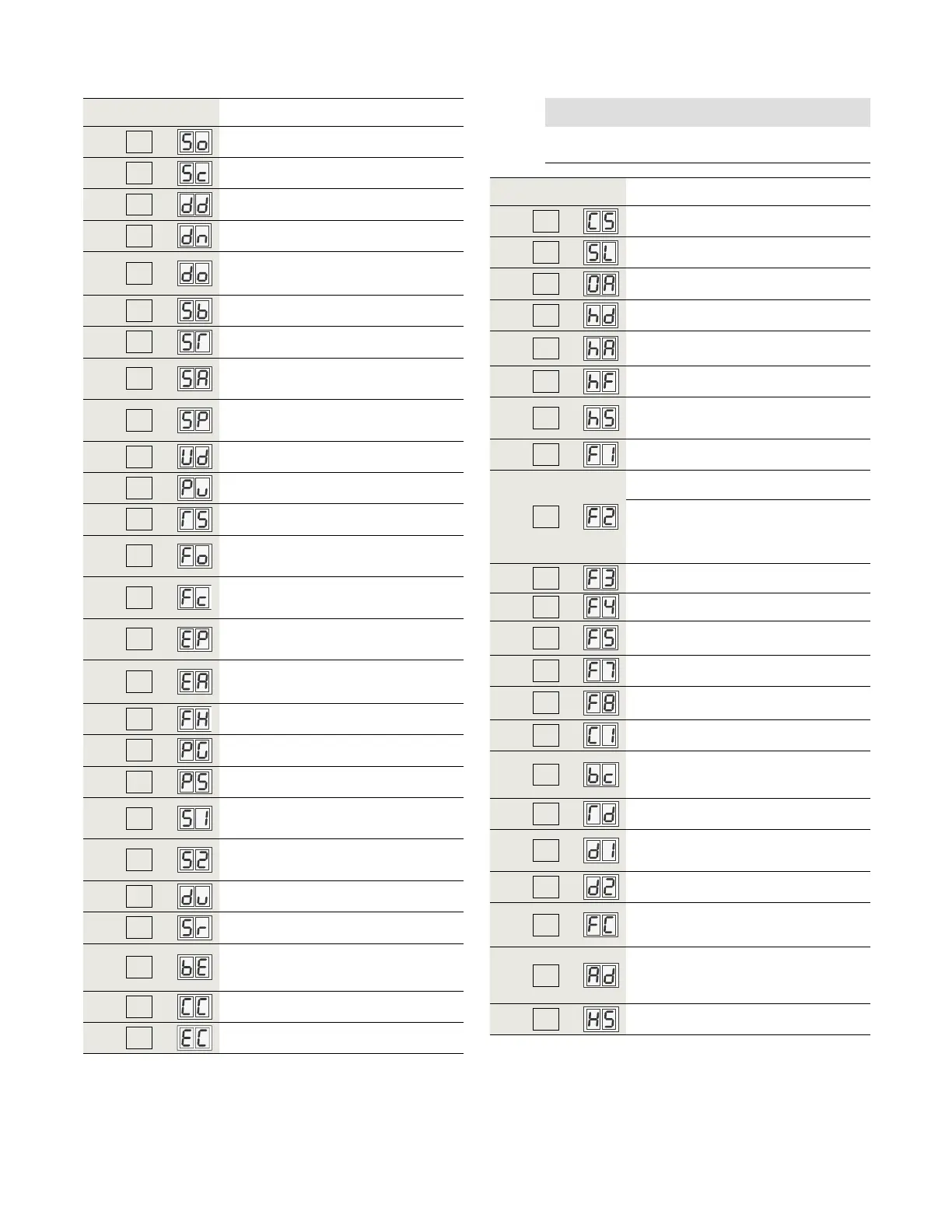

Table 9.3.1 Driving parameters
