DR FIELD and BRUSH MOWER User Manual

18 TOW-BEHIND DR
®
FIELD and BRUSH MOWER

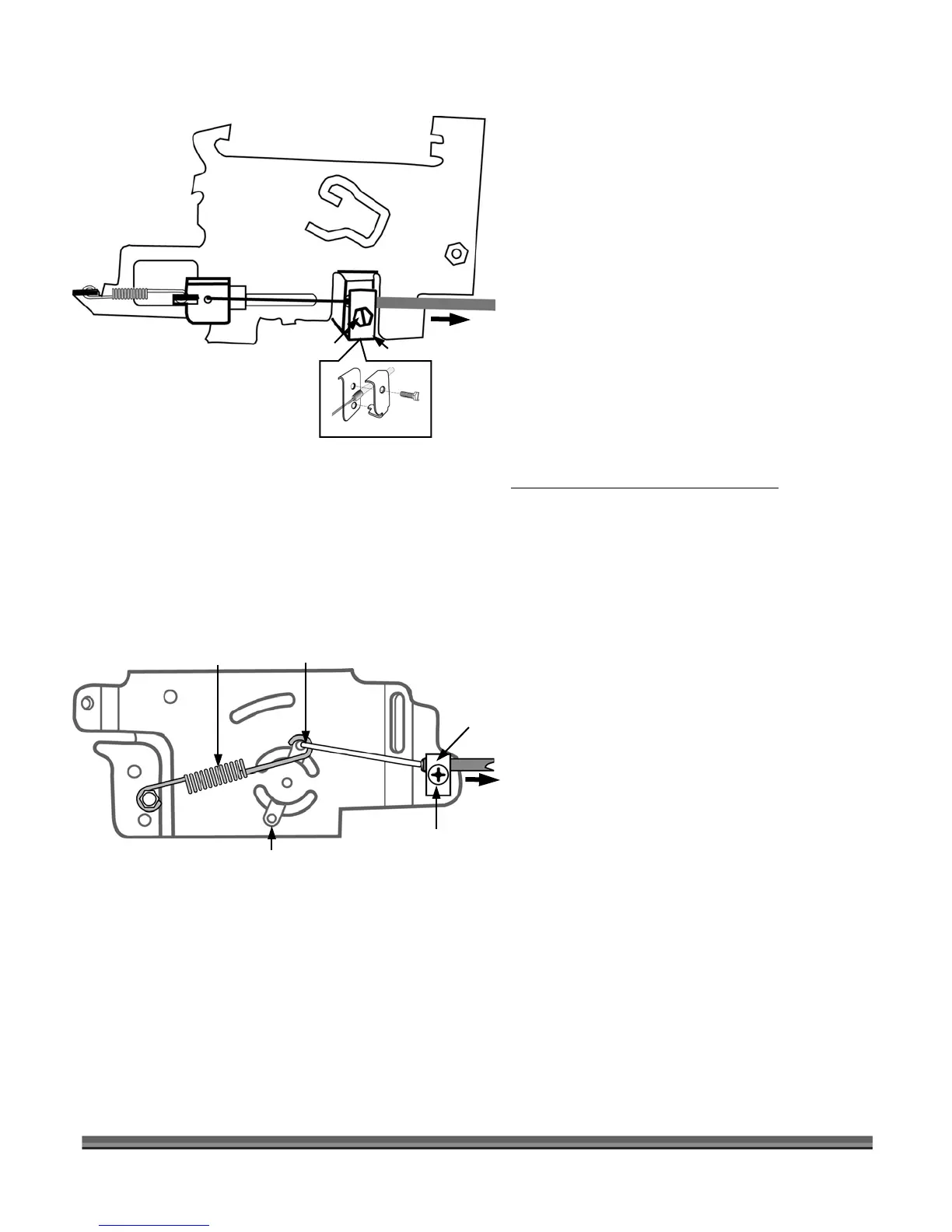

Figure 10
4. Using a Blade Screwdriver or 5/16" Nut Driver,
loosen the Throttle Cable Clamp Bolt (Figure 9)
and slip the Cable Sheath behind the Clamp.
5. Pull the Cable (Figure 9) as far as possible. This
will move the Engine mechanism into the Choke
position.
6. Tighten the Cable Clamp Bolt while holding the
Cable in the Choke position.
Throttle/Choke Cable - 17 HP Kawasaki
Tool Needed:
• Phillips Screwdriver, or Blade Screwdriver, or
5/16" Nut Driver
1. Route the Throttle Control Cable from the Tow
Bar behind the Fuel Tank straps (Figure 7 on
page 17).
2. Move the Throttle Control to the Choke position
on the Remote Control Panel.
3. Loop the end of the Return Spring over the “Z”-
Bend of the Throttle Cable (Figure 10).
4. Insert the “Z”-Bend of the Cable end into the
top hole in the Throttle Pivot Arm on the side of
the carburetor (Figure 10).
5. Using a Screwdriver or Nut Driver, loosen the
Throttle Cable Clamp Bolt (Figure 10), and slip
the Cable Sheath behind the Clamp.
6. Pull the Cable (Figure 10) as far as possible.
This will move the Pivot Arm into the Choke
position.
7. Tighten the Cable Clamp Bolt while holding the
Cable in the Choke position.
Cable Clamp Bolt Cable Clamp
Figure 9
Cable Clamp Bolt
Return Spring
“Z”-Bend
Cable
Clamp
Pivot Arm
Cable Clamp
Pull
Pull
