DR PRO-24 User Manual

20 DR
®
SNOW BLOWER
Replacing the Auger Belt (PRO 24 Model)
The Pro 24 Model uses one Belt to drive the Auger.
Tools and Supplies needed:
 10mm Wrench
 13mm Wrench
 Pliers
 One new DR Belt (Part number 40099)

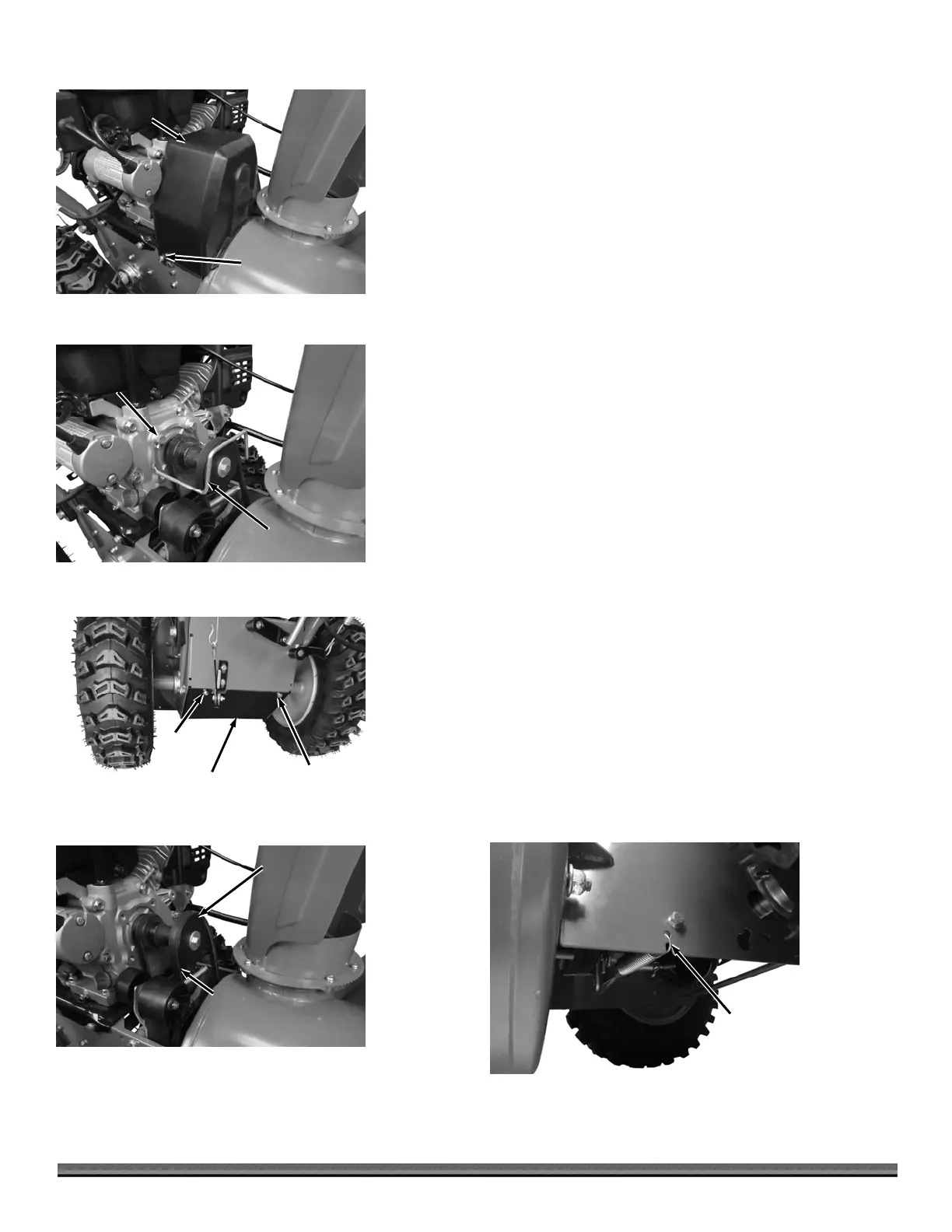

1. Remove the two Bolts and rectangular Washers from the Belt Cover using a
10mm Wrench and remove the Belt Cover (Figure 42).
2. Remove the two Bolts, Lock Washers and Flat Washers that secure the Belt
Guide to the Engine using a 13mm Wrench and remove the Belt Guide
(Figure 43).
3. Remove the two Bolts that secure the Transmission Cover using a 10mm
Wrench and Remove the Transmission Cover (Figure 44). This will allow
you to guide the Belt off the Auger Pulley from underneath.
4. Roll the Auger Belt off the front of the Auger Drive Pulley (Figure 45).
5. Remove the Brake Spring from bottom left side of the Frame so the Brake
Pad will come away from the Auger pulley, making room for Belt removal
(Figure 46).
6. Remove the Belt from the Auger Pulley underneath and pull the Belt up past
the rear side of the Pulley to remove it.
7. Position the new Belt down to the rear side of the Auger Pulley and install
the Belt onto the Pulley from underneath making sure the Belt is fully into
the Pulley groove.
Note: Ensure that the Belt is completely into the bottom of the Auger Pulley with
the Brake Pad out of the way.
8. Install the Belt onto the Drive Pulley.
9. Reconnect the Brake Spring to the Frame.
10. Install the Transmission Cover.
11. Install the Belt Guide and Belt Cover.
Transmission
Cove
r
Figure 44
Bolt
Bolt
Belt
Guide
Figure 43
Bolt, Lock
Washer, and
Flat Washe
r
Belt
Cover
Figure 42
Bolt and
Rectangular
Washer
A
uger
Belt
Figure 45
A
uger Drive
Pulley
Brake
Spring
Figure 46
