12 DR
®
SNOW BLOWER

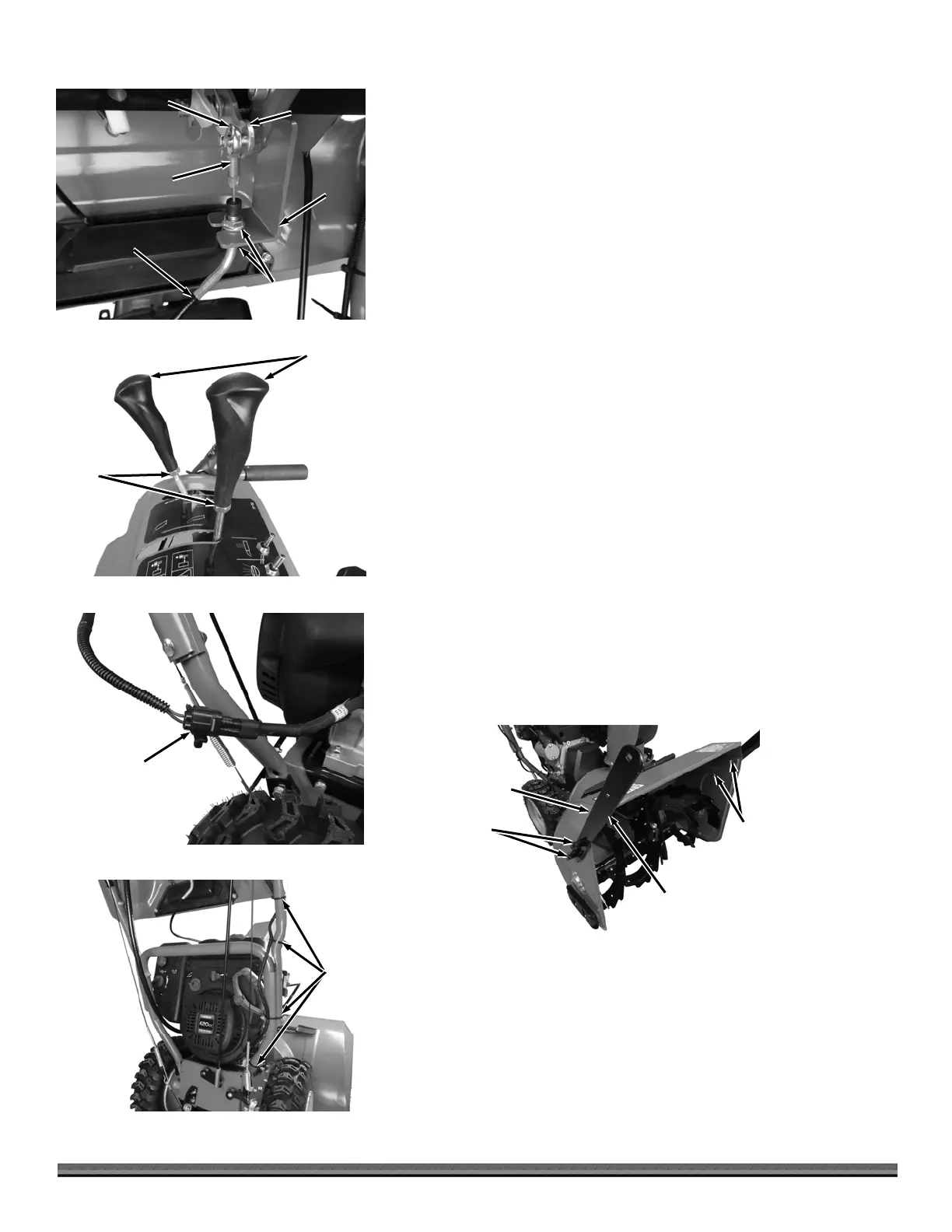

18. Install the Eyelet end of the Deflector Cable onto the Deflector Lever and
secure with the Pin (Figure 19).
19. Loosen the top Jam Nut, slide the threaded portion of the Cable into the
Bracket and tighten the two Jam Nuts against the Bracket using two 13mm
Wrenches.
20. Screw the Handles onto the Shift and Deflector Levers and tighten the Jam
Nuts using a 17mm Wrench (Figure 20).
21. Use Wire Cutters to cut the Cable Tie that is securing the Heated Grip
Connector and insert the Connector into the Harness Plug (Figure 21).
22. Install Cable Ties to secure the Wire Harness to the Handlebar, making
sure that the Cables are not on top of the Handlebar where they can
interfere with the Starter Pull Cord (Figure 22). Wear eye protection as you
cut the excess ends of the Cable Ties using Wire Cutters.
Installing the Drift Cutters
1. Position the Drift Cutters and secure each one with two Carriage Bolts and
Plastic Nuts (Figure 23).
Note: Ensure that the Drift Cutter bent edges are positioned as shown for proper
operation.
Drift
Cutte
Figure 23
Wing
Nut
Bolts
Bent Edge Pointing
Forward and Outward
Figure 22
Cable
Ties
Grip Heater
Connector
Figure 21
Handles
Figure 20
am
Nut
Deflector
Cable
Figure 19
Deflector
Lever
Pin
Eyelet
am
Nuts
Bracket
To Next Page
