DR PRO-24 User Manual

44 DR
®
SNOW BLOWER

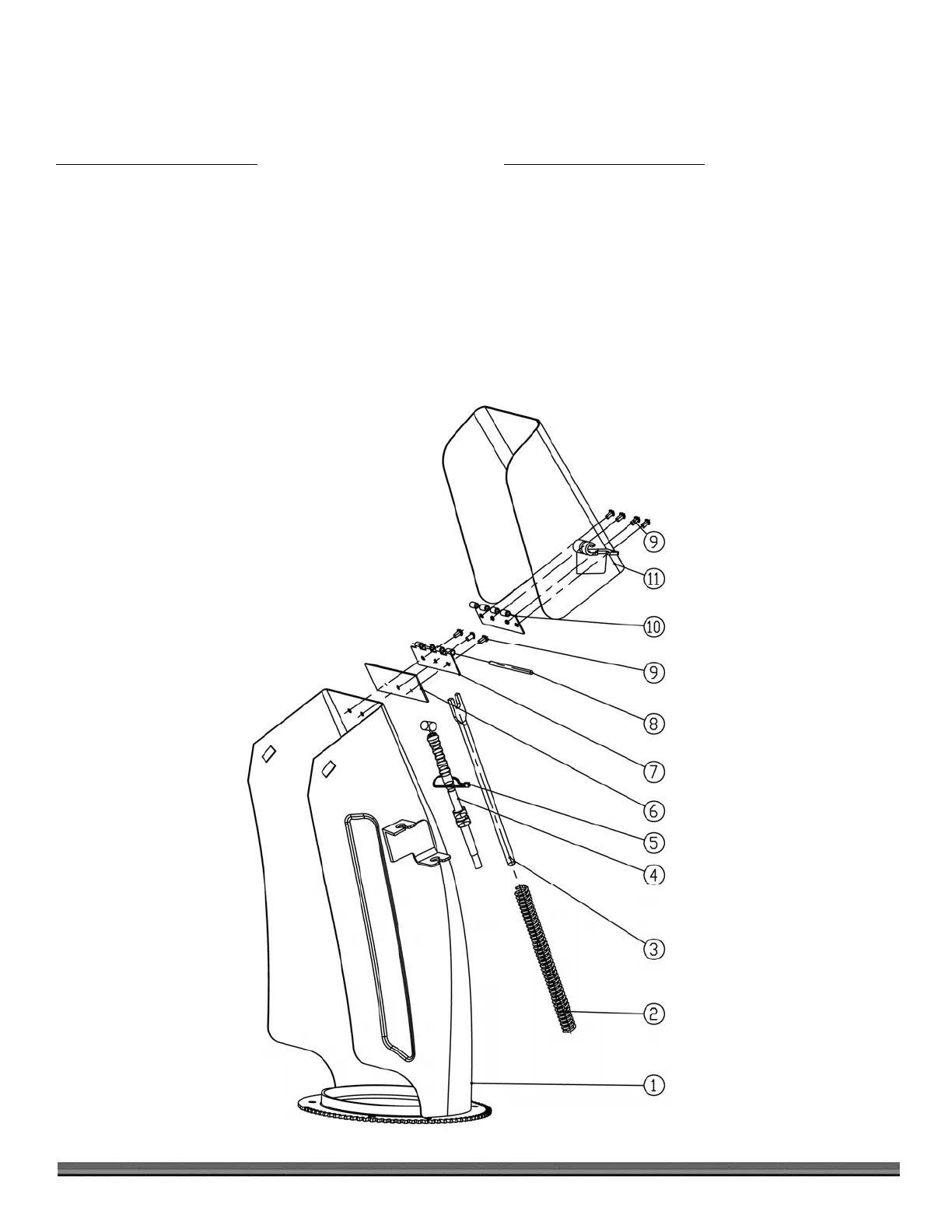

Parts List and Schematic –CHUTE ASSEMBLY (all models)
Note: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
1 40226 Chute Welded (Pro-24)
40261 Chute Welded (Pro-28, Pro XL-30, Pro
MAX-34)
2 40227 Spring
, Chute Deflector
3 40228 Strut
, Chute Deflector
4 40229 Cable
, Chute Deflector
5 40230 Cable Tie 2.5x150
6 40231 Plate
, Chute Seal (Pro-24)
40262 Plate
, Chute Seal (Pro-28, Pro XL-30, Pro
MAX-34)
Ref# Part# Description
7 40232 Hinge, Lower Chute
8 40233 Hinge Axle Chute
9 40322 Rivet
, 4x10
10 40234 Hinge
, Upper Chute (Pro-24)
40263 Hinge
, Upper Chute (Pro-28, Pro XL-30,
Pro MAX-34)
11 40235 Chute Deflector (Pro-24)
40264 Chute Deflector (Pro-28, Pro XL-30, Pro
MAX-34)
