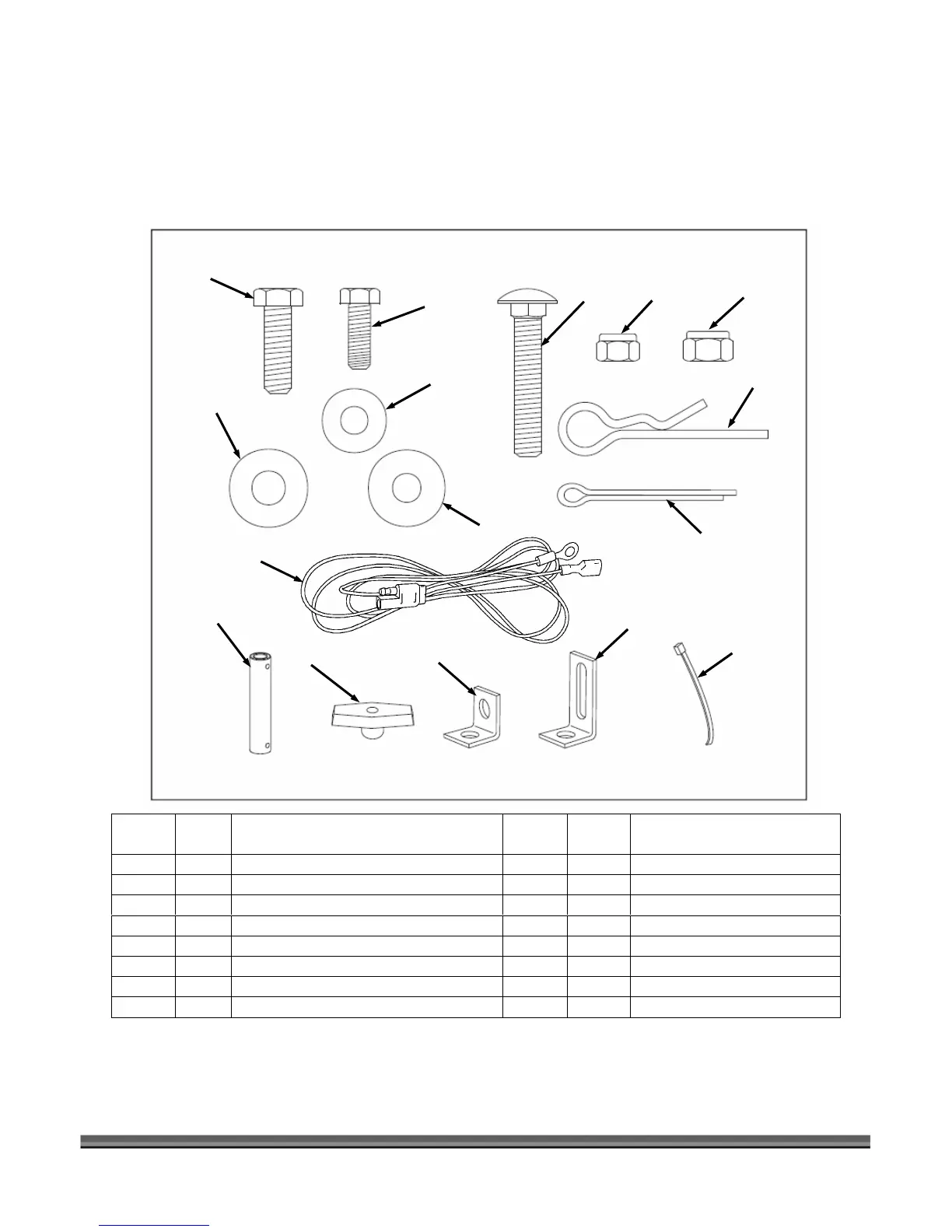

Hardware Package Contents
The item numbers listed below are the same item numbers listed in the parts list and schematic
diagram in the “Parts List and Schematic Diagrams” section of chapter 7. This reference will aid in the
proper location of parts as you assemble the spreader.
Parts not to scale
35
26
7
21
28
25
6
32
48
33
17
37
5
39
46
41
ITEM
NO.
QTY. DESCRIPTION ITEM
NO.
QTY. DESCRIPTION
35 4 Hex Bolt, 5/16" x 1" 25 1 Hair Pin Agitator
28 2 Hex Bolt, 1/4" x 3/4" 39 3 Cotter Pin, 1/8" x 1-1/4"
21 5 Carriage Bolt, 5/16" x 1-3/4" 37 1 Impeller Coupler
7 2 Nylock Hex Nut, 1/4" 17 5 Wing Knob
26 4 Nylock Hex Nut, 5/16" 33 2 Angle Bracket
6 2 Flat Washer , 1/4" 46 1 Mounting Clamp
32 8 Flat Washer, 5/16" 41 2 Nylon Tie
5 2 Nylon Washer 48 1 Spreader Cable
