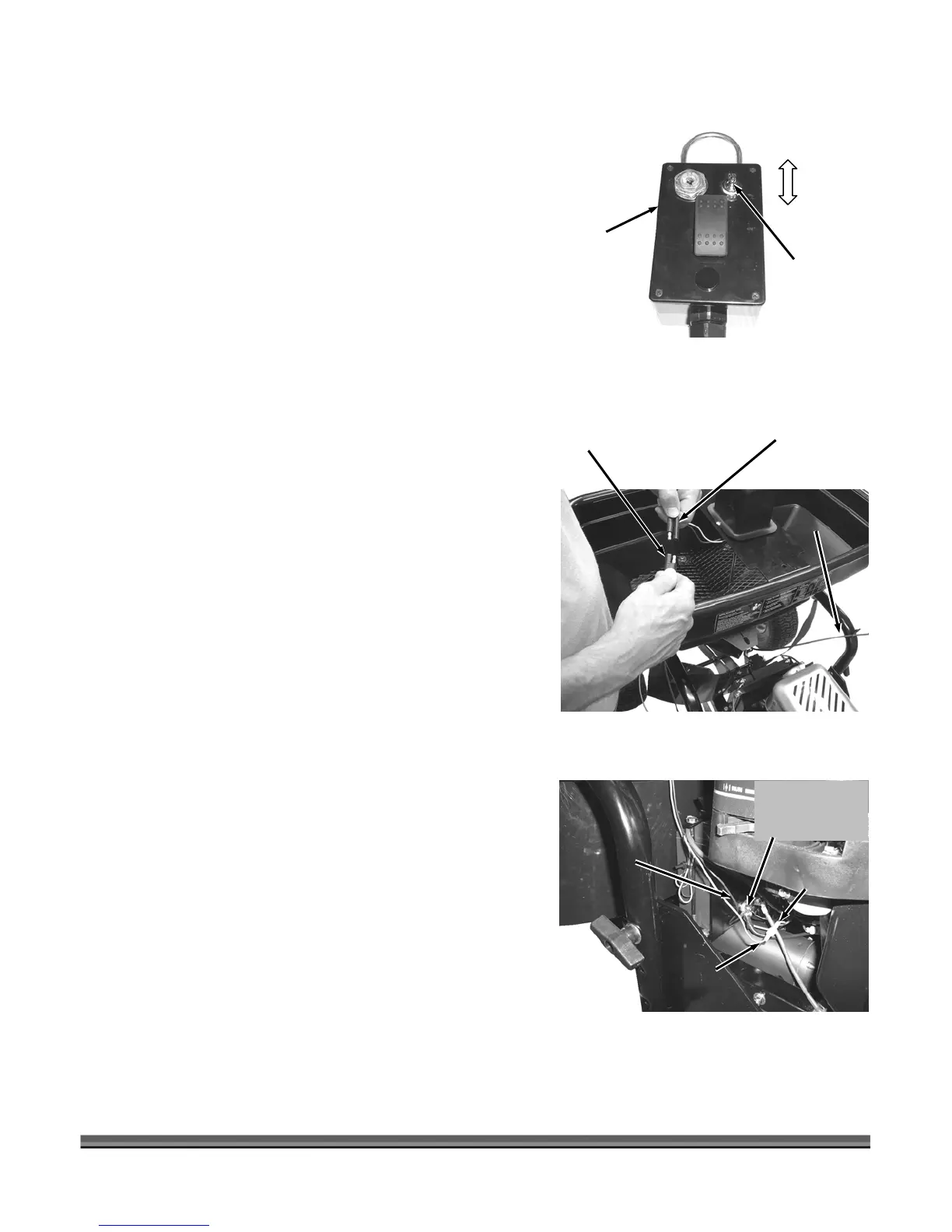

Wiring Instructions
Figure 12
“ON-OFF”
Switch
“ON
“OFF”
ROTO-
HOG
Control Box
Flow C
Cable
ontrol
Motor Mount
Assembly
Connectors
Tiller Wire Harness
Connector
1. Move the "ON-OFF" Switch on the ROTO-HOG
Control Box to the “OFF” position (Figure 12).
2. Attach the Spreader Cable Connector to the Motor
Mount Assembly Connectors (Figure 13).
Figure 13
3. Plug the Green Wire Connector from the Spreader
Cable into the Green Wire Connector from the Tiller
(Figure 14).
Green Wire
rom Tille
Ground Stud on
Battery Mounting
Bracket
Black Wire
from
Spreader
Cable
Green Wire
from Spreader
Cable
4. Remove the Nylock Nut from the Ground Stud on the
Battery Mounting Bracket.
5. Install the Black Wire Terminal from the Spreader
Cable onto the Ground Stud and reinstall the Nylock
Nut.
6. Use the Nylon Ties provided to safely secure the
wiring and Flow Control Cable away from hot engine
parts, rotating parts and pinch points.
Figure 14
CALL TOLL FREE 1-800-DR-OWNER 11
