Installing the Culti-packer

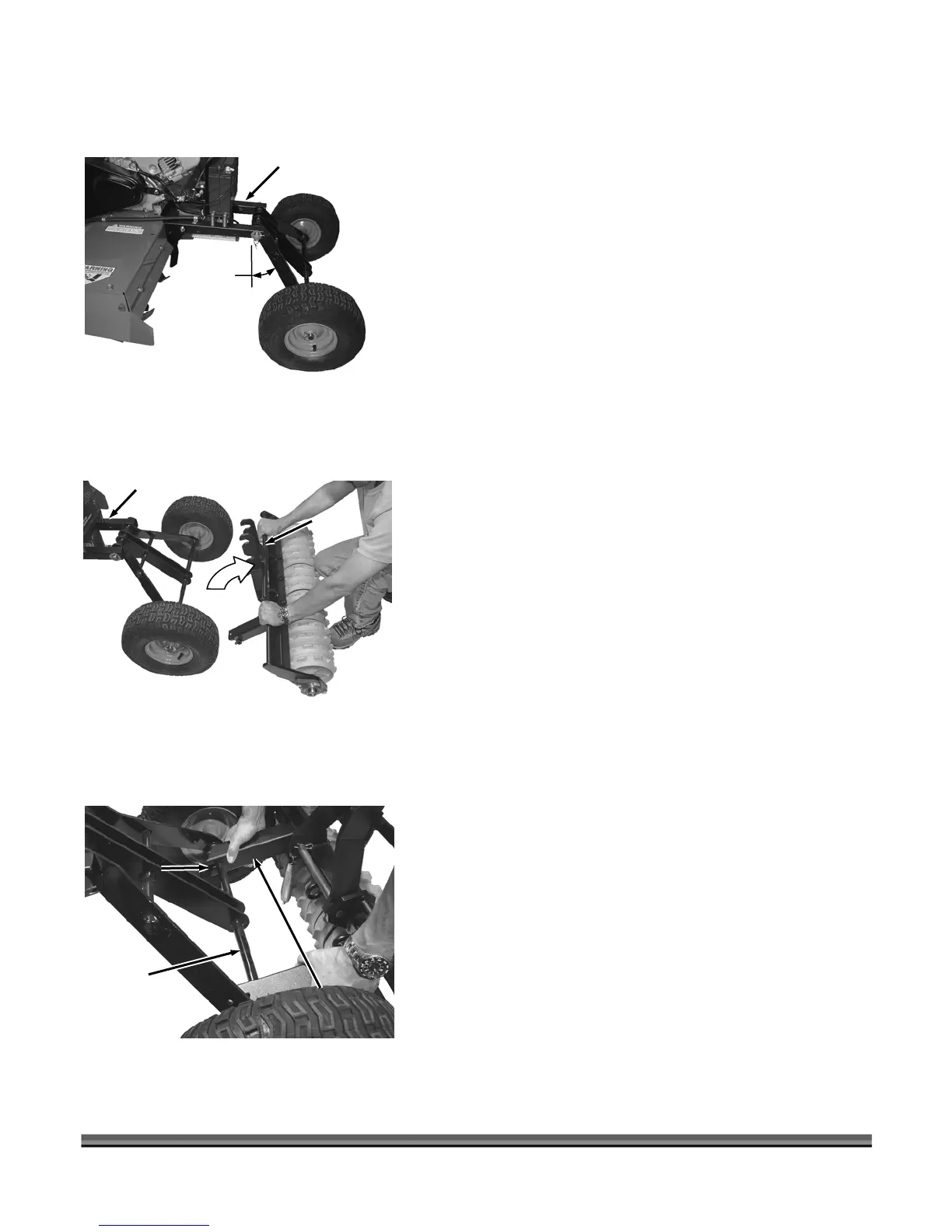

1. Rotate the ROTO-HOG Power Tiller Wheels to their
halfway position with the ROTO-HOG Control Box
(Figure 21).
ROTO-HOG
Power Tille
r
Set at
approx.
45
°
Figure 21
2. Position the Culti-packer at the rear of the Tiller near
the wheel axle (Figure 22).
16 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
3. Rotate the Hook Assembly away from the Tiller.
4. Slide the Slotted Tubes of the Frame Assembly onto
the Lower Wheel Axle of the Tiller until the Axle is
seated into the slot base of both Slotted Tubes (Figure
23).
Tiller
Hook
A
ssembl
y
Figure 22
Slot
Slotted Tube/
Culti-packer
Frame Assembly
Lower Wheel
Axle of Tiller
A
ssembl
y
Figure 23
