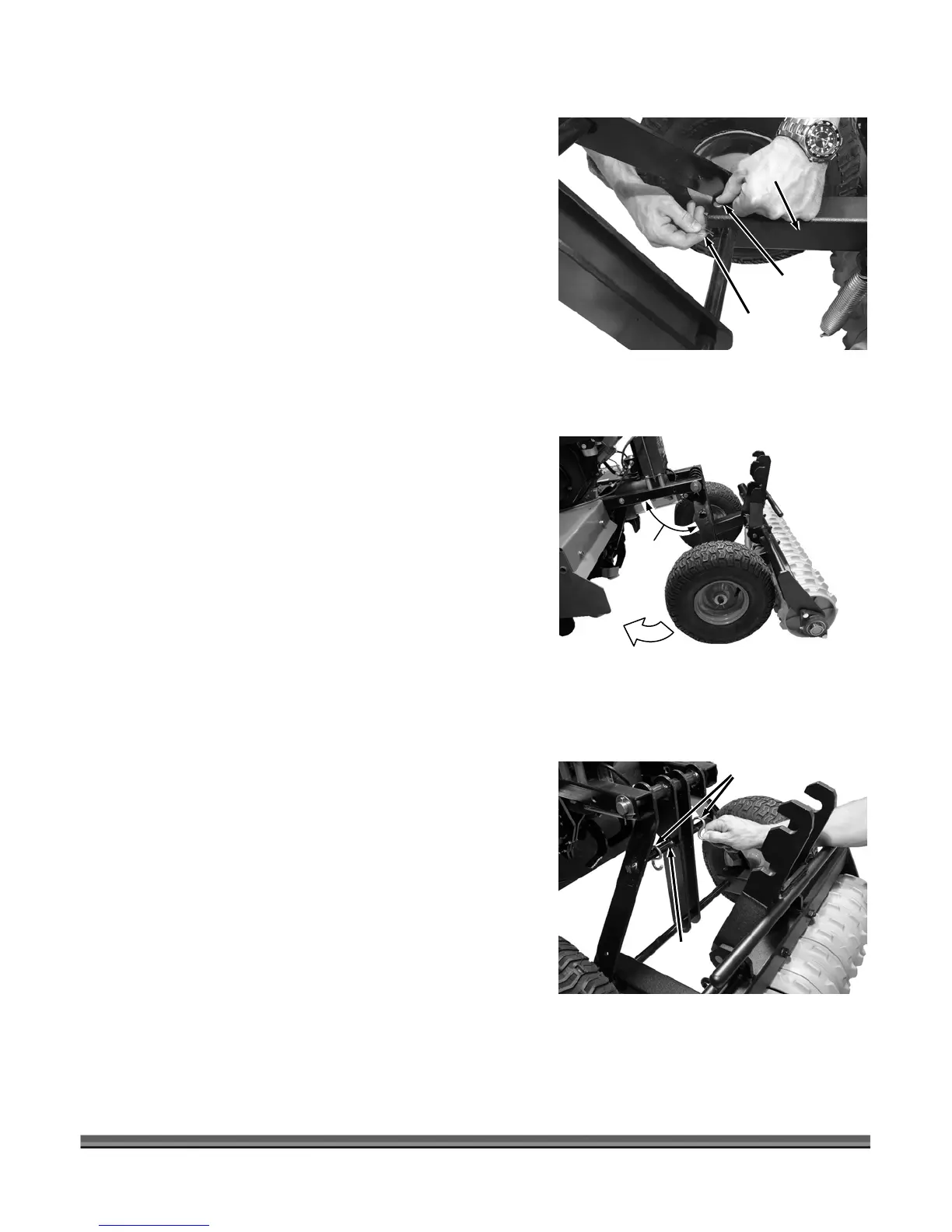

5. t the Clevis Pins into the holes at the ends of the
Slotted Tubes from the top and secure the Clevis Pins
with Hairpin Clips (Figure 24).
6. Use the ROTO-HOG Control Box to Raise the Tiller
Tines to their uppermost position (Figure 25).
7. Place the “S” Hooks onto the Support Rod on the
Tiller Wheel Frame Assembly (Figure 26).
NOTE: The “S” Hooks have a large and small end. The large
end is for the Support Rod and the small ends are for
the Springs to attach in the next step.
Inser
Figure 25
approx.
90°
Figure 26
Support
Ro
d
“S” Hook
s
Figure 24
Hairpin
Cli
p
Clevis Pin
Slotted
Tube
