24 Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n
Overview

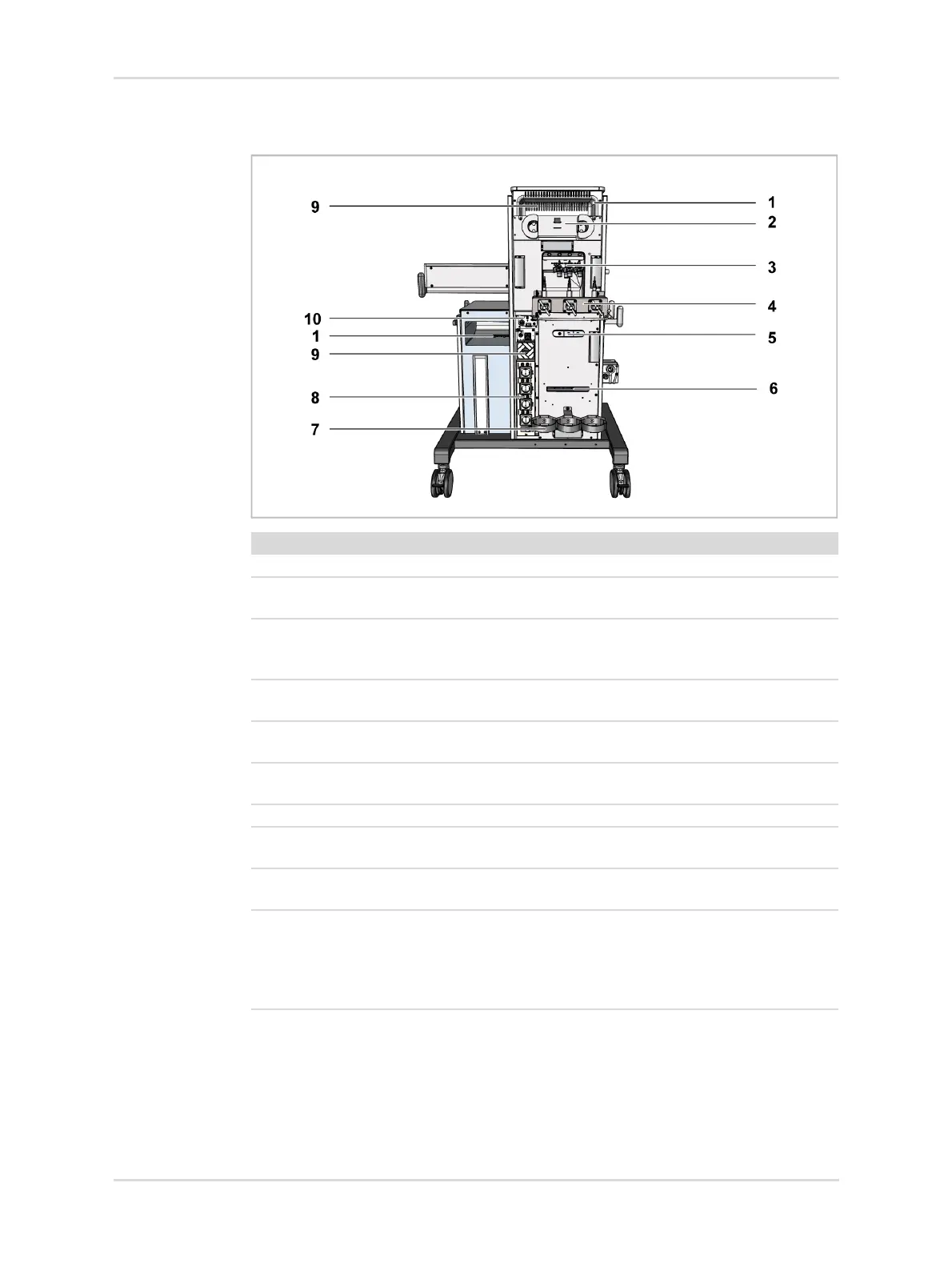

3.1.7.2 Version with pin-index connector for suspended gas cylinders (option)
36471
No. Designation Description
1 Storage compartment Can be used as storage space.
2 Holder for hoses and cables Used for storing and winding up central sup-
ply hoses and cables.
3 Gas supply block Provides connectors for gases from the
central gas supply system and for gas cylin-
ders.
4 Hanger yoke system (option) Enables the connection of gas cylinders
with a pin-index connector.
5 Strain relief for compressed
gas hoses
Protects the compressed gas hoses from
loosening inadvertently.
6 Vent Discharges warmed air from the device into
the environment.
7 Gas cylinder holder (option) Secures the gas cylinders.
8 Auxiliary power sockets
(option)
Allow other devices to be connected.
9 Ventilation slot Feeds ambient air to the device for ventila-
tion.
10 Connectors Provides connectors for power cable,
potential equalization, and interfaces. Used
for data exchange between external
devices, additional components, and net-
works.
