Assembly and preparation

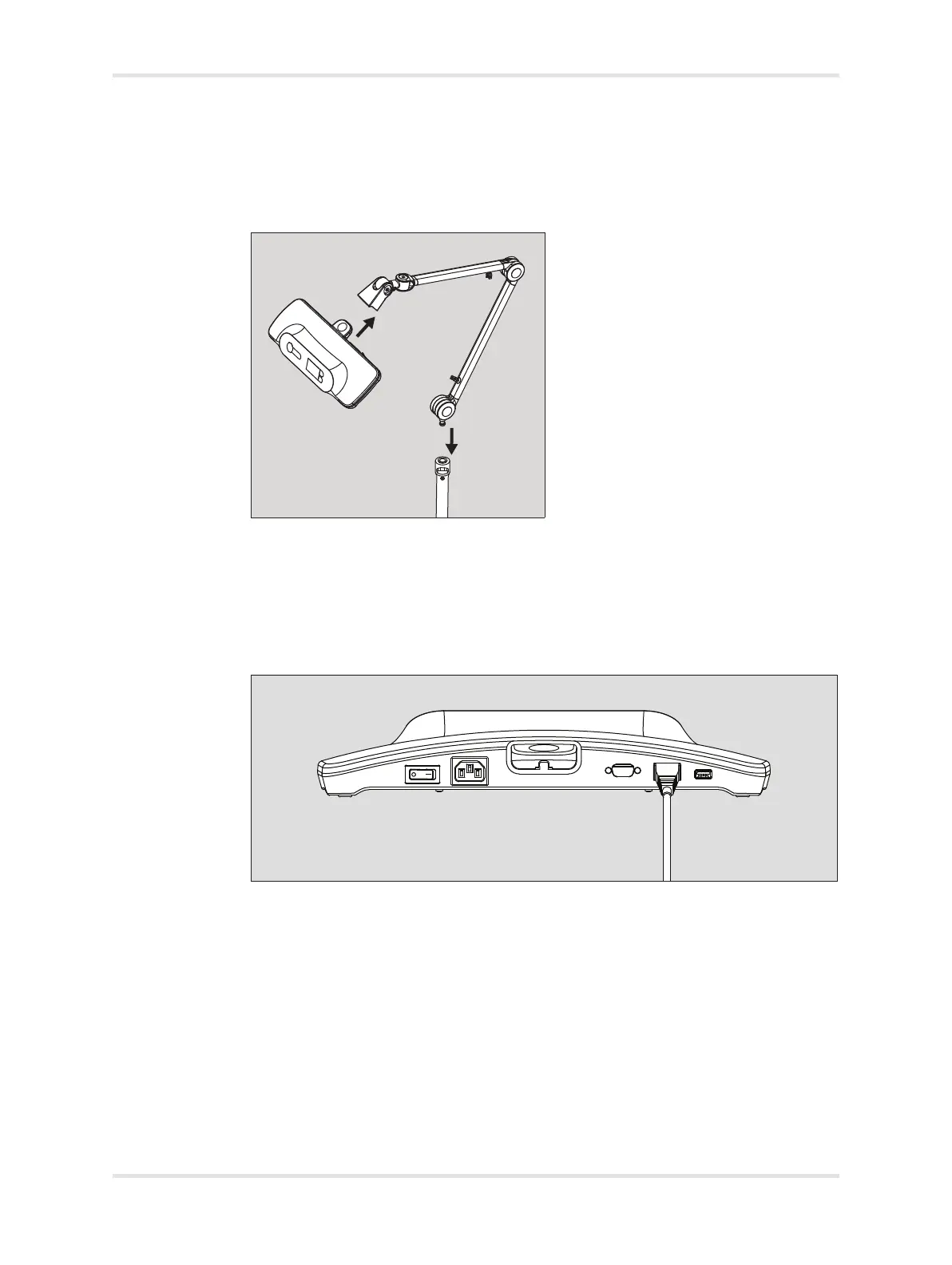

5 Insert the post (E) on the bottom of the spring arm into the trolley pole. Ensure
that the arm is seated properly, and then tighten the tightening knob (F) on the
trolley to secure the arm.
6 Insert the quick-connect plug (G) on the phototherapy light into the arm socket
(H) until it audibly clicks into place.
6.6 Installing the optional radiometer
Plug the radiometer cable into the receptacle (A) on the rear of the phototherapy
light. Keep the radiometer in a convenient place until needed. On trolley versions,
you may attach the radiometer to the trolley metal pole via the magnets on the
radiometer rear cover.
006
E
F
G
H
051
A
