72 Instructions for use BiliLux
Technical data

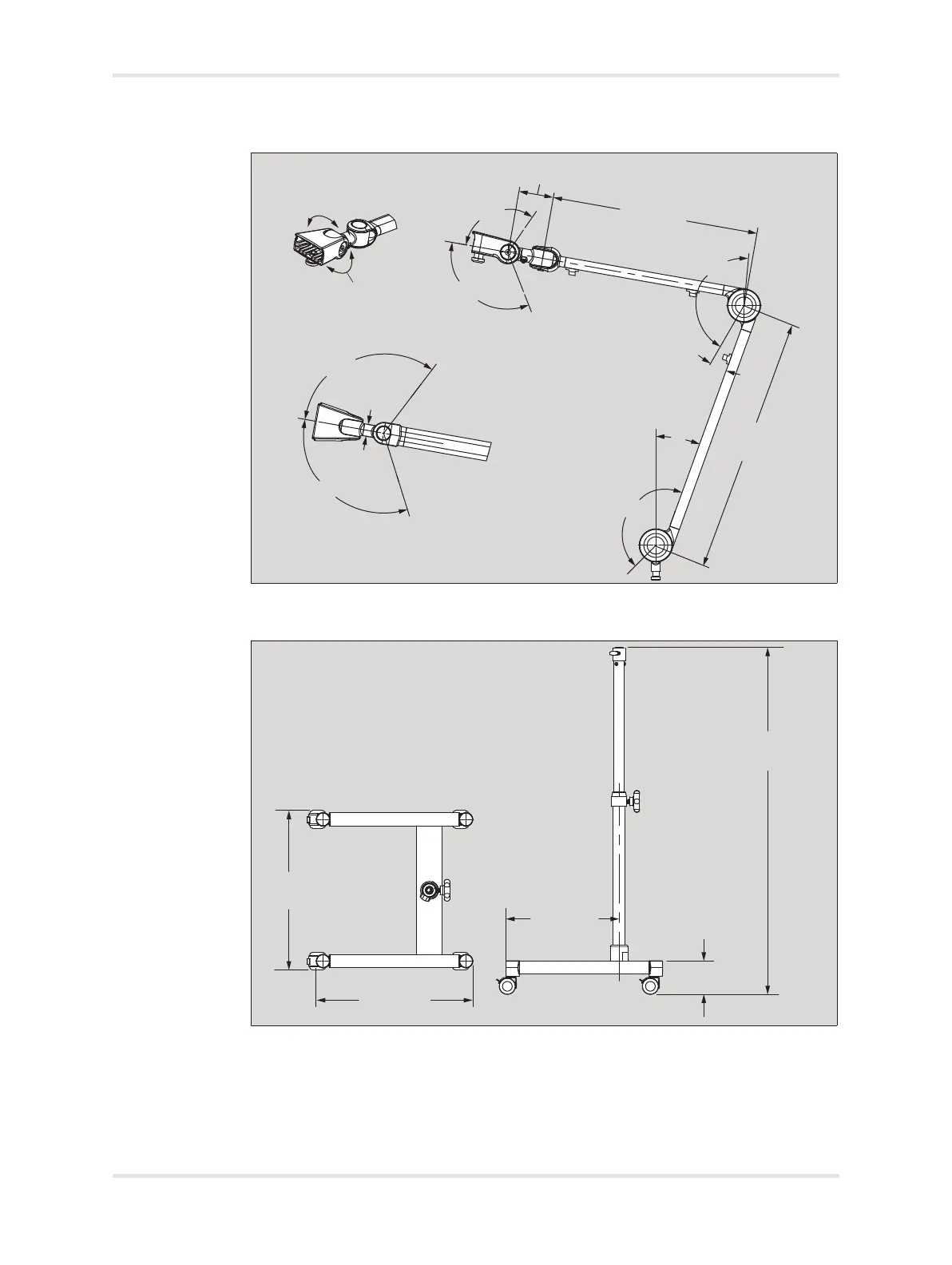

14.2.1 Spring arm dimensions
14.2.2 Trolley dimensions
040
110°
120°
155°
10°
20°
155°
360°
6.1 cm
(2.4 in)
45.2 cm
(17.8 in)
45.2 cm
(17.8 in)
115°
115°
Ø22
041
126 cm (49.6 in) MAX
84 cm (33.1 in) MIN
48.4 cm
(19.1 in)
49.5 cm
(19.49 in)
35.1 cm
(13.82 in)
12.0 cm
(4.7 in)
MAX
