Dräger Fabius plus XL User Manual

Supplement Fabius plus XL SW 3.n 9
Overview
External fresh-gas outlet
The section "Using the external fresh-gas outlet as
a common gas outlet" no longer applies.
The following section has changed:
Using the external fresh-gas outlet with
switch and ventilator lock (option)
The switch enables the simple switching of the
fresh-gas supply from the compact breathing
system to the non-rebreathing system.

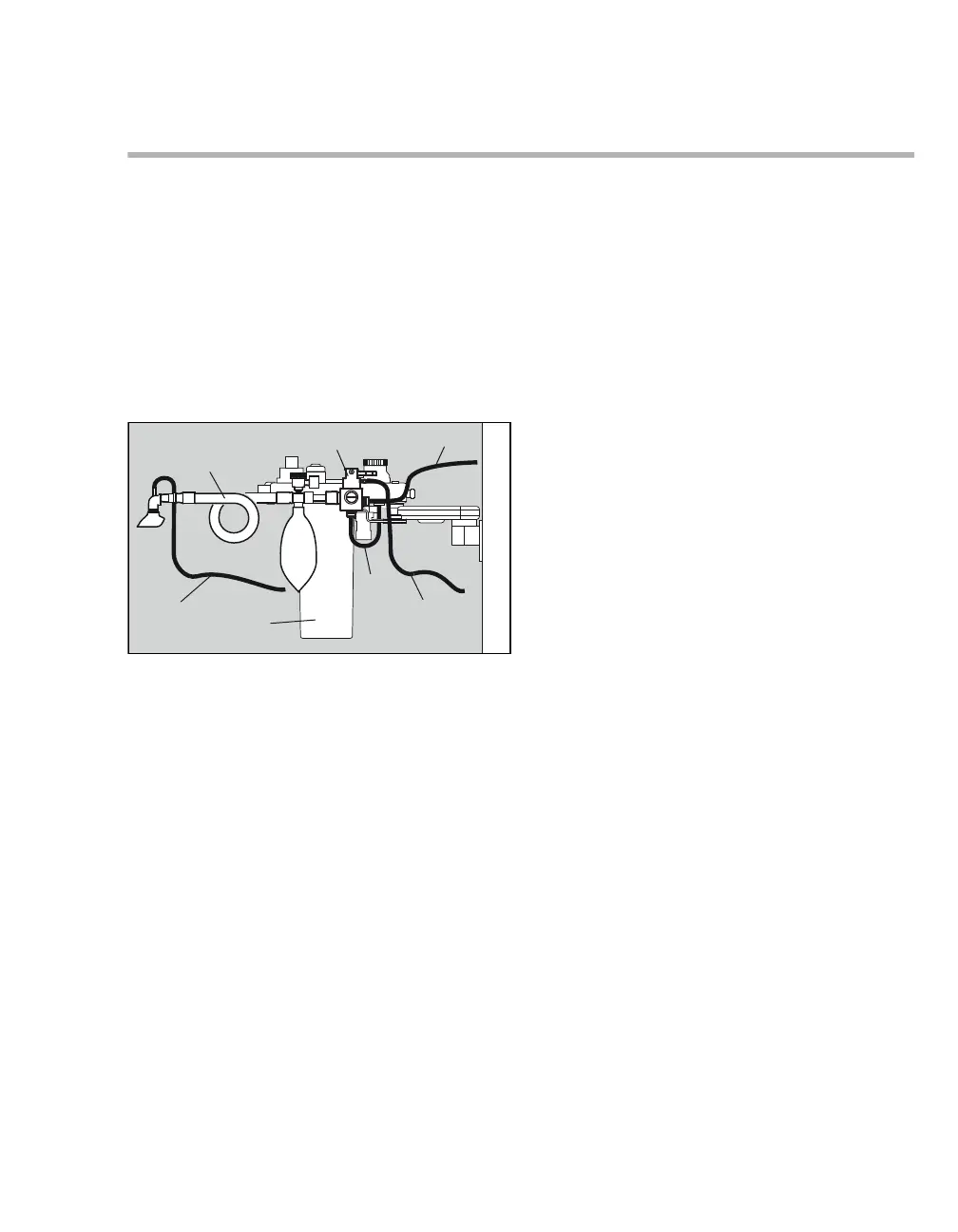

Overview
A External fresh-gas outlet with an additional
switch
B Long fresh-gas hose (on Fabius)
C APL bypass hose for the ventilator lock
D Short fresh-gas hose (on compact breathing
system)
E Compact breathing system
F Sample line
G Non-rebreathing system (e.g., Bain)
41644
A
B
C
D
E
F
G
