Dräger Interlock 5000/7000 29
Installation

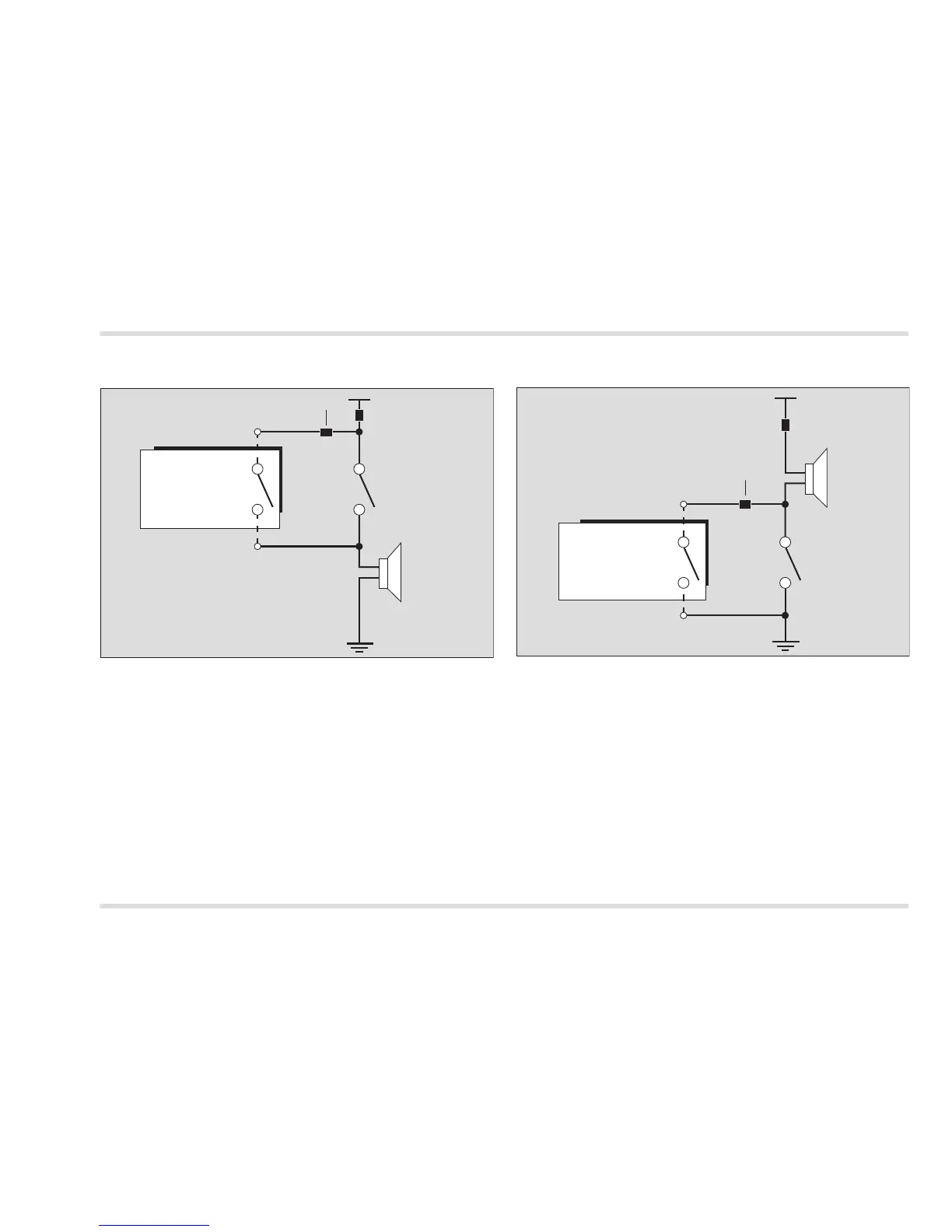

Connection alternative A: Connection alternative B:
00333352_en.eps
yellow
+12V/24 V
Horn switch
Horn
white
Positive switch
Fuse (optional)
Fuse
Dräger
Interlock® 5000/7000
Horn relay
00433352_en.eps
Dräger
Interlock® 5000/7000
Horn relay
+12V/24 V
Horn switch
Horn
white
yellow
Negative switch
Fuse
Fuse (optional)
