Dräger Interlock 5000/7000 31
Installation
3.9.2 Handset
To mount the handset in the vehicle, use the dedicated holster or the
self-fixing Velcro tape. Fixing with the Velcro tape is the preferred
option in situations where it is desirable for no mounting marks to
be left.
 Decide upon mounting location ensuring minimal obstruction by
the handset and easy accessibility for the driver.

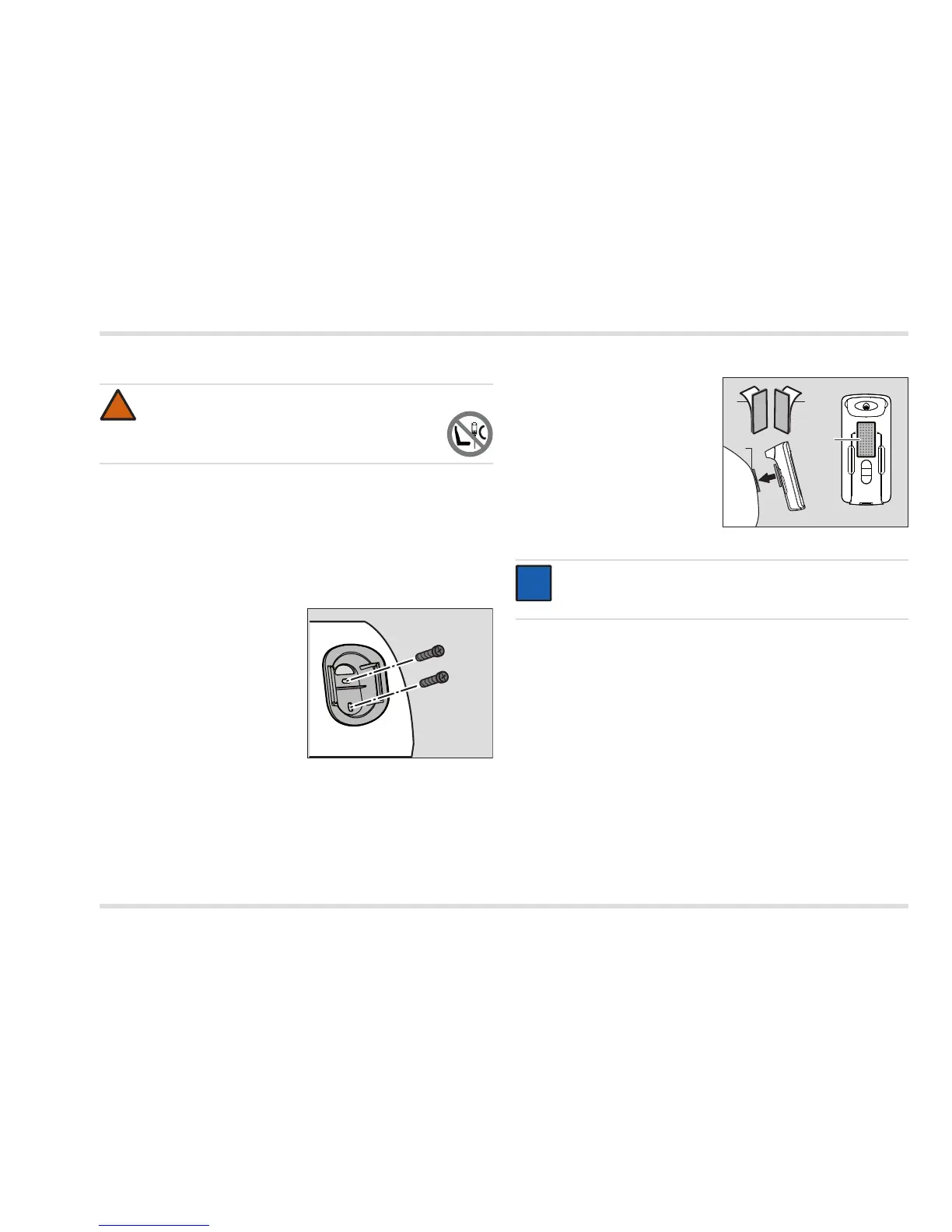

Fixing the holster for the handset

00733352.eps
Fix holster with screws. Ensure
adequate clearance behind
fixing screws so that they can
be screwed in far enough.
Fixing with Velcro tape
1.
00833352.eps
1
2
2
1
Remove self-adhesive
backing (1) of the hook-and-
loop tape.
2. Using the self-adhesive
backing, stick onto a smooth
surface in the vehicle (2).
3. Apply firm pressure for
10 to 15 seconds for secure
adhesion.
4. Fix handset with the Velcro
tape on the reverse side onto
the mounted Velcro tape.
3.10 Functional test
1. After installation, reconnect the vehicle battery.
2. Test the function of the device in line with the instructions for use.
3.11 Installation certificate
 After installation, complete the installation certificate contained in
the instructions for use.
WARNING
Do not install holster for the handset in front
of airbags.
!
A
I
R
B
A
G
NOTICE
The adhesive mounting is fully attached after approx.
36 hours. Do not load mounting before this time.
i
i
