Reprocessing instructions | Perseus A500 25
Reprocessing
3.5.3.1 Positioning the components in the load carrier
Depending on device configuration, it is possible that not all components will be
present.
● Position the components securely in the load carrier. Ensure the following:
– All surfaces and interior spaces can be flushed completely.
– The water can drain off freely.
● Required aids:
– Hose for flexible breathing bag arm (inner diameter 22 mm)
– Hose for absorber insert (inner diameter 22 mm)
– Blower mount

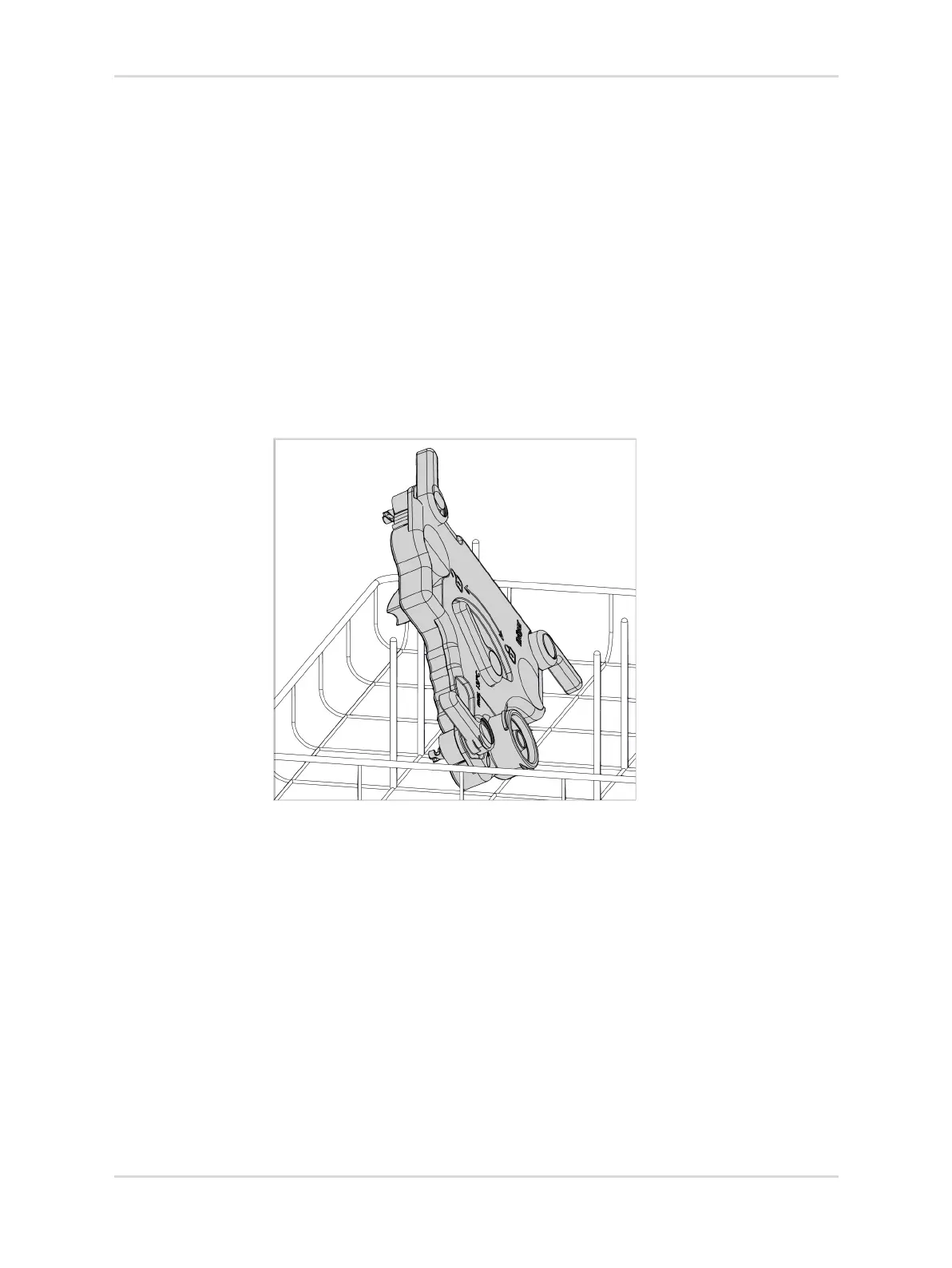

Upper part of the breathing system
● Position the upper part of the breathing system at a slight angle (shown as
example)
38566
