26 Reprocessing instructions | Perseus A500
Reprocessing

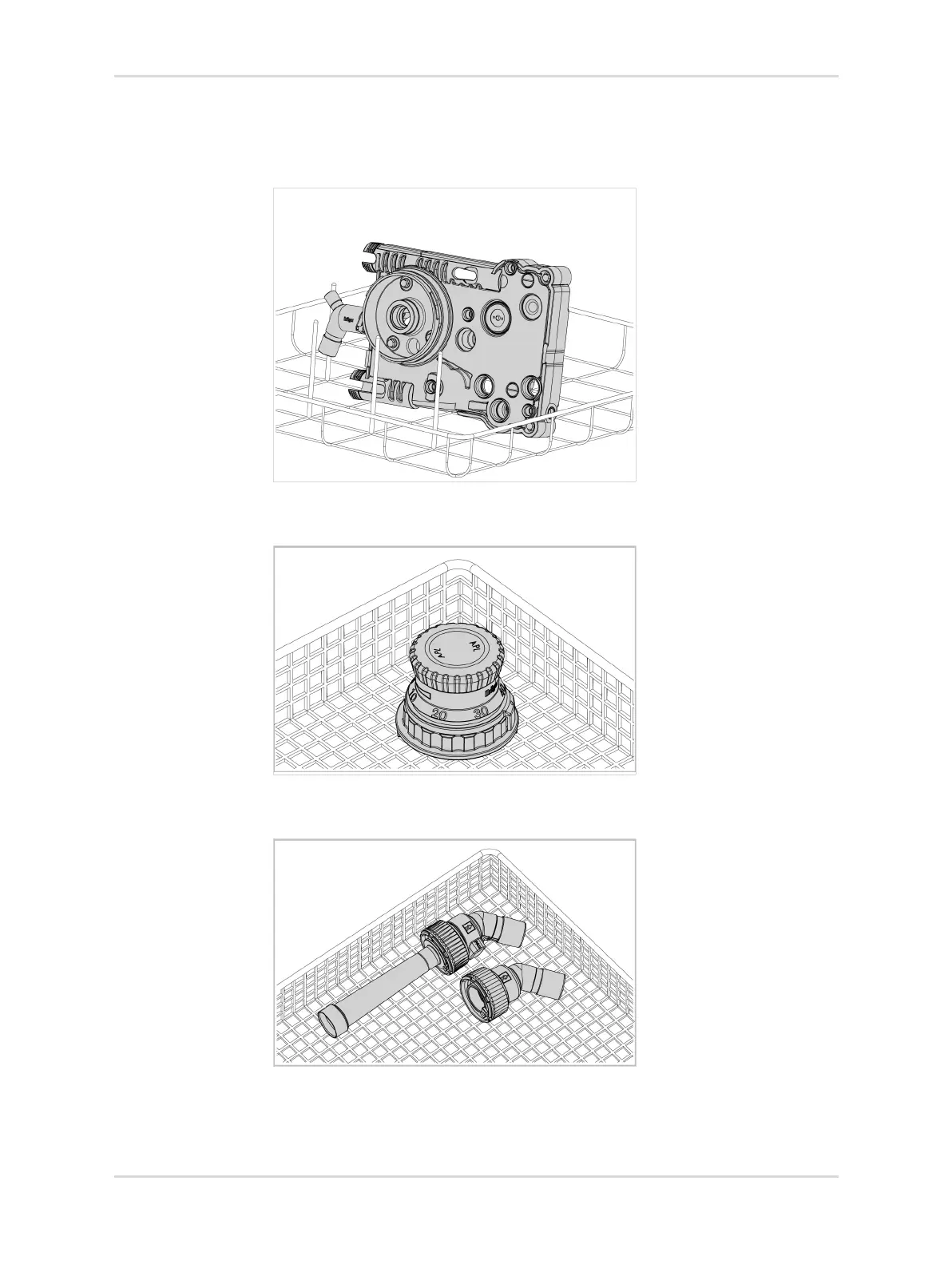

Lower part of the breathing system
● Position the lower part of the breathing system at a slight angle (shown as
example)
APL valve
● Positioning shown as an example
Inspiratory port and expiratory port
● Positioning shown as an example
