Connecting transmitters and measuring heads

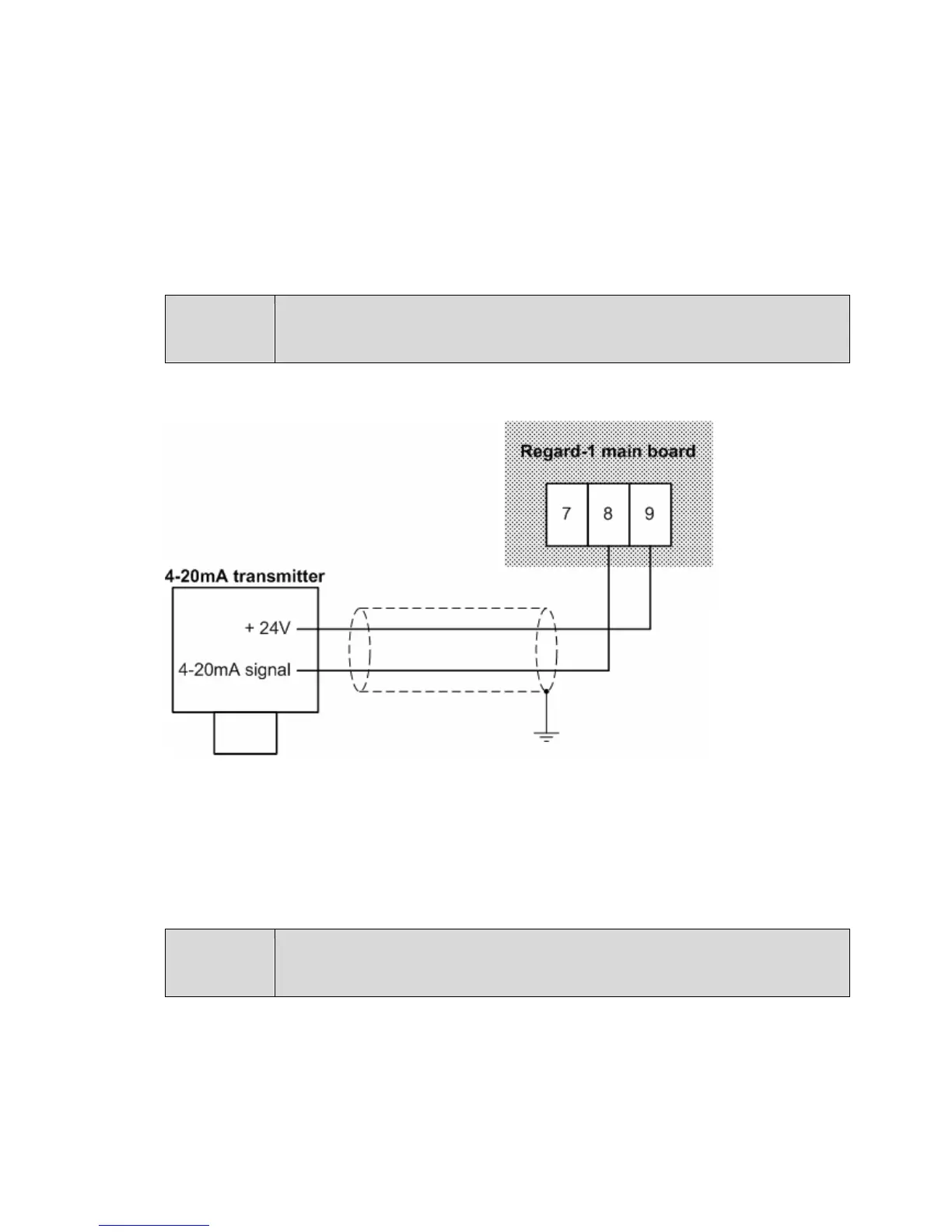

Two-wire 4-20 mA transmitter
NOTE
Use cable with braided copper screen.
Three-wire 4-20 mA transmitter
Only for a transmitter with 4-20 mA source output. Regard-1 will not work with a three-
wire transmitter that has a 4-20 mA sink output.
NOTE
Use cable with braided copper screen.
