Installation
Issue 5 - June 2005 Page 29 of 64 Pages
Output voltage and current
The voltage at the output decreases as the current drawn from the output increases.
Output
voltage
Current
available
22 V 30 mA
18 V 100 mA

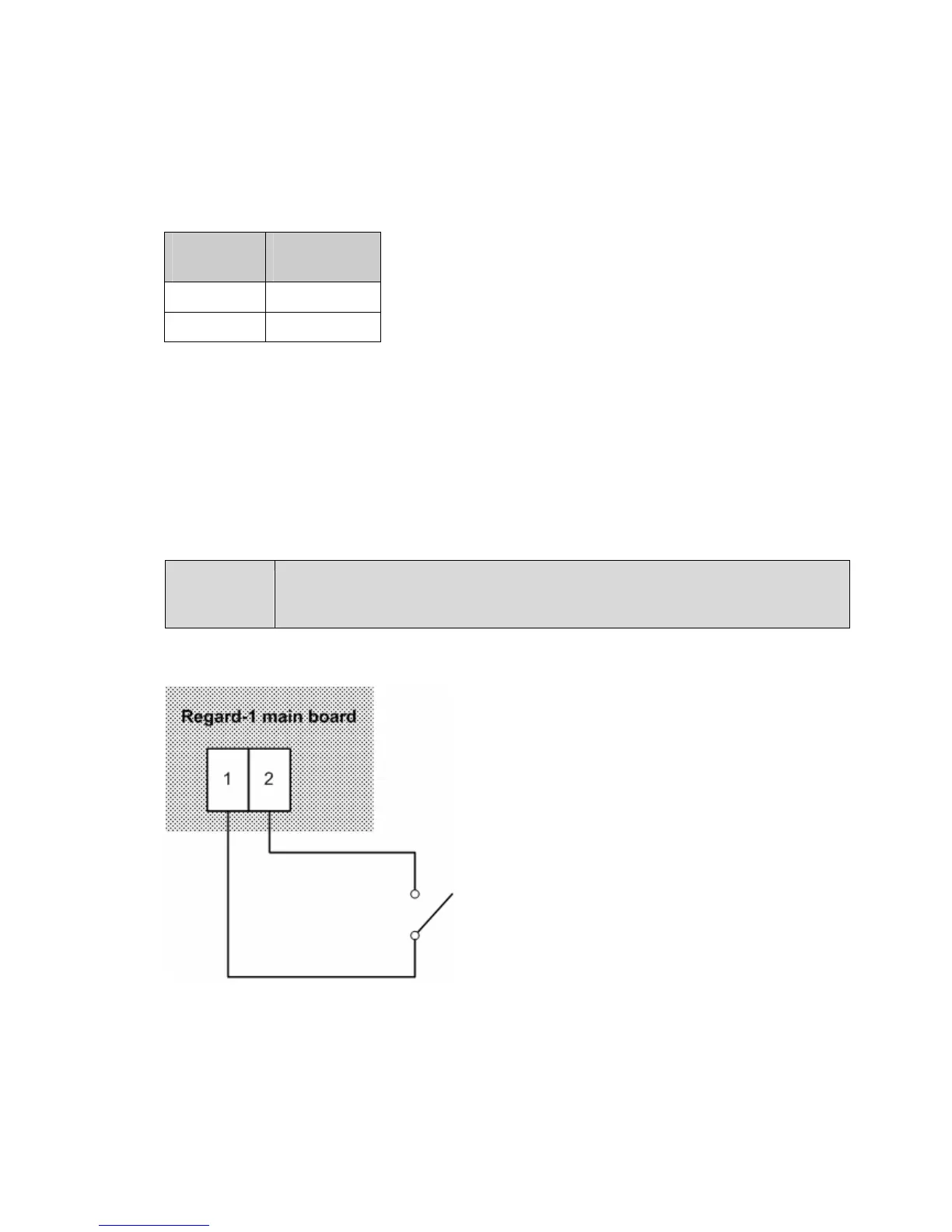

Remote reset input
To acknowledge and reset alarms remotely from the controller, connect a normally-open
switch to the remote reset terminals. Close the contacts momentarily to acknowledge /
reset alarm(s).
NOTE
Use cable with braided copper screen.
