Installation
Issue 5 - June 2005 Page 25 of 64 Pages

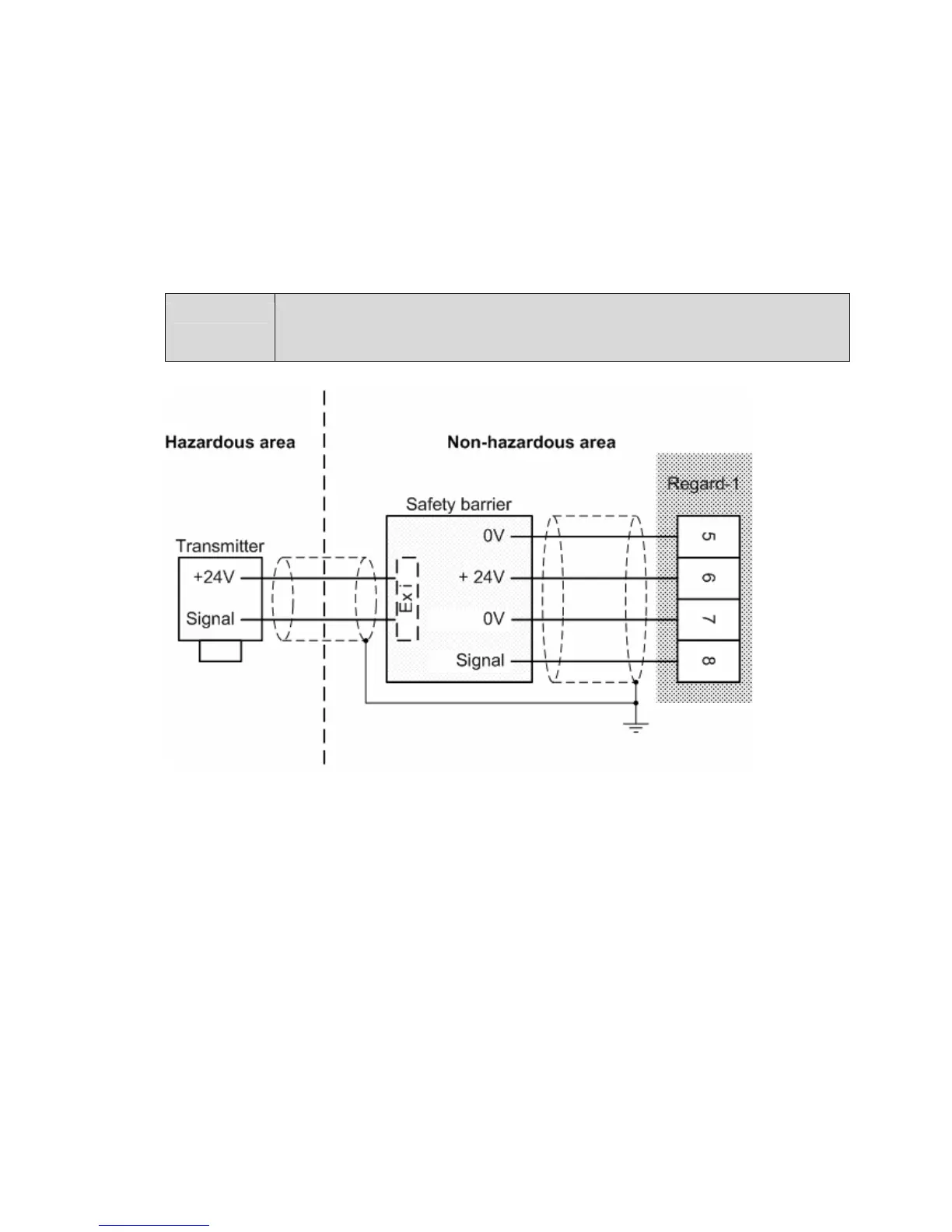

Two-wire 4-20 mA transmitter with safety barrier
The following diagram shows the general arrangement. Refer to specific instructions for
safety barrier and transmitter for connections between transmitter and barrier, and for
instruction for earthing of barrier, where necessary.
NOTE
Use cable with braided copper screen.
