24 V digital outputs for A1 and A2
NOTE
The digital outputs can be used to drive alarm devices directly.
Use cable with braided copper screen.

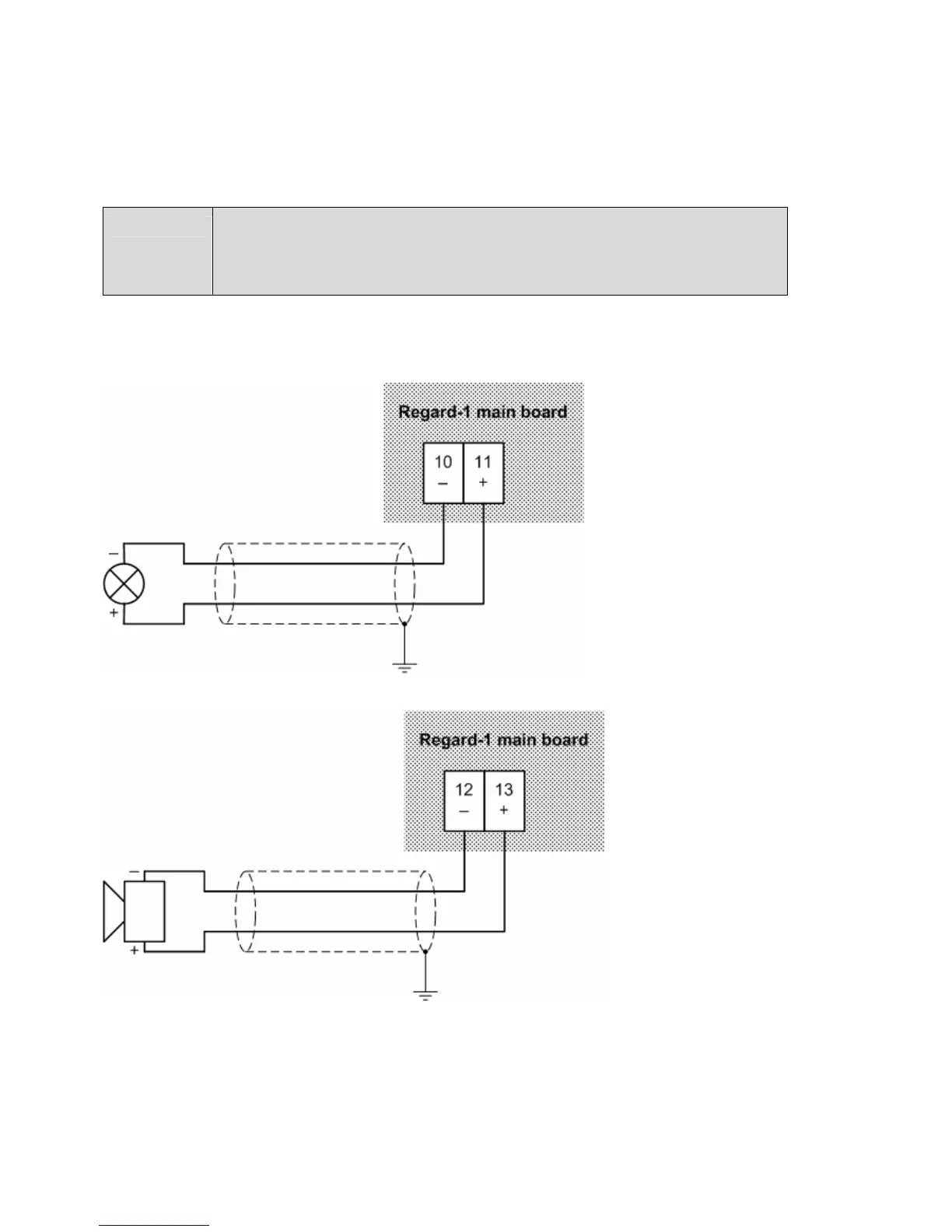

Example: flashing beacon activated by A1 alarm and klaxon activated by A2 alarm:
