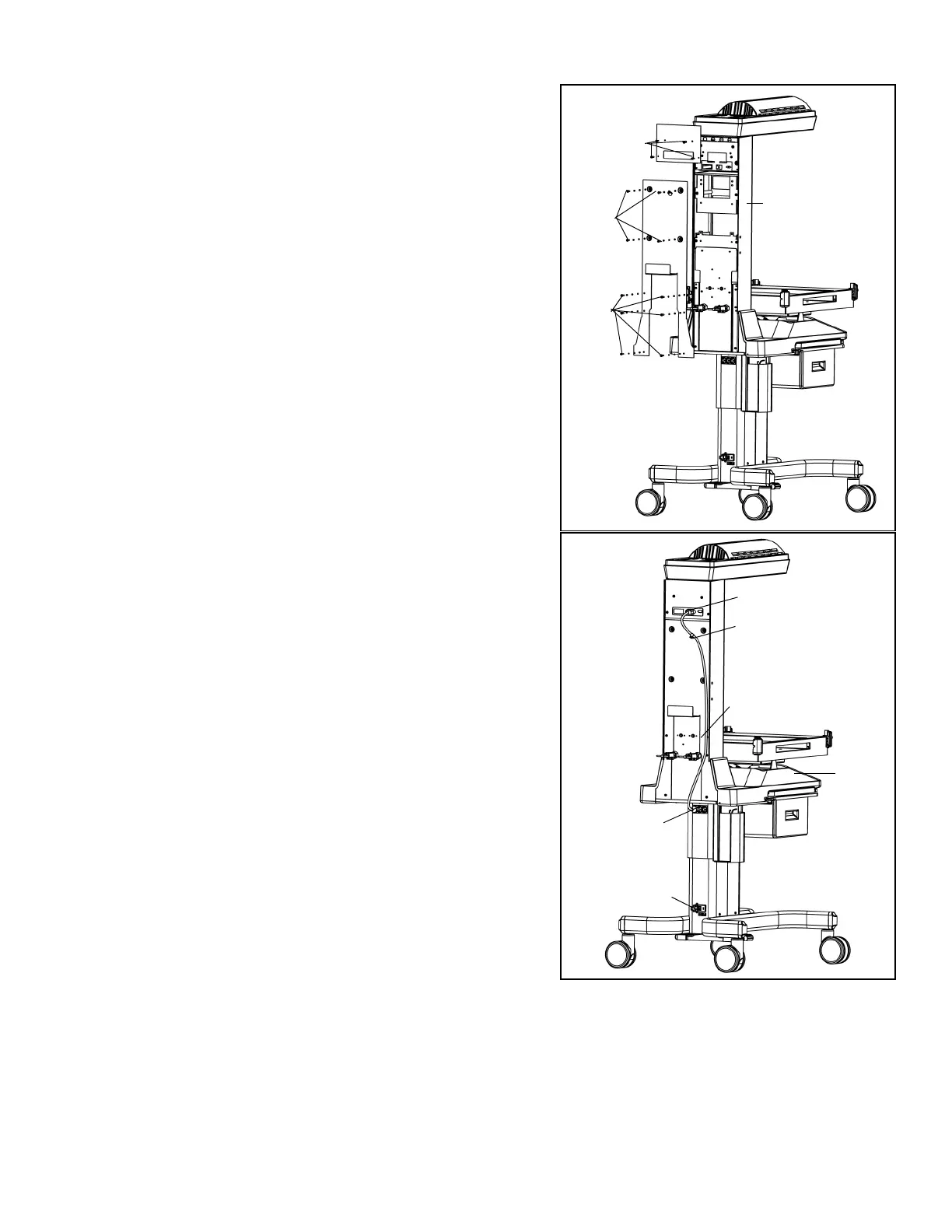

18. Secure the lower rear cover (S) to the upper post (D)
and the bassinet/cart assembly using the ten #10-32 x
3/8" screws (T).
19. Secure the upper rear cover (U) to the upper post using
the four #10-32 x 1/2" screws (V).
CAUTION:
To prevent removal of the controller chassis with
the AC power switched on, secure the line cord to
the back cover. Failure to do so could result in
equipment damage.
20. Install the power cables:
a. Connect the line cord to the power connector (W)
on the lower rear of the bassinet/cart assembly (F).
b. Connect the power cable between the power
receptacle (X) on the center rear of the
bassinet/cart assembly (F) and the power connector
(Y) on the controller.
c. Using the cable clamps and the #8-32 x 3/8" screws
(T) and the #10-32 x 3/8" screws (Z), secure the
power cable to the lower rear cover.
S
D
T
T
U
V
D
F
F
W
X
Y
Z
T
To Next Page
